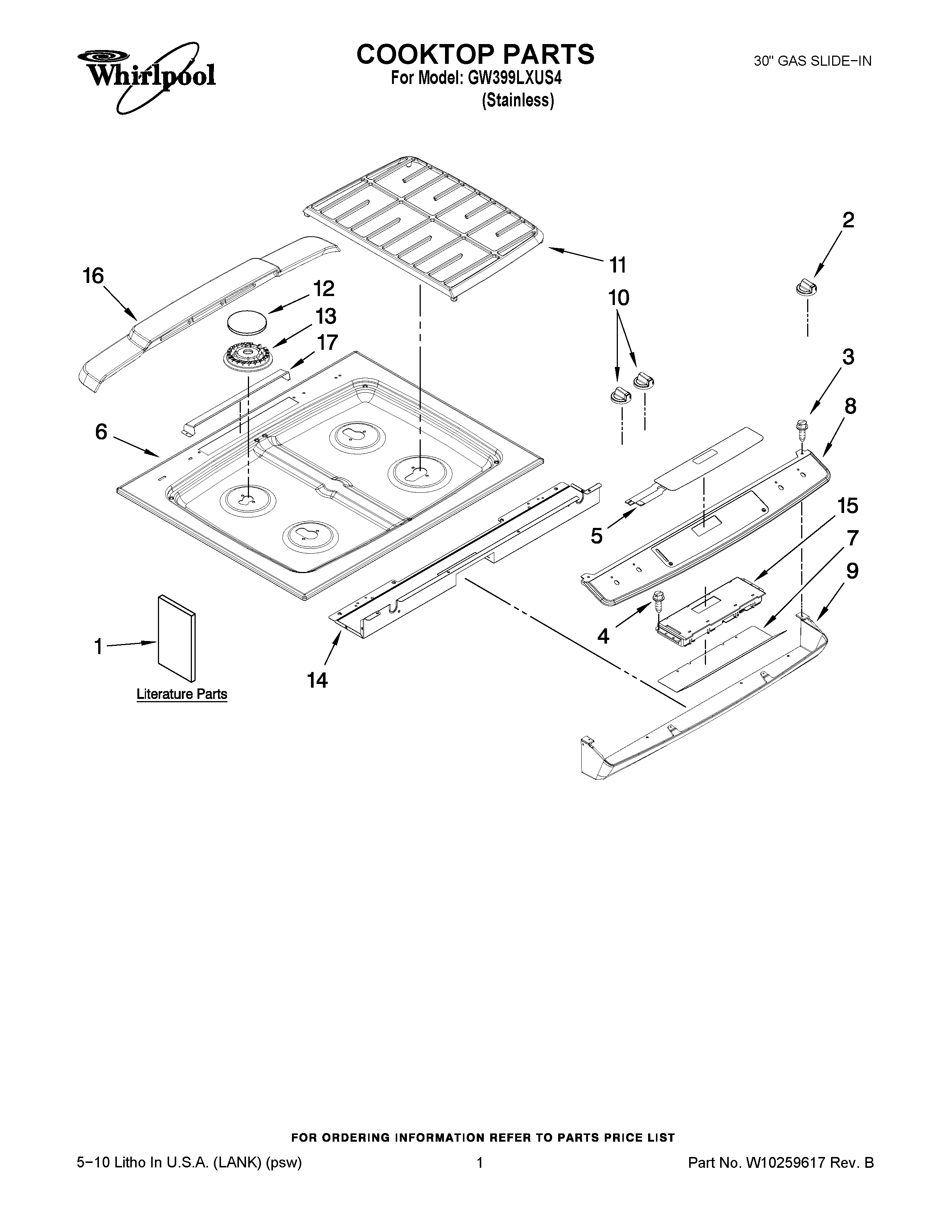

GW399LXUS4 01 – COOKTOP PARTS

Products

PositionProduct
1SAFER COOKING TIPS (ENGLISH
1Safer Cooking Tips (French)
1Owners Manual
1Installation Instructions
2Knob, AccuSimmer (Black)
3Screw
4Screw
5WPW10207933 Whirlpool Membrane Switch
6Cooktop (Black)
7Shield, Control
8PANEL, CONTROL
9PANEL,CONTROL(LWR) (BLACK)
10KNOB, VALVE (BLACK)
11GRATE, BURNER (BLACK)
12WPW10183370 Whirlpool Burner Cap
12WPW10183369 Whirlpool Burner Cap
12WPW10183368 Whirlpool Burner Cap
12WPW10183371 Whirlpool Burner Cap
13WPW10406243 Whirlpool Burner Head Auxiliary 6K
13WPW10406797 Whirlpool Range Burner Base (12K & 9.2K)
13WPW10406878 Whirlpool Burner Base (16K)
14SUPPORT, CONTROL PANEL
15Control, (ERC)
16Cover, Vent (Black)
17Baffle, Vent Cover
