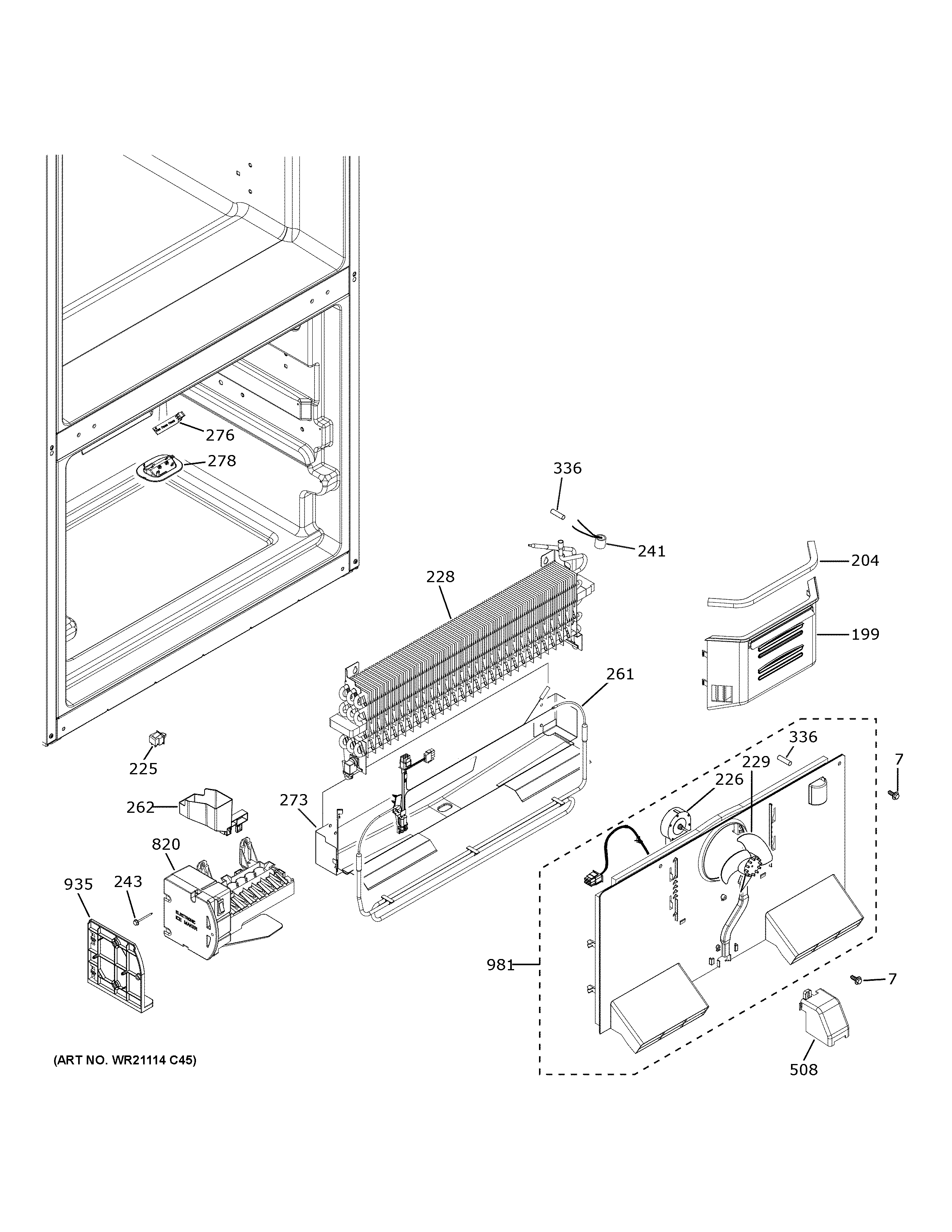

GWE19JGLWFBB FREEZER SECTION

GWE19JGLWFBB FREEZER SECTION

Written by

in

GWE19JGLWFBB FREEZER SECTION

Products

PositionProduct
7WR01X10606 GE Refrigerator Screw 8-18 CA HX 1/2 S
199WR17X40007 GE Refrigerator Evaporator Cover & Fan
204WR14X24804 GE Refrigerator Adhesive Foam Strip
225WR23X39269 GE Light Switch
226MOTER DC EVAP FAN
228WR85X40008 GE Refrigerator Evaporator
229EVAPORATOR FAN BLADE
241THERMOSTAT DEF
243WR01X10626 GE Refrigerator Screw 8-18 AB HXW 5/4 S
261DEFROST HEATER & HARNESS
262WR29X24823 GE Refrigerator Cup Fill Assembly
273WR17X24814 GE Drain Assembly Trough
276WR55X24870 GE Refrigerator Board LED Light Assembly
278WR02X38285 GE Light Shield
336WR55X10025 GE Refrigerator Temperature Sensor
508WR02X40125 GE Refrigerator Connector Cover
820ICEMAKER
935WR02X24817 GE Refrigerator Support Im
981WR49X40245 GE Evaporator Cover & Fan
