GWE23GMNDES FREEZER SHELVES

GWE23GMNDES FREEZER SHELVES

Written by

in

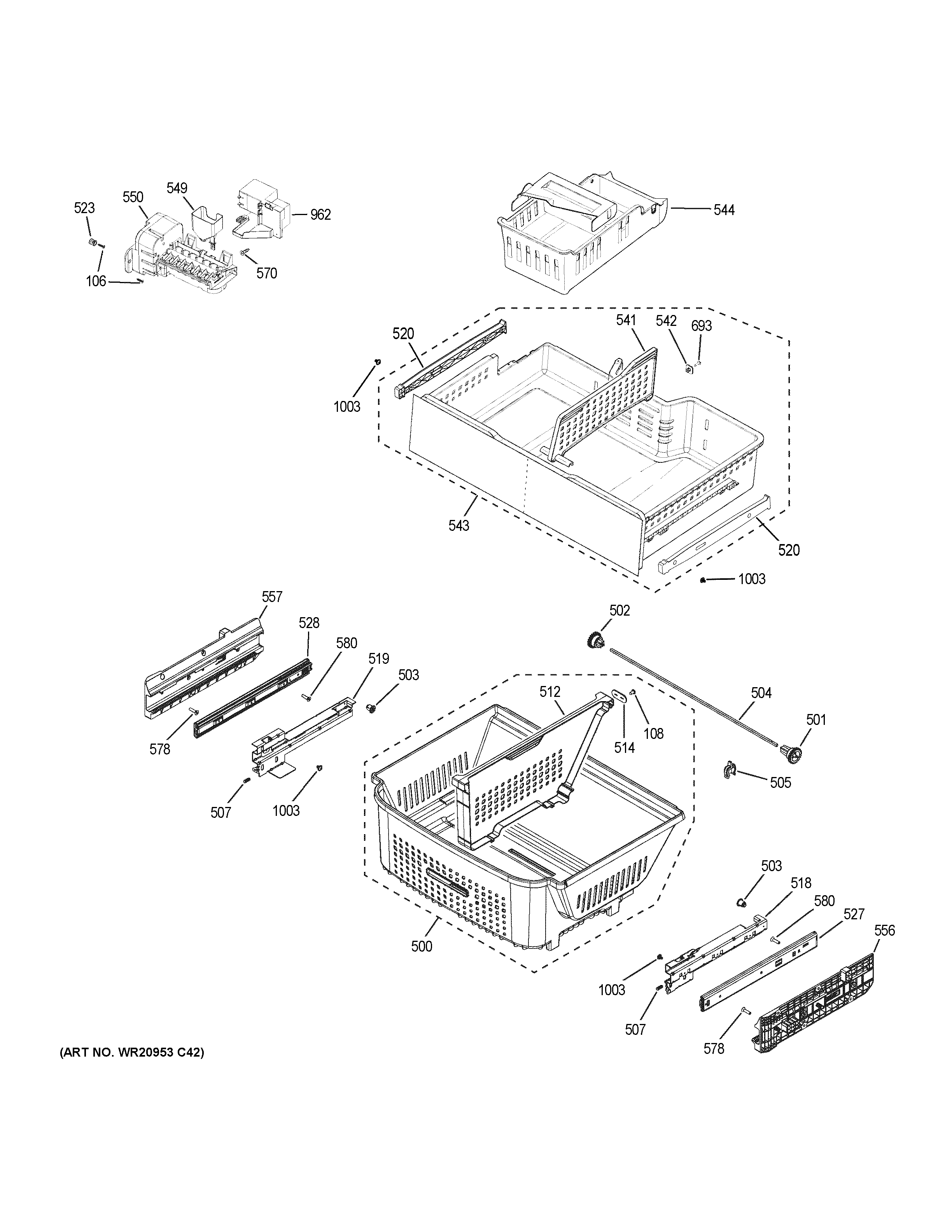

GWE23GMNDES FREEZER SHELVES

Products

PositionProduct
106WR01X11054 GE Refrigerator Screw 8-18 FLP 1/2"
108WB1X5364 GE Oven Mounting Screw
500WR21X10254 GE Refrigerator Basket Bottom Assembly
501WR02X13629 GE Refrigerator Lower Drawer Right Hand Gear
502WR02X13630 GE Refrigerator Lower Left Hand Drawer Gear
503WR02X13631 GE Refrigerator Connector Gear Pinion
504WR02X13765 GE Refrigerator Crossbar Pinion
505WR01X11023 GE Refrigerator Retainer
507WR01X11036 GE Refrigerator Door Screw Set
512WR02X13764 GE Refrigerator Bottom Divider Basket
514WR02X13674 GE Freezer Slide Support
518WR17X13194 GE Refrigerator Bracket Slide Right Hand
519WR17X13195 GE Refrigerator Bracket Slide Left Hand
520WR72X27074 GE Refrigerator Glide Support Left Hand & Right BIS
523WR02X23082 GE Grommet
527WR72X10452 GE Refrigerator Slide Lower Right Hand
528WR72X10454 GE Refrigerator Lower Left Freezer Slide
541WR02X23046 GE Refrigerator Divider Basket Upper
542WR02X13706 GE Refrigerator Stopper Divider Upper
543WR32X26450 PS BIS BASKET & GLIDE with 2
544WR30X23327 GE Ice Bucket Assembly
549WR30X25485 GE Refrigerator Ice Fill Cup
550ICEMAKER
556WR72X10451 GE Refrigerator Slide Holder Right Hand
557WR72X10453 GE Refrigerator Slide Holder Left Hand
570WR01X10626 GE Refrigerator Screw 8-18 AB HXW 5/4 S
578WR01X11012 GE Refrigerator Screw 8-18 AB HXW 9/16"
580WR01X11013 GE Refrigerator Screw 10-18 FLT20 3/4 S
693WR01X10593 GE Refrigerator Screw 8-18 AB IHXW 3/4 S
962WR17X23054 GE Refrigerator Housing Wire IM
1003WR01X10618 GE Refrigerator Screw 8-18 TPT 1/4
