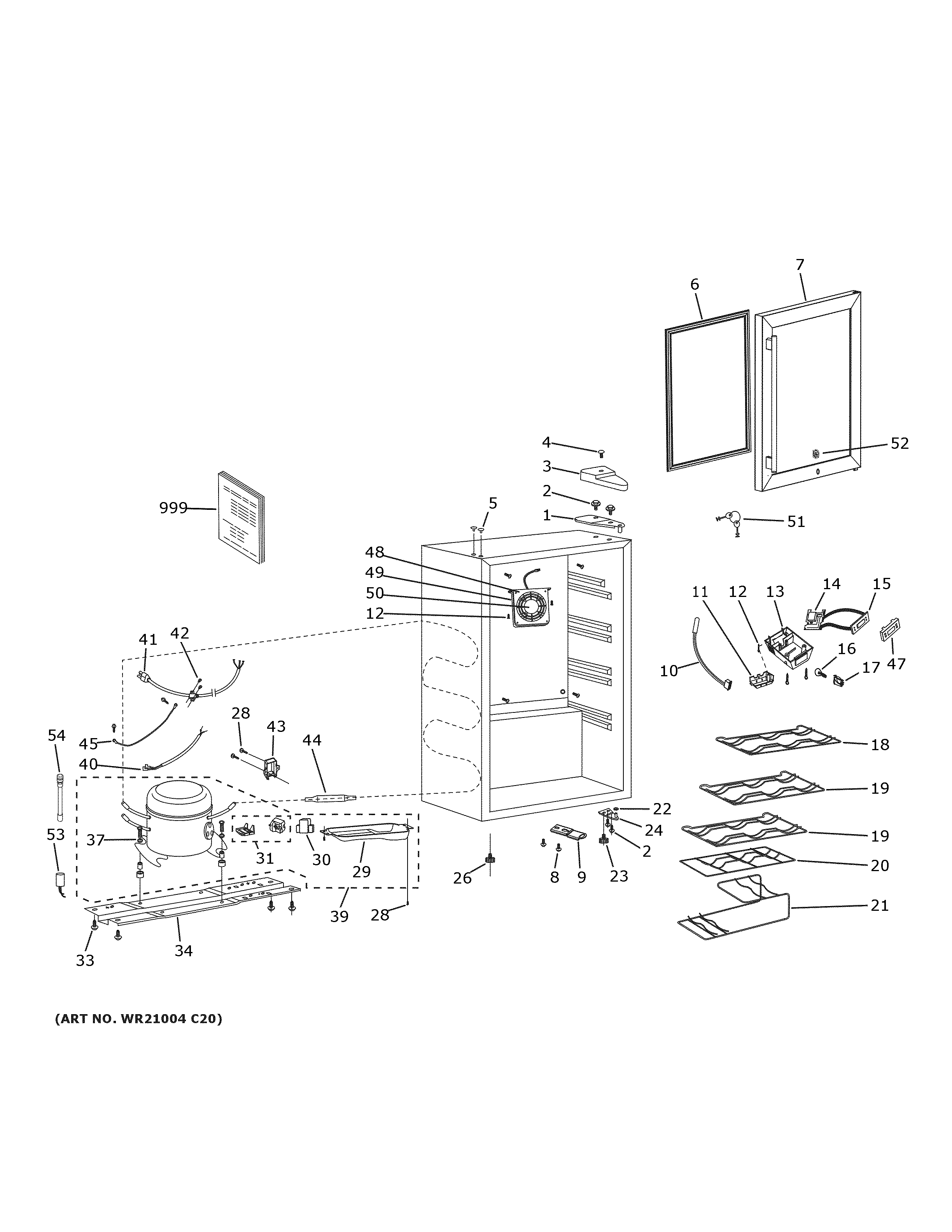

GWS04HAEESS BEVERAGE CENTER

Products

Position	Product
1	WR13X20026 GE Refrigerator Upper Hinge
2	WR01X20018 GE Screw
3	WR13X20025 GE Refrigerator Upper Hinge Cover
4	WR01X20028 GE Screw
5	PLUG BUTTON(BLACK)
6	WR24X20031 GE Refrigerator Black Door Gasket
7	WR79X20032 GE Refrigerator Door
8	WR01X10830 GE Refrigerator Screw
9	LOCK PLATE
10	WR51X20045 GE Refrigerator Temperature Probe Wire
11	WR02X12783 GE Refrigerator Lamp Shield
12	SCREW
13	WR02X12784 GE Refrigerator Control Box
14	WR55X24392 GE Refrigerator Printed Circuit Board Control
15	WR55X24394 GE Refrigerator Display PCB
16	WR02X12786 GE Refrigerator Lamp
17	LAMP SOCKET
18	WIRE SHELF WITH STOP
19	UPPER WIRE SHELF
20	MID WIRE SHELF
21	BOTTOM WIRE SHELF
22	WR01X10831 GE Bushing
23	WR01X10401 GE Fixed Foot
24	WR13X20057 GE Refrigerator Bottom Hinge
26	WR01X29750 GE Right Leveling Leg
28	SCREW
29	WR30X24395 GE Drip Tray
30	PTC COVER
31	OVERLOAD PROTECTOR & RELAY
33	SCREW
34	WR91X20043 GE Compressor Base Assembly
37	WR01X20029 GE Bushing
39	WR87X32530 GE Compressor
40	WR55X31430 GE Compressor Electrical Wire
41	WR55X31431 GE Power Cord
42	SCREW
43	WR40X20017 GE Wire Box
44	WR87X30875 GE Refrigerator R600 Dryer with Red Cap
45	WR23X10615 GE Grounding Wire
47	DISPLAY PANEL
48	WR02X20027 GE Fan Set
49	FAN PROTECT COVER
50	WR02X12777 GE Refrigerator Fan Assembly
51	WR05X24397 GE Lock and Key
52	WR04X10222 GE Refrigerator Badge Assembly
53	WR55X31551 GE Refrigerator Capacitor
54	WR87X30876 GE Refrigerator R600 Process Valve with Red Cap
999	PM MINI MANUAL
999	PM OWNERS MANUAL
