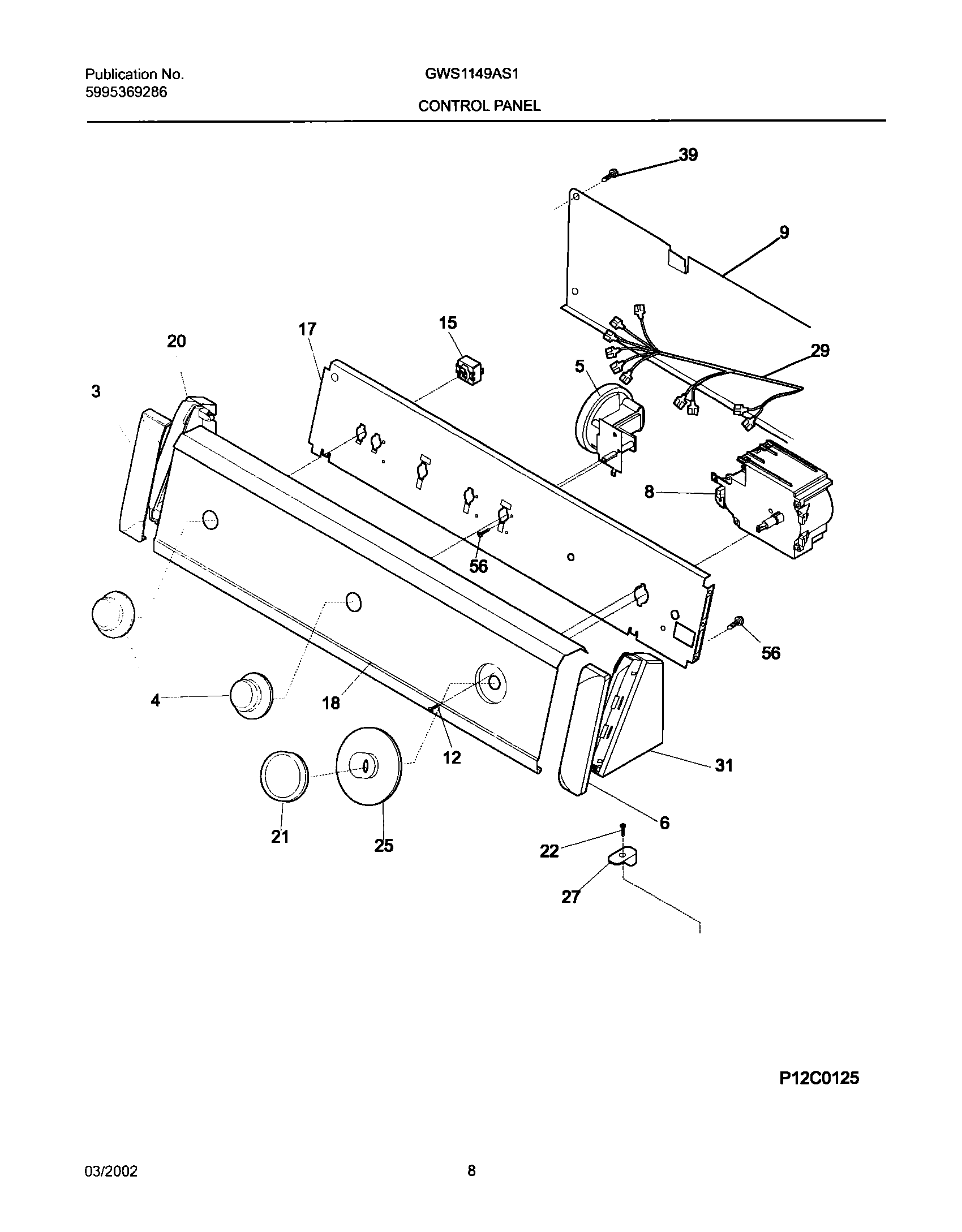

GWS1149AS1 09 – CONTROL PANEL

GWS1149AS1 09 – CONTROL PANEL

Written by

in

GWS1149AS1 09 – CONTROL PANEL

Products

PositionProduct
3COVER-CAP-LH-WHITE
4134886700 Frigidaire Dryer Timer Knob
5134680100 Frigidaire Pressure Switch
6COVER-CAP-RH-WHITE
8Timer,3-off
9WCI 134088700
12131168200 Frigidaire Dryer Screw
15WCI 131081200
17WCI 131580006
18WCI 134038700
20END CAP-L.H.-WHITE
21WCI 131985301
22WCI 131266300
25WCI 131984601
27CLIP-CONSOLE MTG
29Wiring Harness,control
31END CAP-R.H.-WHITE
39131205100 Frigidaire Screw
56131243800 Frigidaire Screw
