GWS445RFS1 07 – CONTROL PANEL – Aparts

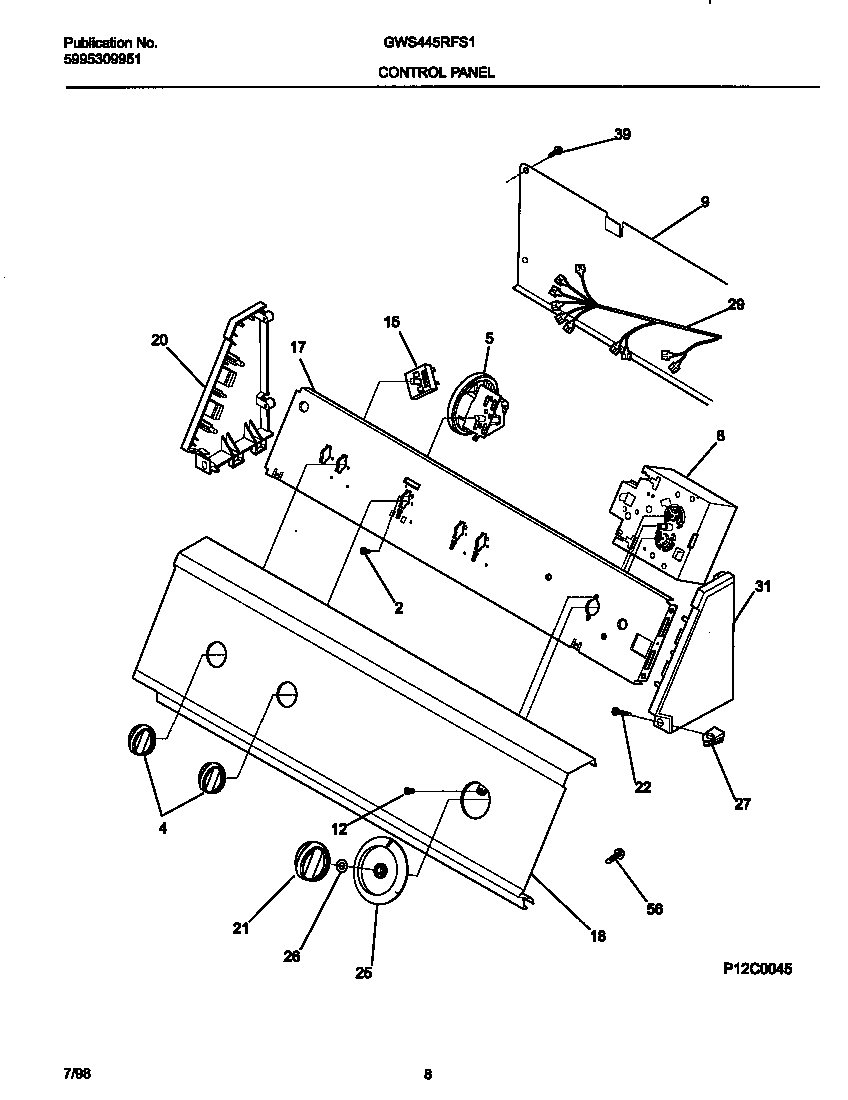

GWS445RFS1 07 – CONTROL PANEL

Products

Position	Product
2	131168200 Frigidaire Dryer Screw
4	WCI 131032501
5	134680100 Frigidaire Pressure Switch
8	WCI 131436800
9	COVER-BACK
12	SCREW (2)
15	WCI 131081200
17	WCI 131728900
18	WCI 131691600
20	WCI 5303291343
21	WCI 131030401
22	WCI 131266310
25	WCI 131030501
26	Spacer,washer ,timer shaft
27	CLIP-CONSOLE MTG
29	WCI 131653700
31	WCI 5303291351
39	131205100 Frigidaire Screw
56	131243800 Frigidaire Screw
