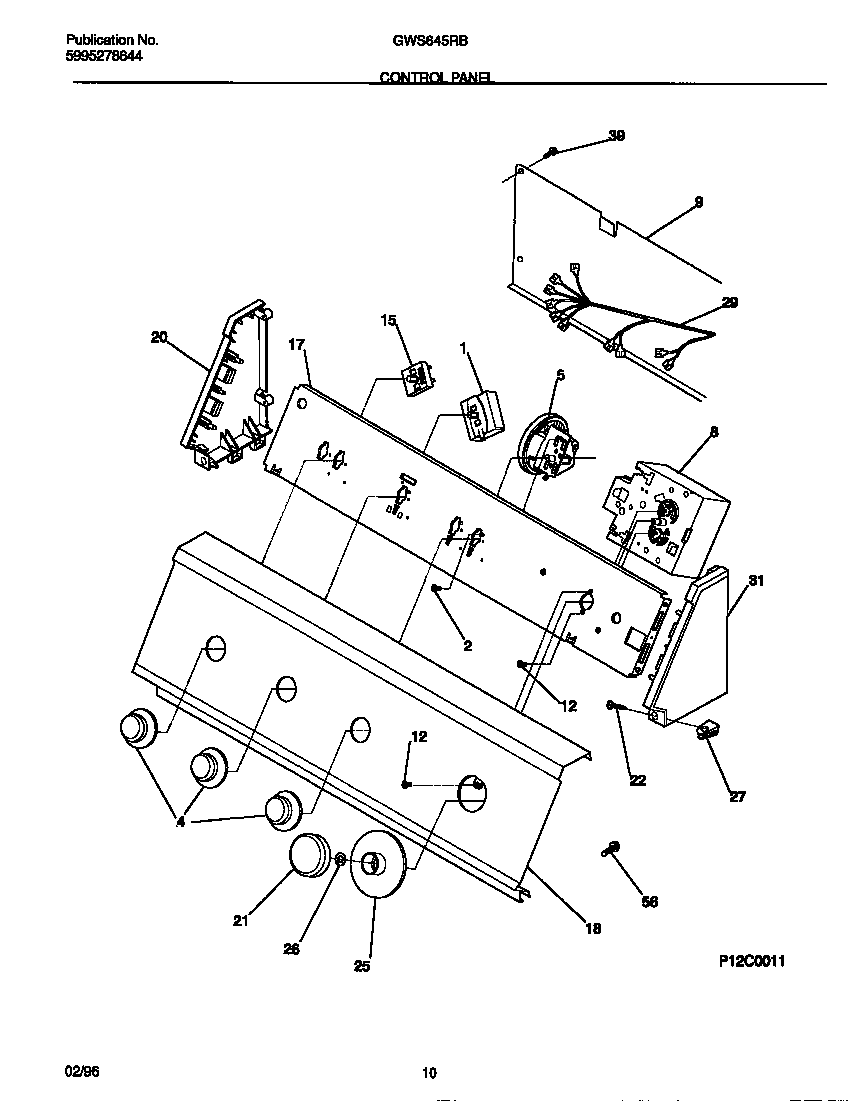

GWS645RBS3 05 – CONTROL PANEL

GWS645RBS3 05 – CONTROL PANEL

Written by

in

GWS645RBS3 05 – CONTROL PANEL

Products

PositionProduct
1WCI 131120400
2131168200 Frigidaire Dryer Screw
4WCI 131032501
5134680100 Frigidaire Pressure Switch
8WCI 131437000
9COVER-BACK
12SCREW (2)
15WCI 131081200
17WCI 131297306
18PANEL-CONTROL,WHITE
20WCI 5303291343
21WCI 131030401
22WCI 131266300
25WCI 131030501
26Spacer,washer ,timer shaft
27CLIP-CONSOLE MTG
29WCI 131520100
31WCI 5303291351
39131205100 Frigidaire Screw
56131243800 Frigidaire Screw
