GWS645RFS0 05 – CONTROL PANEL – Aparts

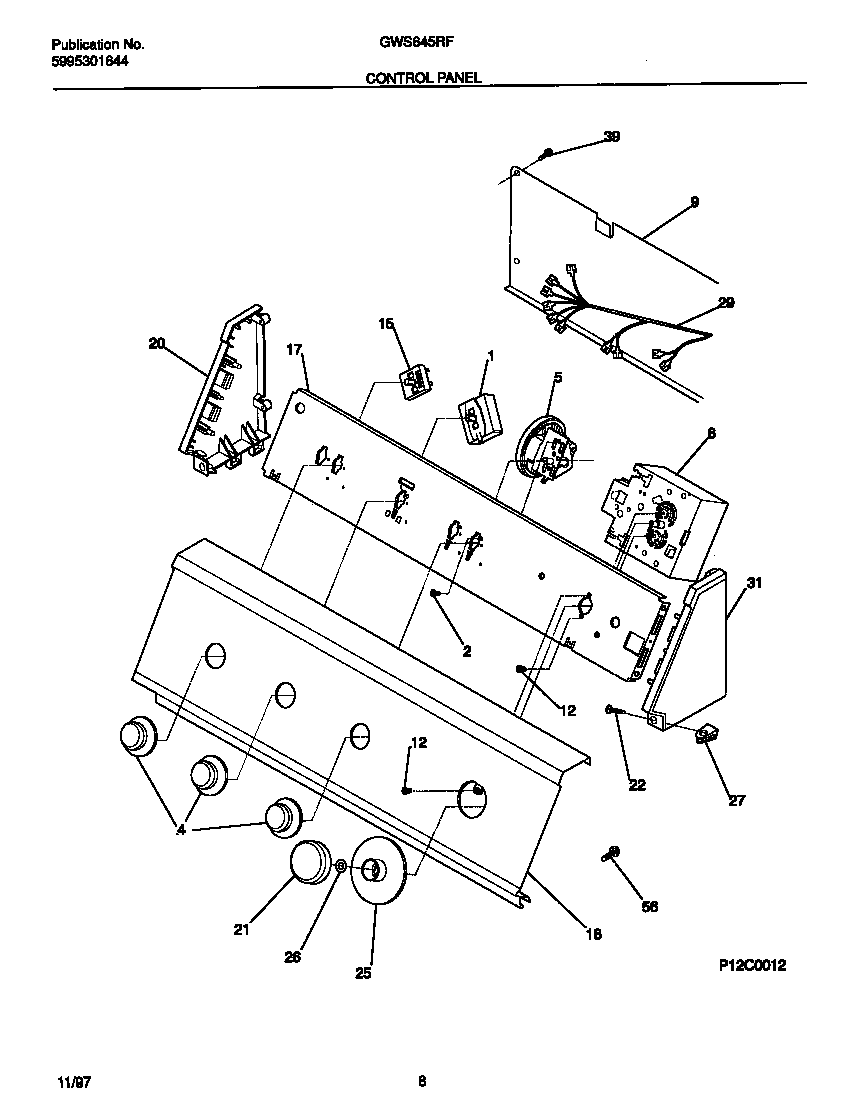

GWS645RFS0 05 – CONTROL PANEL

Products

Position	Product
1	WCI 131120400
2	131168200 Frigidaire Dryer Screw
4	WCI 131032501
5	134680100 Frigidaire Pressure Switch
8	WCI 131437000
9	COVER-BACK
12	SCREW (2)
15	WCI 131081200
17	WCI 131297306
18	PANEL-CONTROL,WHITE
20	WCI 5303291343
21	WCI 131030401
22	WCI 131266300
25	WCI 131030501
26	Spacer,washer ,timer shaft
27	CLIP-CONSOLE MTG
29	WCI 131653800
31	WCI 5303291351
39	131205100 Frigidaire Screw
56	131243800 Frigidaire Screw
