GWT1149AS0 09 – CONTROL PANEL – Aparts

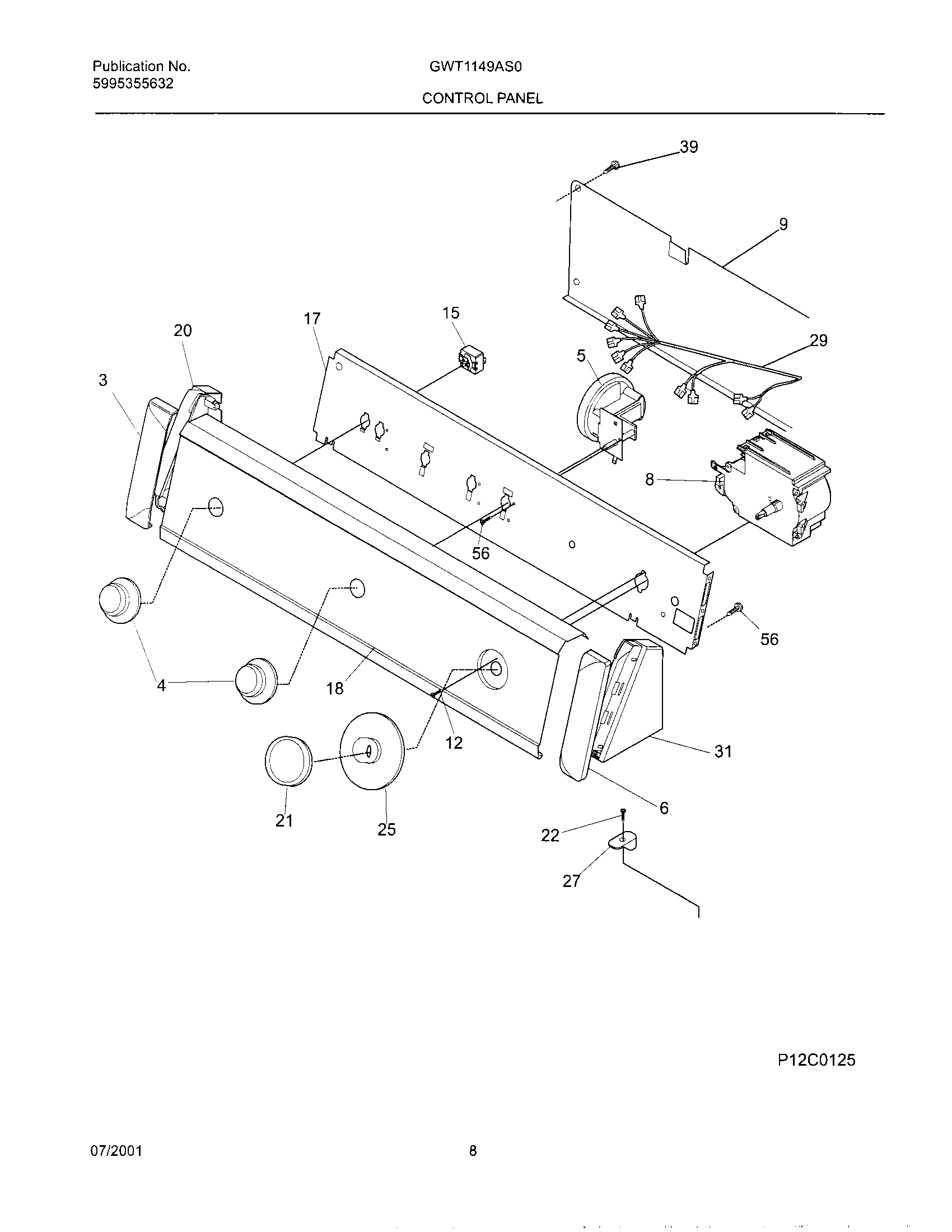

GWT1149AS0 09 – CONTROL PANEL

Products

Position	Product
3	COVER-CAP-LH-WHITE
4	134886700 Frigidaire Dryer Timer Knob
5	134680100 Frigidaire Pressure Switch
6	COVER-CAP-RH-WHITE
8	Timer,3-off
9	WCI 134088700
12	131168200 Frigidaire Dryer Screw
15	WCI 131081200
17	WCI 131580006
18	WCI 134038700
20	END CAP-L.H.-WHITE
21	WCI 131985301
22	WCI 131266300
25	WCI 131984601
27	CLIP-CONSOLE MTG
29	WCI 131986800
31	END CAP-R.H.-WHITE
39	131205100 Frigidaire Screw
56	131243800 Frigidaire Screw
