GWT1749AS0 09 – CONTROL PANEL – Aparts

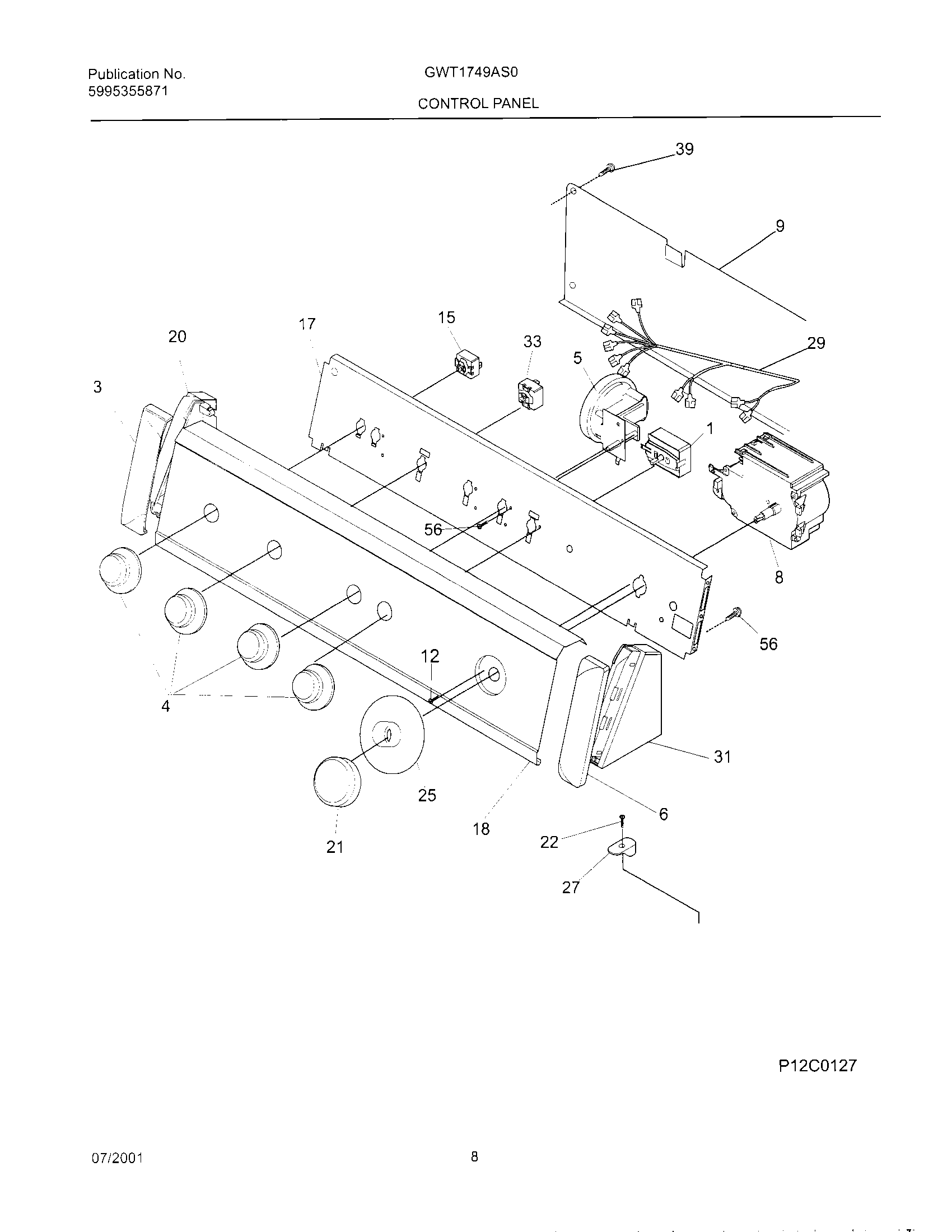

GWT1749AS0 09 – CONTROL PANEL

Products

Position	Product
1	WCI 131120400
3	COVER-CAP-LH-WHITE
4	134886700 Frigidaire Dryer Timer Knob
5	134680100 Frigidaire Pressure Switch
6	COVER-CAP-RH-WHITE
8	WCI 131856400
9	WCI 131141730
12	131168200 Frigidaire Dryer Screw
15	WCI 131081200
17	WCI 131580006
18	WCI 134068700
20	END CAP-L.H.-WHITE
21	WCI 131985301
22	WCI 131266300
25	WCI 131984601
27	CLIP-CONSOLE MTG
29	WCI 134072400
31	END CAP-R.H.-WHITE
33	Switch,2 position
39	131205100 Frigidaire Screw
56	131243800 Frigidaire Screw
