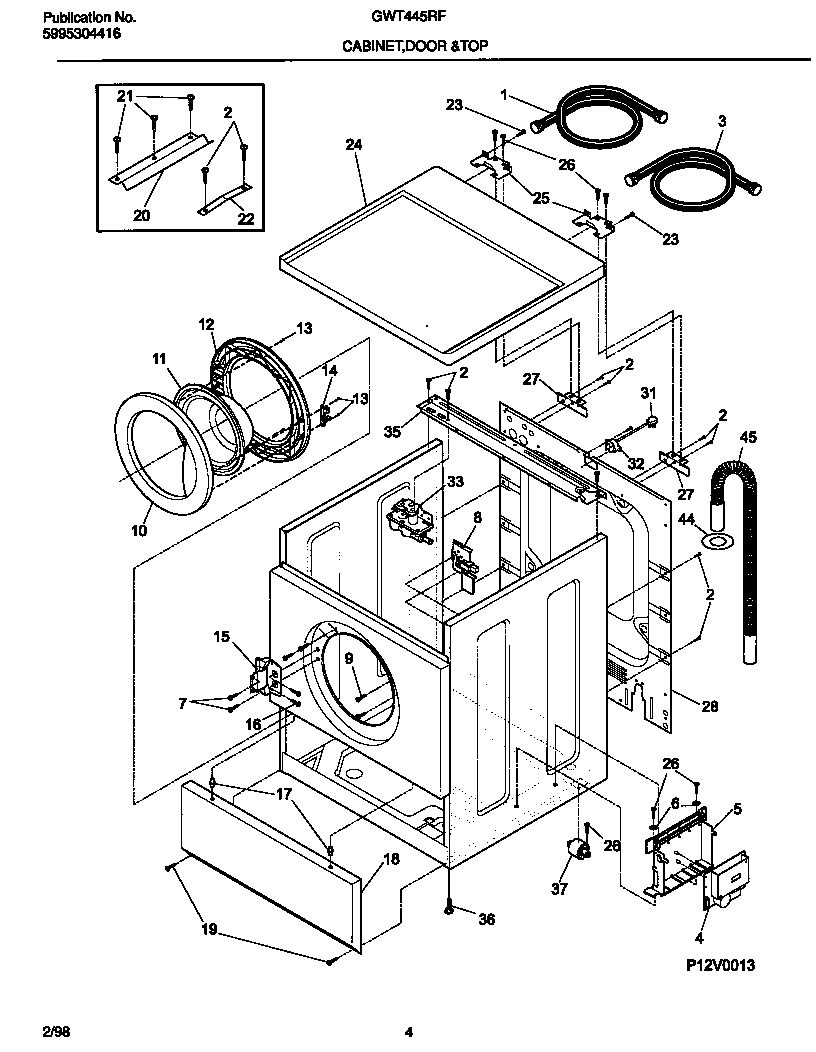

GWT445RFS2 03 – CABINET,DOOR & TOP

GWT445RFS2 03 – CABINET,DOOR & TOP

Written by

in

GWT445RFS2 03 – CABINET,DOOR & TOP

Products

PositionProduct
*67842131445600 Frigidaire Washer Kit (O/S1)
*67843WCI 5303937142
*67841131396100 Frigidaire PLUG-HOLE
15303912532 Frigidaire Hose Inlet 60"
2131168200 Frigidaire Dryer Screw
4WCI 131690700
5WCI 131268900
65303304015 Frigidaire Oven Washer
7131205300 Frigidaire Screw
8DOOR LOCK/SWITCH ASSY
9131302800 Frigidaire Drum Vane Screw
10131278700 Frigidaire Outer Door
11Panel,door glass
12134426500 Frigidaire Inner Door Panel Ki
13131302901 Frigidaire Screw
14131279001 Frigidaire Washer Door Catch Strike
15134264600 Frigidaire Hinge
16131696300 Frigidaire Screw 10-16 X 0.312 Qu
17WCI 131346400
18Panel,Service ,white ,kick plate
19218362501 Frigidaire Refrigerator Screw
20Bracket,top panel mtg. ,front
21131243700 Frigidaire Screw
22Retainer,spring steel
23131243800 Frigidaire Screw
24WCI 131677308
25Bracket,top panel mtg.
26134178901 Frigidaire Screw
27WCI 131461000
28WCI 131686700
315304505407 Frigidaire Cord
325303209428 Frigidaire Serv.Cord Bushing
33134190200 Frigidaire Washer Water Valve
35WCI 131273900
36131841600 Frigidaire Washer Levelling Leg
37WCI 131304200
44131707800 Frigidaire Drain Hose Ring
45131461200 Frigidaire Washer Drain Hose
