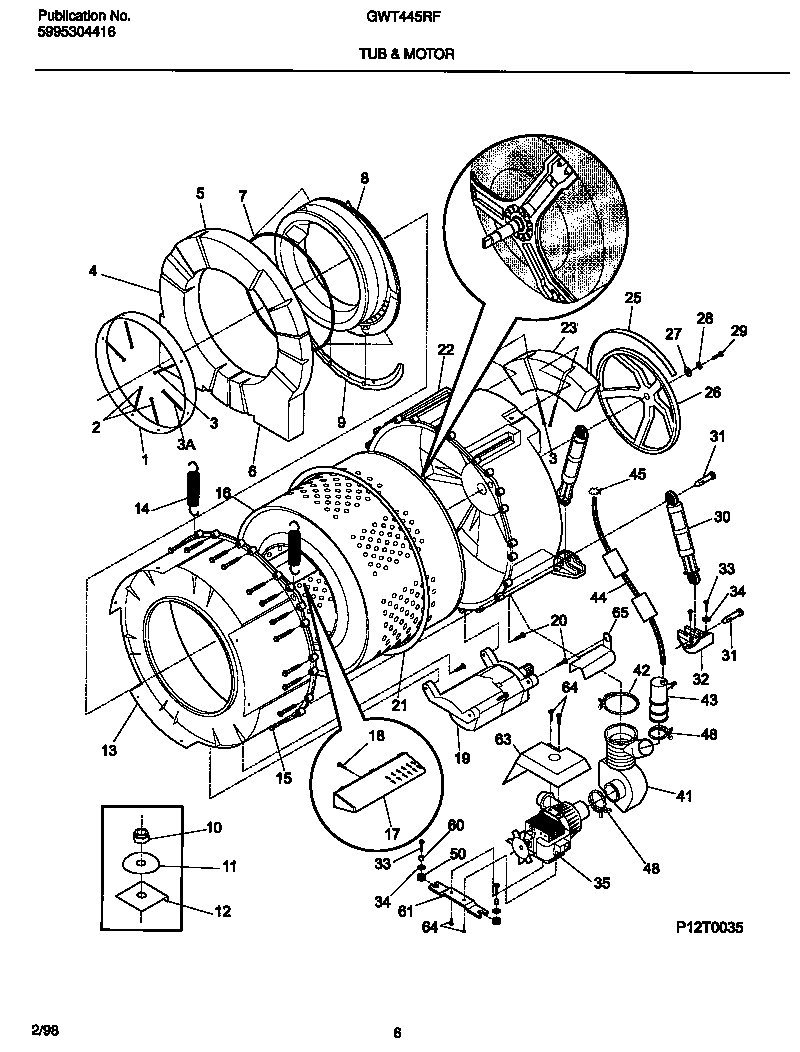

GWT445RFS2 04 – TUB & MOTOR

GWT445RFS2 04 – TUB & MOTOR

Written by

in

GWT445RFS2 04 – TUB & MOTOR

Products

PositionProduct
*67844131560000 Frigidaire Lower Sleeve Spring
*67845131592200 Frigidaire Sleeve-Upper Spring
1WCI 131277000
2WCI 131303401
3WCI 131303403
3WCI 131303402
4WCI 131276500
5WCI 131276600
6WCI 131276400
7131277300 Frigidaire Boot Retainer Spring
85303937187 Frigidaire Washer Door Gasket Seal Bellows Kit
9WCI 131277200
10Nut,hex ,1/4-20 UNC-2B ,(2)
11131276900 Frigidaire Washer Spring
12WCI 131276800
13131618600 Frigidaire Front Shell TUB+O/S2
14134144700 Frigidaire Washer Suspension Spring
15131303900 Frigidaire Screw
16131618500 Frigidaire Spin Tub + O/S2
17131274600 Frigidaire Baffle
18131302800 Frigidaire Drum Vane Screw
19131276200 Frigidaire Washer Drive Motor
20131303500 Frigidaire Screw
21WCI 131275900
22Shell,outer tub ,rear ,with bearing
23WCI 131276700
25134051000 Frigidaire Washer Drive Belt
26WCI 131632500
27Washer,0.41 x 1.50 ,0.12 thick
28WCI 131304500
29Screw,pulley mtg. ,m10 x 0.92 ,metric
305304485917 Frigidaire Washer Shock Absorber Air Stabilizer
31131268300 Frigidaire Leveling Pin
32Bracket,shock mtg.
33131202300 Frigidaire Screw
345303304015 Frigidaire Oven Washer
35WCI 131268401
41131784700 Frigidaire Coin Trap Hose
42134737300 Frigidaire Clamp
43WCI 131277500
44Hose,air pressure
45131306202 Frigidaire Clamp
48131306234 Frigidaire Clamp Pump
50WCI 131268600
60WCI 131268700
61WCI 131268500
63WCI 131351500
645303283072 Frigidaire Shield Screw
65WCI 131702200
