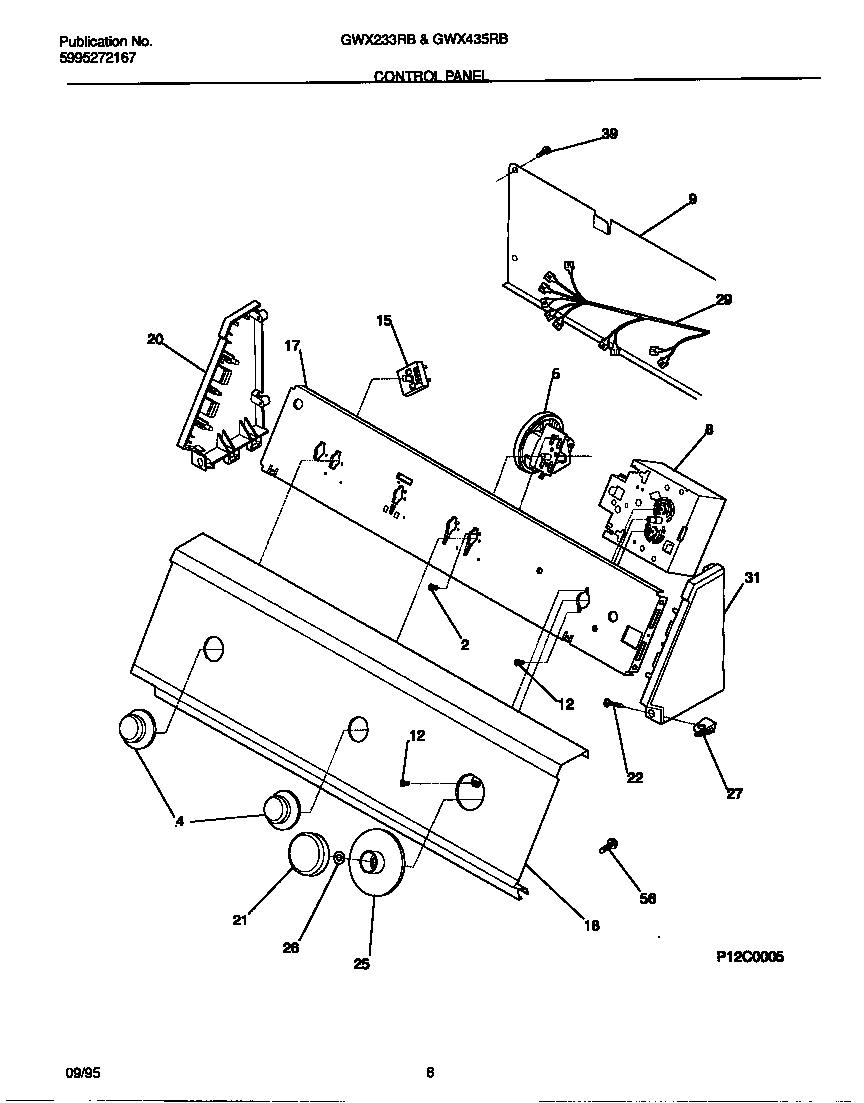

GWX233RBS1 05 – CONTROL PANEL

GWX233RBS1 05 – CONTROL PANEL

Written by

in

GWX233RBS1 05 – CONTROL PANEL

Products

PositionProduct
2131168200 Frigidaire Dryer Screw
4WCI 131032501
5WCI 131047500
8WCI 131360200
9ACOVER-BACK
9BCOVER-BACK
12SCREW (2)
15WCI 131047000
17WCI 131297306
18PANEL-CONTROL, WHITE
20WCI 5303291343
21WCI 131030401
22WCI 131266310
25WCI 131030501
26Spacer,washer ,timer shaft
27CLIP-CONSOLE MTG
29WCI 131340900
31WCI 5303291351
39131205100 Frigidaire Screw
56131243800 Frigidaire Screw
