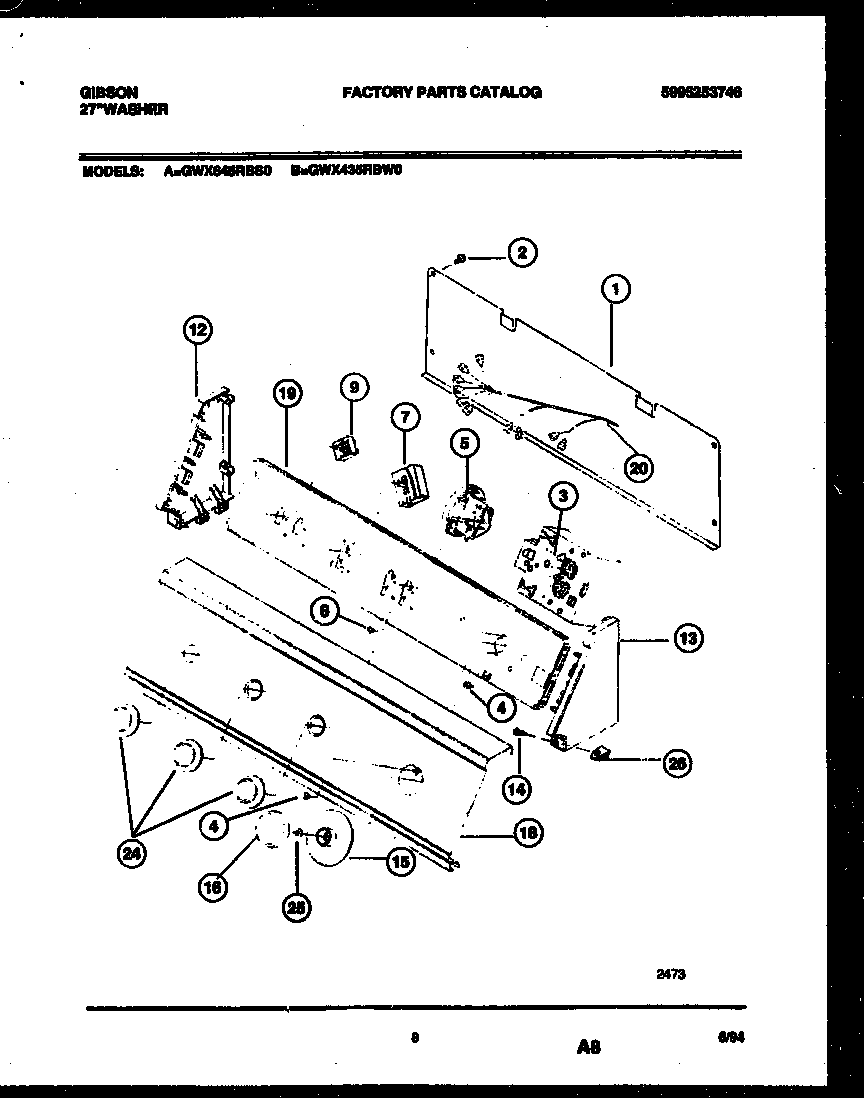

GWX645RBS0 05 – CONSOLE AND CONTROL PARTS

GWX645RBS0 05 – CONSOLE AND CONTROL PARTS

Written by

in

GWX645RBS0 05 – CONSOLE AND CONTROL PARTS

Products

PositionProduct
*76024131243800 Frigidaire Screw
1COVER-BACK
2131205100 Frigidaire Screw
3WCI 131238200
4SCREW (2)
5WCI 131047700
6131168200 Frigidaire Dryer Screw
7WCI 131120400
9WCI 131081200
12WCI 5303291343
13WCI 5303291351
14WCI 5303297854
15WCI 131030501
16WCI 131030401
18WCI 131338800
19WCI 131297306
20WCI 131166200
24WCI 131032501
25Spacer,washer ,timer shaft
26CLIP-CONSOLE MTG
