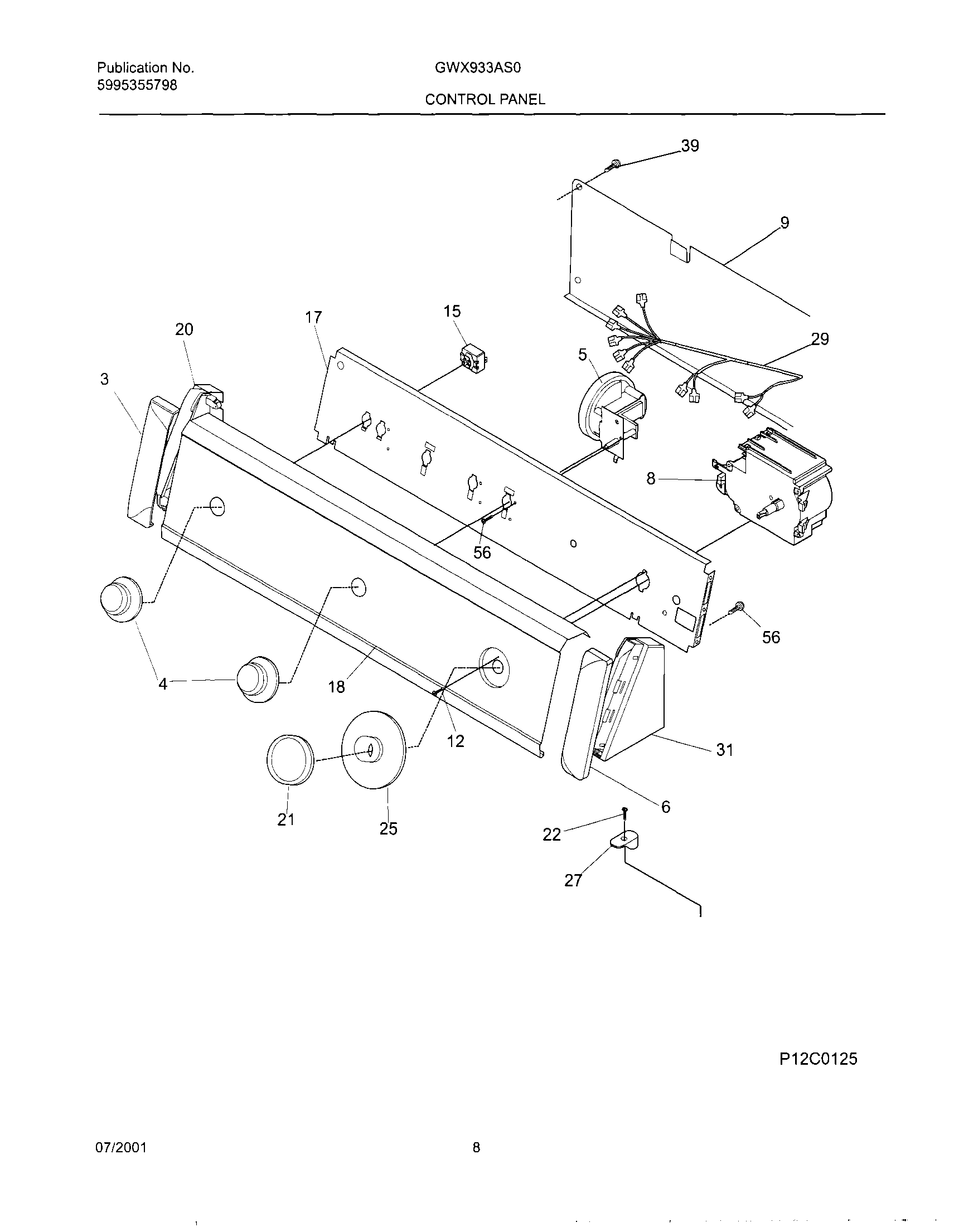

GWX933AS0 09 – CONTROL PANEL

Products

PositionProduct
3COVER-CAP-LH-WHITE
4134886700 Frigidaire Dryer Timer Knob
5134411600 Frigidaire P-1 Pressure Switch
6COVER-CAP-RH-WHITE
8WASHER TIMER
9WCI 131141730
12131168200 Frigidaire Dryer Screw
15WCI 131047000
17WCI 131580006
18WCI 134039300
20END CAP-L.H.-WHITE
21WCI 131985301
22WCI 131266300
25WCI 131984601
27CLIP-CONSOLE MTG
29WCI 131986800
31END CAP-R.H.-WHITE
39131205100 Frigidaire Screw
56131243800 Frigidaire Screw
