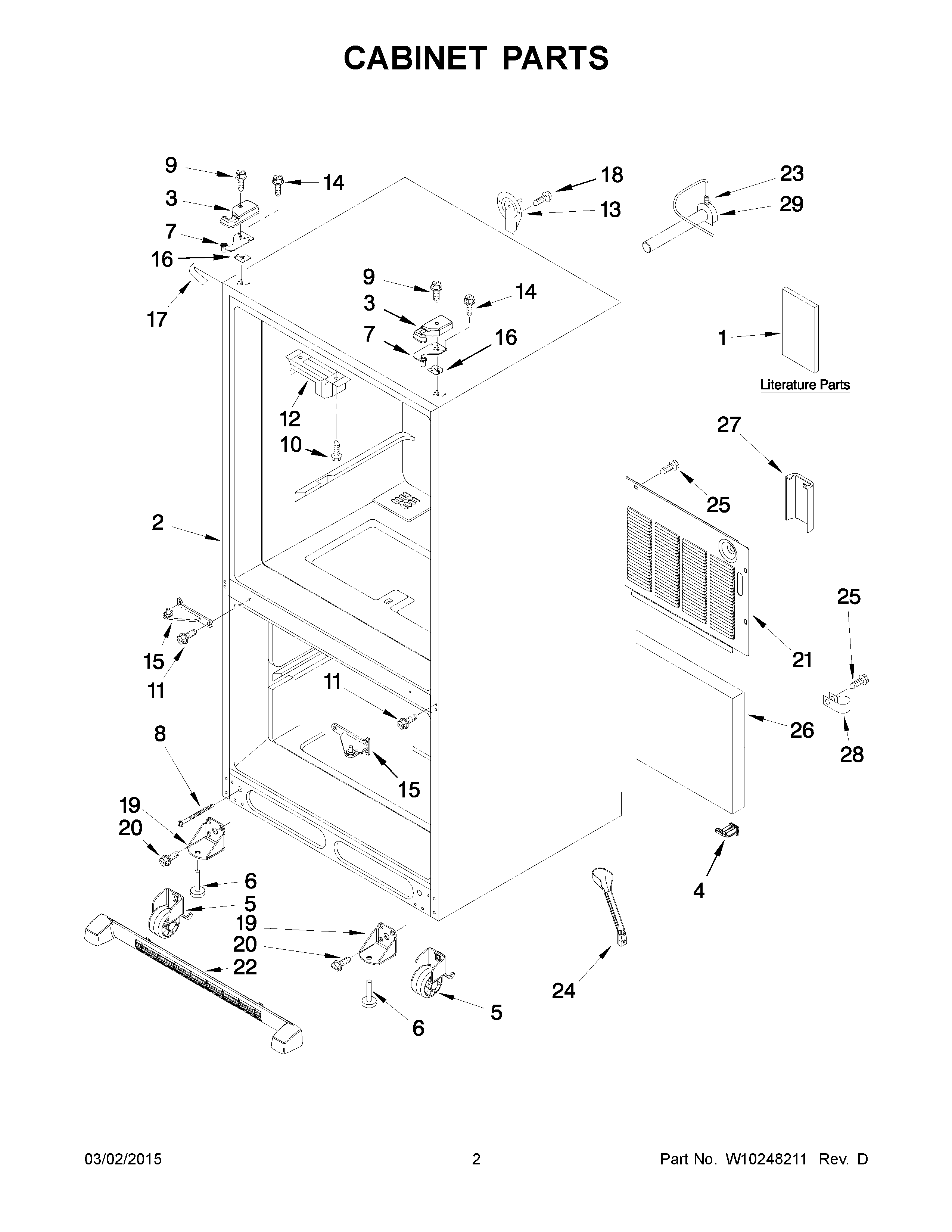

GX2FHDXVB00 02 – CABINET PARTS

GX2FHDXVB00 02 – CABINET PARTS

Written by

in

GX2FHDXVB00 02 – CABINET PARTS

Products

PositionProduct
1BTech Sheet
1AENERGY TAG
1Use & Care Guide
2CABINET (NOT A SERVICEABLE PART)
3AW10337647 Whirlpool Refrigerator Cover
3WPW10337634 Whirlpool Refrigerator Cover
3DWP67005956 Whirlpool Refrigerator Cover
3FWPW10191117 Whirlpool Refrigerator Cover
3BWPW10337648 Whirlpool Refrigerator Cover
3C67005958 Whirlpool Refrigerator Top Hinge Cover (RT-WHT)
3ECOVER, RIGHT HINGE (BISCUIT)
4SWEEP, WATER VALVE
5ROLLER ASSY.(REAR)
6W11177593 Whirlpool Leveling Feet
7AW11592374 Whirlpool Refrigerator Top Door Hinge
7W11592375 Whirlpool Door Hinge
871003131 Whirlpool Oven Screw
9WP8281196 Whirlpool Screw
10WP7101P126-60 Whirlpool Screw
11WP489349 Whirlpool Refrigerator Screw
12WP67003405 Whirlpool Pivot Block
1312726003 Whirlpool Refrigerator Water Cover
15C13000002WD Whirlpool Refrigerator Door Hinge
15BW10917988 Whirlpool Refrigerator Door Hinge
15W10918113 Whirlpool Refrigerator Door Hinge
15AW10918164 Whirlpool Refrigerator Door Hinge
15DW10918168 Whirlpool Refrigerator Door Hinge
1612999501 Whirlpool Refrigerator Hinge Shim
16A12999502 Whirlpool Refrigerator Hinge Shim
17BFILLER, WRAPPER (BISCUIT)
17A67003485 Whirlpool Refrigerator Corner Cover (Black)
1712587703W Whirlpool Refrigerator Cover
17CWP12587703AP Whirlpool Refrigerator Filler
18WP98165 Whirlpool Screw
1912906303WD Whirlpool Refrigerator Bracket
2067006564 Whirlpool Refrigerator Screw
21WPW10210979 Whirlpool Refrigerator Back Cover
22AWPW10534162 Whirlpool Refrigerator Front Grille
22BGRILLE, TOE (BISCUIT/BISQUE)
22WPW10534161 Whirlpool Refrigerator Front Grille
22CWPW10534160 Whirlpool Refrigerator Front Grille
23WPM0114003 Whirlpool Microwave Speed Clip Clamp
24W10619951 Whirlpool Drain Tube with Grommet
2567006425 Whirlpool Refrigerator Screw
26INSULATION, SOUND
27W10208592 Whirlpool Refrigerator Valve Cover
28W10833902 Whirlpool Refrigerator Clamp
29W11176463 Whirlpool Refrigerator Water Tube
