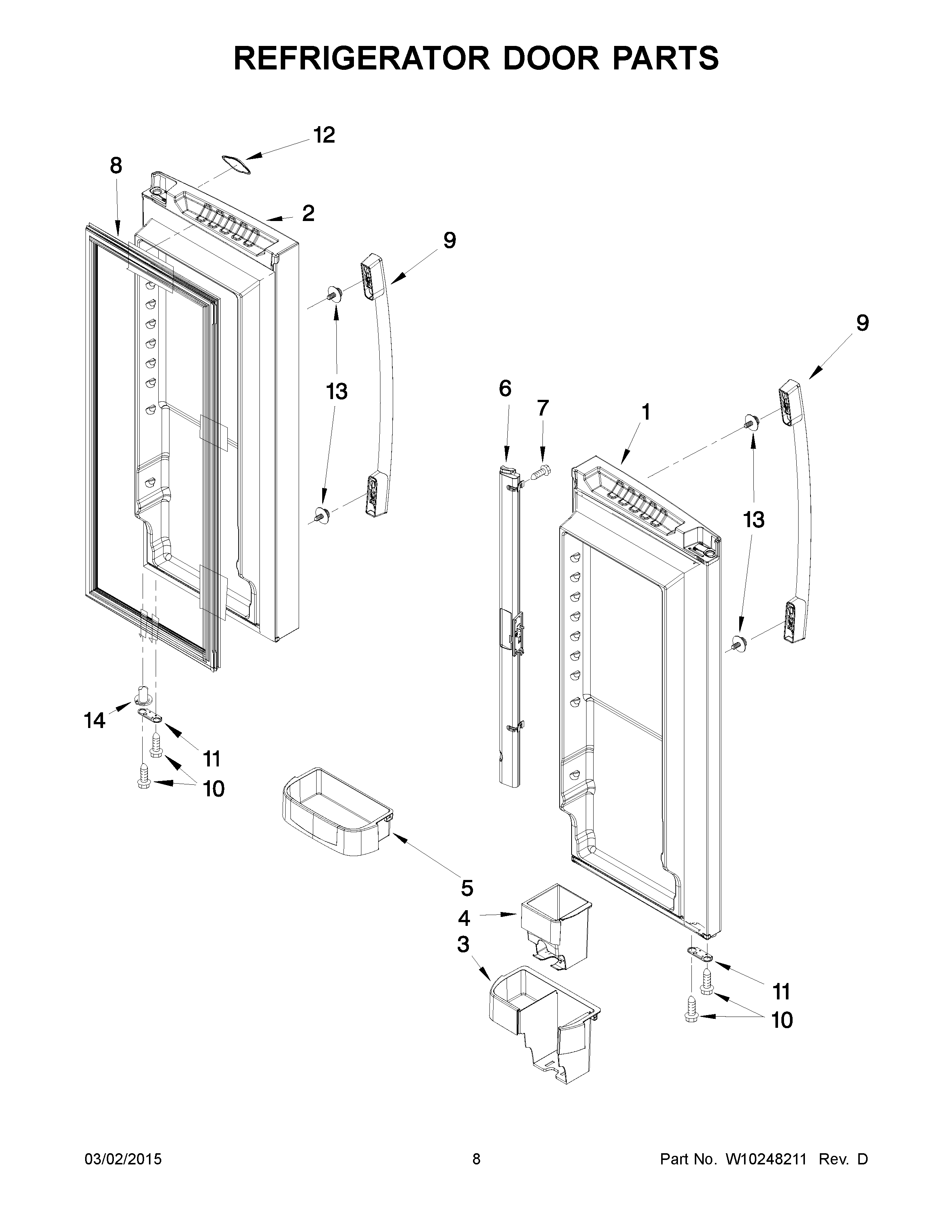

GX2FHDXVB00 05 – REFRIGERATOR DOOR PARTSadmin2025-04-26T12:05:40+00:00GX2FHDXVB00 05 – REFRIGERATOR DOOR PARTS
Products
| Position | Product |
|---|
| 1C | Door, Left (Universal Silver) |
| 1E | Door, Left (Stainless) |
| 1 | Door, Left (White) |
| 1A | Door, Left (Black) |
| 1D | DOOR, LEFT (SATINA) |
| 1B | DOOR, LEFT (BISCUIT/BISQUE) |
| 2A | Door, Right (Black) |
| 2B | DOOR, RIGHT (BISCUIT/BISQUE) |
| 2D | DOOR, RIGHT (SATINA) |
| 2C | Door, Right (Universal Silver) |
| 2E | Door, Right (Stainless) |
| 2 | Door, Right (White) |
| 3 | BUCKET-CAN DISPNSR |
| 4 | WP13005401SP Whirlpool Can Rack |
| 5 | WPW10371194 Whirlpool Refrigerator Door Shelf Bin Basket Bucket |
| 5A | WPW10351081 Whirlpool Refrigerator Cantilever Bin |
| 6B | WP12722803AP Whirlpool Refrigerator Mullion Rail |
| 6 | RAIL-MULLN WHITE |
| 6A | WP12722803B Whirlpool Door Guide |
| 7 | W11311945 Whirlpool Refrigerator Screw |
| 8C | W10830189 Whirlpool Refrigerator Door Gasket |
| 8B | W10830283 Whirlpool Refrigerator Door Gasket |
| 8 | W10830287 Whirlpool Refrigerator FIP Gasket |
| 8A | W10830289 Whirlpool Refrigerator Gasket FIP |
| 8D | GASKET-FIP |
| 8E | GASKET-FIP |
| 9A | W11351146 Whirlpool Refrigerator Handle |
| 9C | W11351147 Whirlpool Refrigerator Handle |
| 9 | WPW10222984K Whirlpool Refrigerator Handle Assembly |
| 9B | HANDLE (BISCUIT) |
| 10 | WP98165 Whirlpool Screw |
| 11A | W11708403 Whirlpool Door Stop |
| 11B | Stop, Door (Bisque) |
| 11 | 12968202W Whirlpool Refrigerator Door Stop |
| 11C | W11703060 Whirlpool Door Stop |
| 12 | Nameplate |
| 13 | WP12992902 Whirlpool Refrigerator Screw |
| 14 | WP67003638 Whirlpool Closing Cam |
| 14A | WP67003639 Whirlpool Refrigerator Closer |
| 14B | WP12028505AP Whirlpool Closing Cam |
