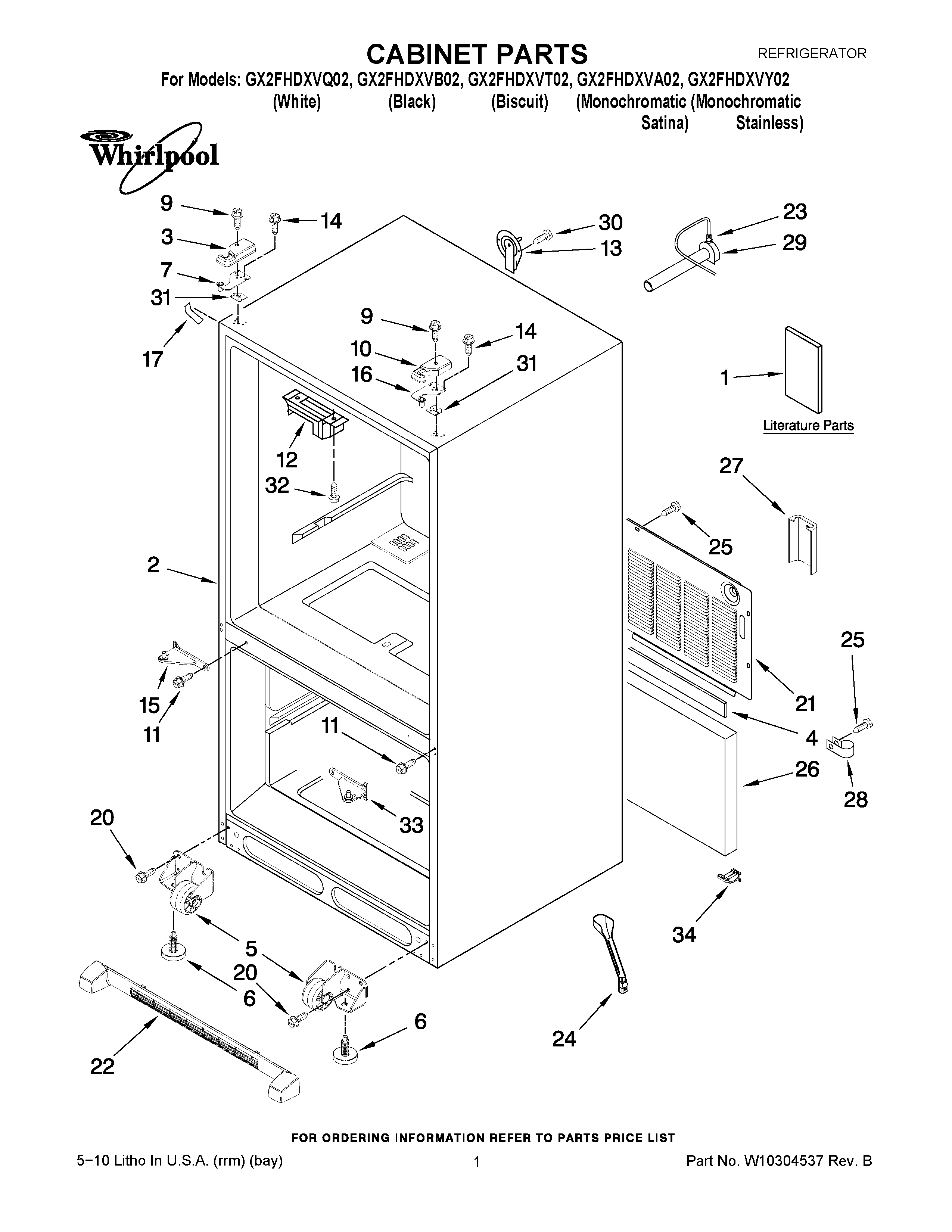

GX2FHDXVB02 01 – CABINET PARTS

Products

Position	Product
1	Use & Care Guide
1	ENERGY GUIDE
1	TECH SHEET
2	CABINET (NOT A SERVICEABLE PART)
3	COVER, LEFT HINGE (BISCUIT)
3	WPW10337648 Whirlpool Refrigerator Cover
3	WPW10337634 Whirlpool Refrigerator Cover
3	W10337647 Whirlpool Refrigerator Cover
4	B5759655 Whirlpool Refrigerator Gasket
5	WPW10515762 Whirlpool Refrigerator Cabinet Roller
5	WPW10515763 Whirlpool Refrigerator Cabinet Roller
6	WPW10141622 Whirlpool Leveler
7	W11592375 Whirlpool Door Hinge
9	WP8281196 Whirlpool Screw
10	WPW10191117 Whirlpool Refrigerator Cover
10	COVER, RIGHT HINGE (BISCUIT)
10	WP67005956 Whirlpool Refrigerator Cover
10	67005958 Whirlpool Refrigerator Top Hinge Cover (RT-WHT)
11	WP489349 Whirlpool Refrigerator Screw
12	WP67003405 Whirlpool Pivot Block
13	12726003 Whirlpool Refrigerator Water Cover
15	W10918164 Whirlpool Refrigerator Door Hinge
15	W10917988 Whirlpool Refrigerator Door Hinge
15	W10918113 Whirlpool Refrigerator Door Hinge
16	W11592374 Whirlpool Refrigerator Top Door Hinge
17	12587703W Whirlpool Refrigerator Cover
17	WP12587703AP Whirlpool Refrigerator Filler
17	FILLER, WRAPPER (BISCUIT)
17	67003485 Whirlpool Refrigerator Corner Cover (Black)
20	67006564 Whirlpool Refrigerator Screw
21	WPW10210979 Whirlpool Refrigerator Back Cover
22	WPW10534161 Whirlpool Refrigerator Front Grille
22	GRILLE, TOE (BISCUIT/BISQUE)
22	WPW10534162 Whirlpool Refrigerator Front Grille
22	WPW10534160 Whirlpool Refrigerator Front Grille
23	WPM0114003 Whirlpool Microwave Speed Clip Clamp
24	W10619951 Whirlpool Drain Tube with Grommet
25	67006425 Whirlpool Refrigerator Screw
26	INSULATION, SOUND
27	W10208592 Whirlpool Refrigerator Valve Cover
28	W10833902 Whirlpool Refrigerator Clamp
29	W11176463 Whirlpool Refrigerator Water Tube
30	WP98165 Whirlpool Screw
31	12999502 Whirlpool Refrigerator Hinge Shim
31	12999501 Whirlpool Refrigerator Hinge Shim
32	WP7101P126-60 Whirlpool Screw
33	W10918168 Whirlpool Refrigerator Door Hinge
33	13000002WD Whirlpool Refrigerator Door Hinge
34	SWEEP, WATER VALVE
