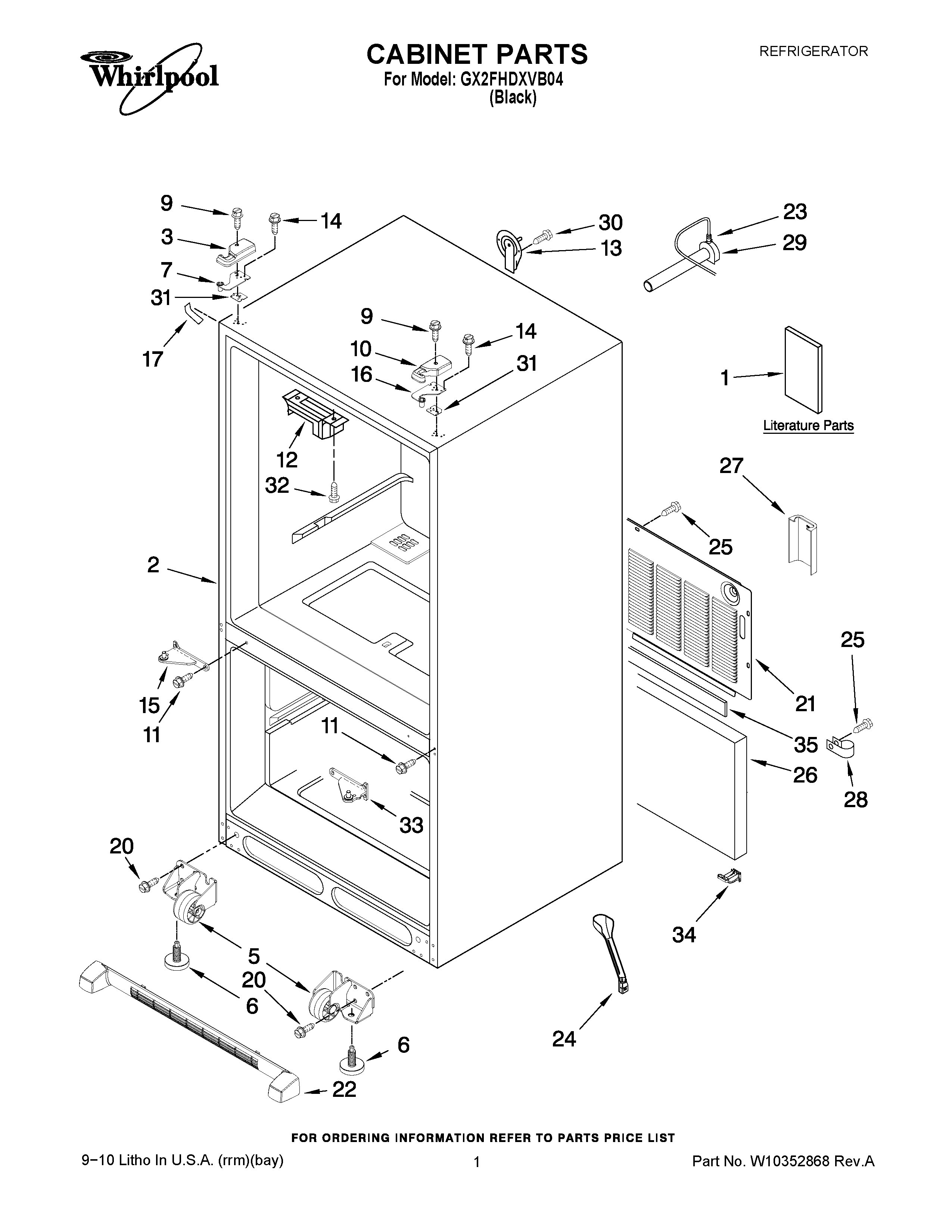

GX2FHDXVB04 01 – CABINET PARTS

Products

Position	Product
1	ENERGY GUIDE
1	TECH SHEET
1	Use & Care Guide
2	CABINET (NOT A SERVICEABLE PART)
3	W10337647 Whirlpool Refrigerator Cover
5	WPW10515763 Whirlpool Refrigerator Cabinet Roller
5	WPW10515762 Whirlpool Refrigerator Cabinet Roller
6	WPW10141622 Whirlpool Leveler
7	W11592375 Whirlpool Door Hinge
9	WP8281196 Whirlpool Screw
10	WP67005956 Whirlpool Refrigerator Cover
11	WP489349 Whirlpool Refrigerator Screw
12	WP67003405 Whirlpool Pivot Block
13	12726003 Whirlpool Refrigerator Water Cover
15	W10918164 Whirlpool Refrigerator Door Hinge
16	W11592374 Whirlpool Refrigerator Top Door Hinge
17	67003485 Whirlpool Refrigerator Corner Cover (Black)
20	67006564 Whirlpool Refrigerator Screw
21	WPW10210979 Whirlpool Refrigerator Back Cover
22	WPW10534162 Whirlpool Refrigerator Front Grille
23	WPM0114003 Whirlpool Microwave Speed Clip Clamp
24	W10619951 Whirlpool Drain Tube with Grommet
25	67006425 Whirlpool Refrigerator Screw
26	INSULATION, SOUND
27	W10208592 Whirlpool Refrigerator Valve Cover
28	W11456069 Whirlpool Refrigerator Clamp
29	W11176463 Whirlpool Refrigerator Water Tube
30	WP98165 Whirlpool Screw
31	12999501 Whirlpool Refrigerator Hinge Shim
31	12999502 Whirlpool Refrigerator Hinge Shim
32	SCREW
33	W10918168 Whirlpool Refrigerator Door Hinge
34	SWEEP, WATER VALVE
35	B5759655 Whirlpool Refrigerator Gasket
