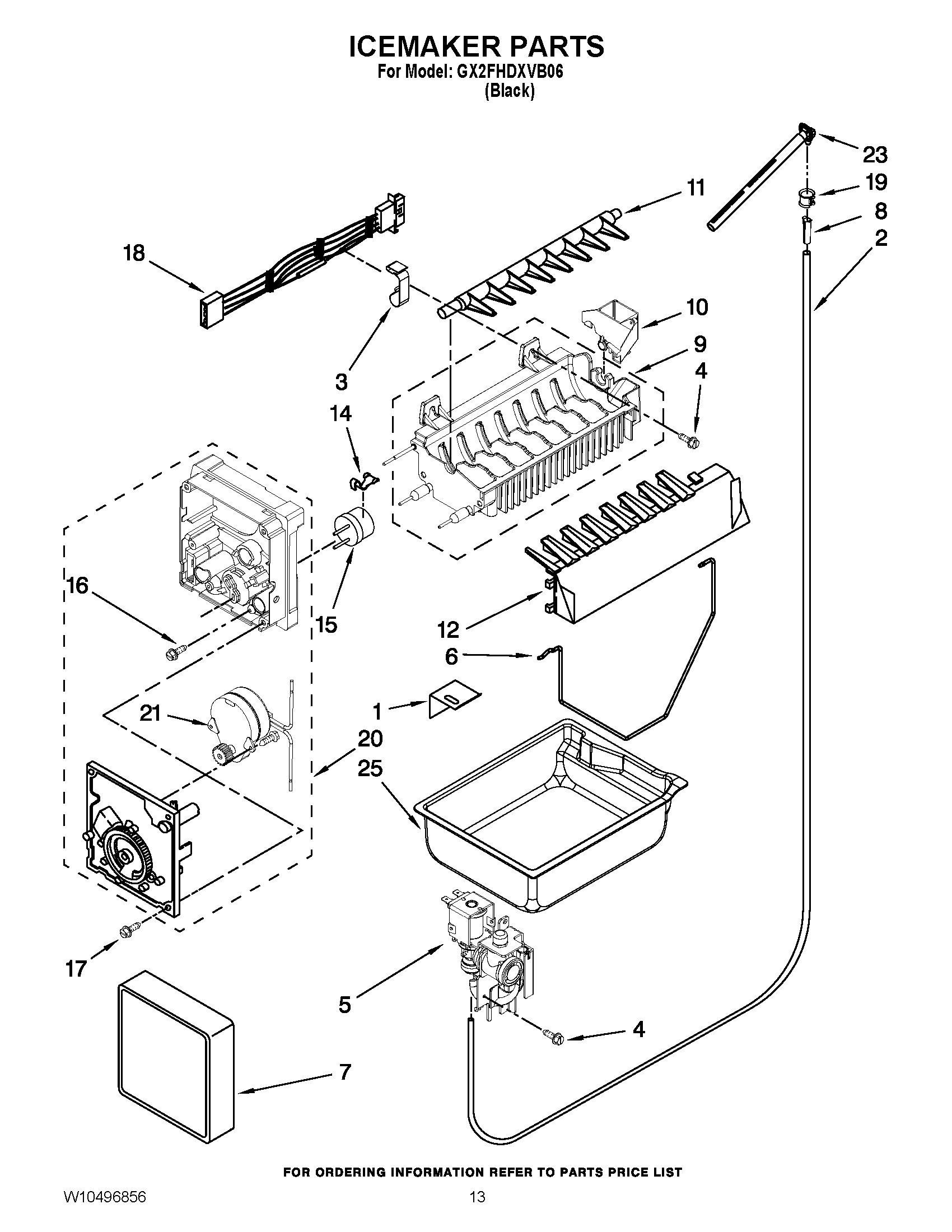

GX2FHDXVB06 08 – ICEMAKER PARTSadmin2025-04-26T12:05:34+00:00GX2FHDXVB06 08 – ICEMAKER PARTS ProductsPositionProduct1WP2256087 Whirlpool Refrigerator Bracket2W11120581 Whirlpool Refrigerator Water Tube3Clamp4W10001240 Whirlpool Refrigerator Screw5VALVE-REFR INLET6WPW10378255 Whirlpool Refrigerator Shut Off Arm7W10377174 Whirlpool Refrigerator Front Cover8WPA3223101 Whirlpool Refrigerator Insert PL9WPW10300025 Whirlpool Refrigerator Ice Mold10W10410073 Whirlpool Fill Cup Assembly11W10318914 Whirlpool Refrigerator Ejector Arm12WPW10122563 Whirlpool Refrigerator Stripper Arm14WP628379 Whirlpool Refrigerator Clip15WP627985 Whirlpool Icemaker Cycling Thermostat168533917 Whirlpool Refrigerator Screw17WP489464 Whirlpool Refrigerator Screw18WPW10458985 Whirlpool Wire Harness19WPM0114003 Whirlpool Microwave Speed Clip Clamp20WPW10281342 Whirlpool Refrigerator Motor Module21CABINET (NOT A SERVICEABLE PART)23W11176463 Whirlpool Refrigerator Water Tube25WPW10171529 Whirlpool Refrigerator Ice Pan100W10884390 Whirlpool Refrigerator Ice Maker Assembly
