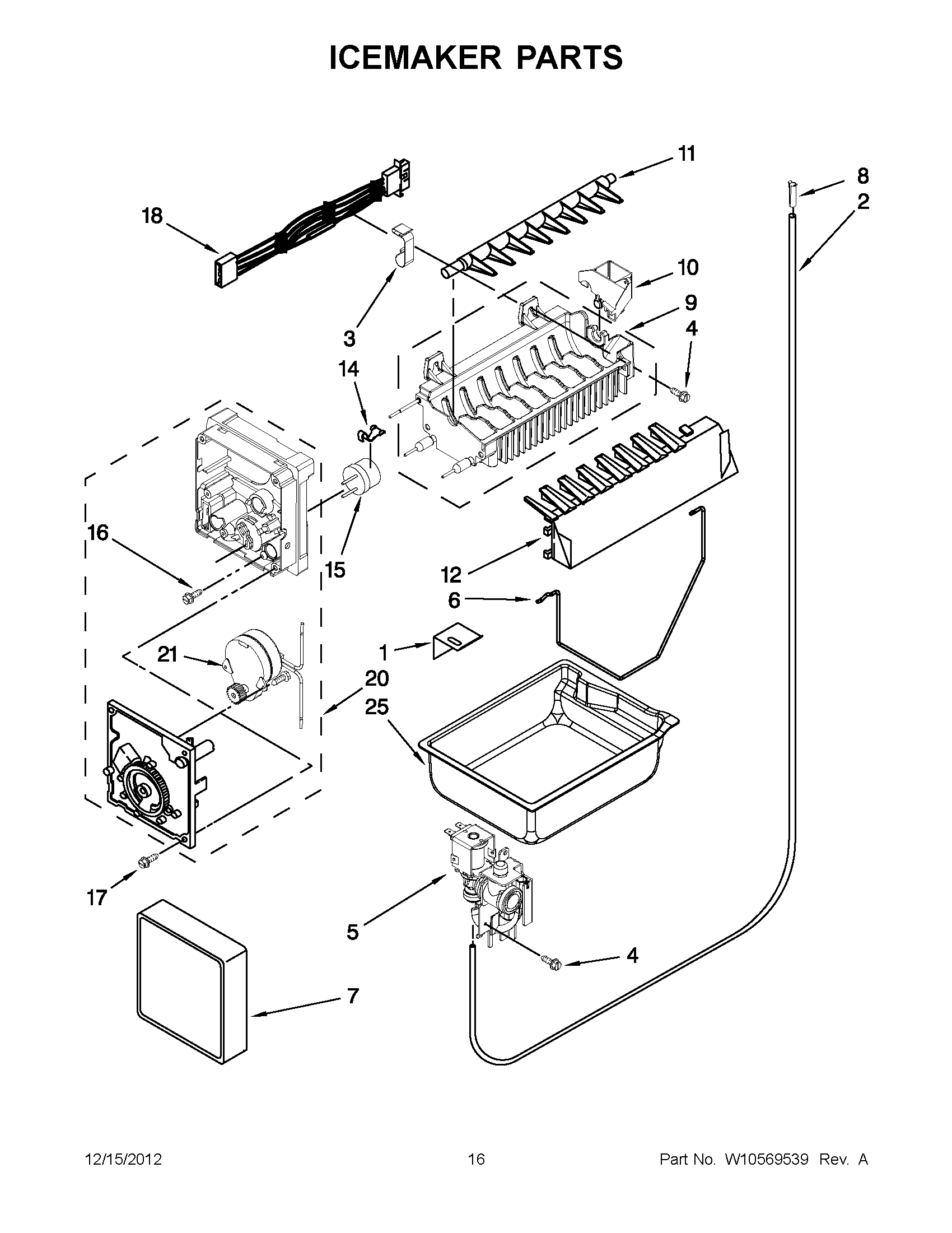

GX2FHDXVB08 08 – ICEMAKER PARTS

GX2FHDXVB08 08 – ICEMAKER PARTS

Written by

in

GX2FHDXVB08 08 – ICEMAKER PARTS

Products

PositionProduct
1WP2256087 Whirlpool Refrigerator Bracket
2W11120581 Whirlpool Refrigerator Water Tube
3Clamp
4W10001240 Whirlpool Refrigerator Screw
5VALVE-REFR INLET
6W11559683 Whirlpool Ice Level Arm
7W10377174 Whirlpool Refrigerator Front Cover
8WPA3223101 Whirlpool Refrigerator Insert PL
9WPW10300025 Whirlpool Refrigerator Ice Mold
10W10410073 Whirlpool Fill Cup Assembly
11W10318914 Whirlpool Refrigerator Ejector Arm
12WPW10122563 Whirlpool Refrigerator Stripper Arm
14WP628379 Whirlpool Refrigerator Clip
15WP627985 Whirlpool Icemaker Cycling Thermostat
168533917 Whirlpool Refrigerator Screw
17WP489464 Whirlpool Refrigerator Screw
18WPW10458985 Whirlpool Wire Harness
20WPW10281342 Whirlpool Refrigerator Motor Module
21CABINET (NOT A SERVICEABLE PART)
25WPW10171529 Whirlpool Refrigerator Ice Pan
100W10884390 Whirlpool Refrigerator Ice Maker Assembly
