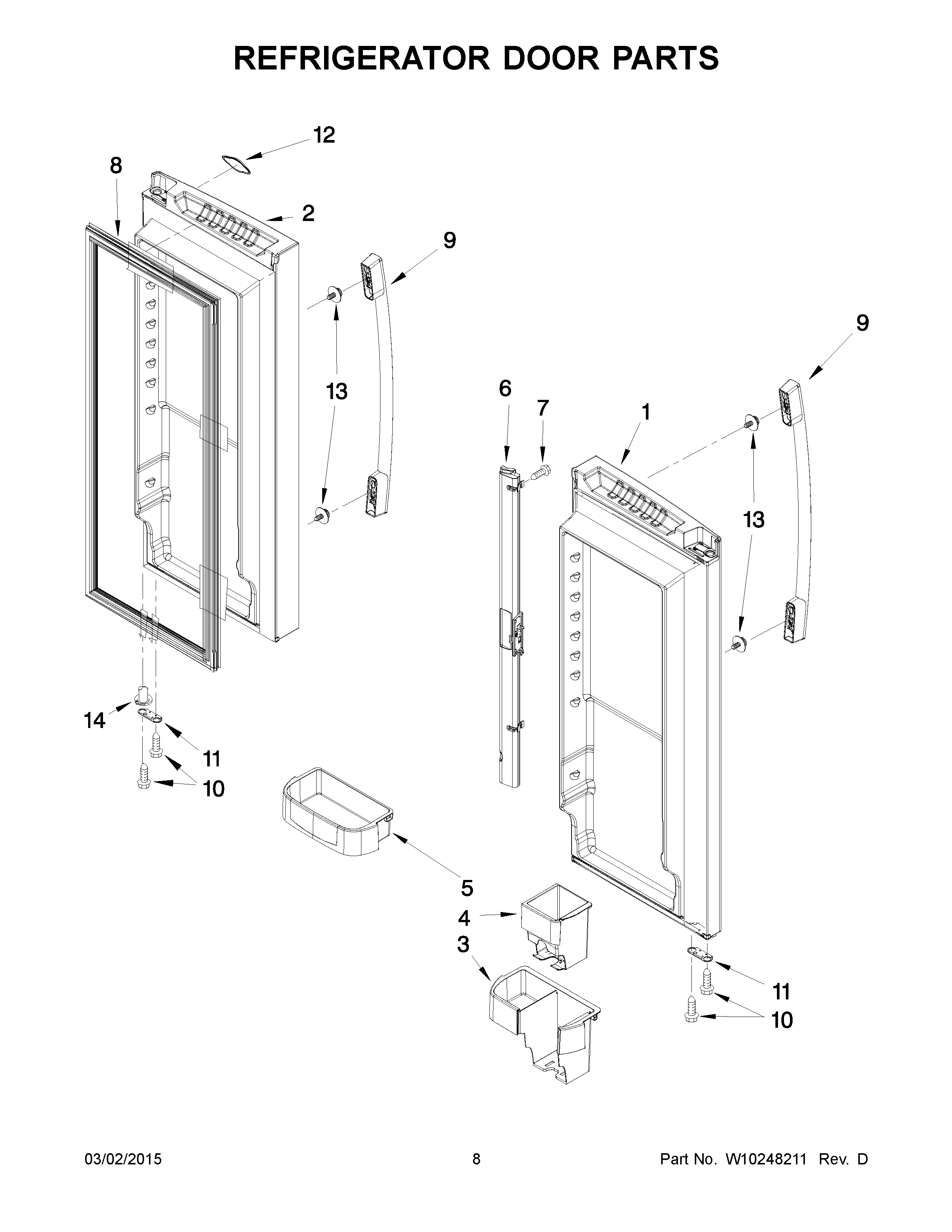

GX2FHDXVQ00 05 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1C	Door, Left (Universal Silver)
1E	Door, Left (Stainless)
1	Door, Left (White)
1A	Door, Left (Black)
1D	DOOR, LEFT (SATINA)
1B	DOOR, LEFT (BISCUIT/BISQUE)
2A	Door, Right (Black)
2B	DOOR, RIGHT (BISCUIT/BISQUE)
2D	DOOR, RIGHT (SATINA)
2C	Door, Right (Universal Silver)
2E	Door, Right (Stainless)
2	Door, Right (White)
3	BUCKET-CAN DISPNSR
4	WP13005401SP Whirlpool Can Rack
5	WPW10371194 Whirlpool Refrigerator Door Shelf Bin Basket Bucket
5A	WPW10351081 Whirlpool Refrigerator Cantilever Bin
6B	WP12722803AP Whirlpool Refrigerator Mullion Rail
6	RAIL-MULLN WHITE
6A	WP12722803B Whirlpool Door Guide
7	W11311945 Whirlpool Refrigerator Screw
8C	W10830189 Whirlpool Refrigerator Door Gasket
8B	W10830283 Whirlpool Refrigerator Door Gasket
8	W10830287 Whirlpool Refrigerator FIP Gasket
8A	W10830289 Whirlpool Refrigerator Gasket FIP
8D	GASKET-FIP
8E	GASKET-FIP
9A	W11351146 Whirlpool Refrigerator Handle
9C	W11351147 Whirlpool Refrigerator Handle
9	WPW10222984K Whirlpool Refrigerator Handle Assembly
9B	HANDLE (BISCUIT)
10	WP98165 Whirlpool Screw
11A	W11708403 Whirlpool Door Stop
11B	Stop, Door (Bisque)
11	12968202W Whirlpool Refrigerator Door Stop
11C	W11703060 Whirlpool Door Stop
12	Nameplate
13	WP12992902 Whirlpool Refrigerator Screw
14	WP67003638 Whirlpool Closing Cam
14A	WP67003639 Whirlpool Refrigerator Closer
14B	WP12028505AP Whirlpool Closing Cam
