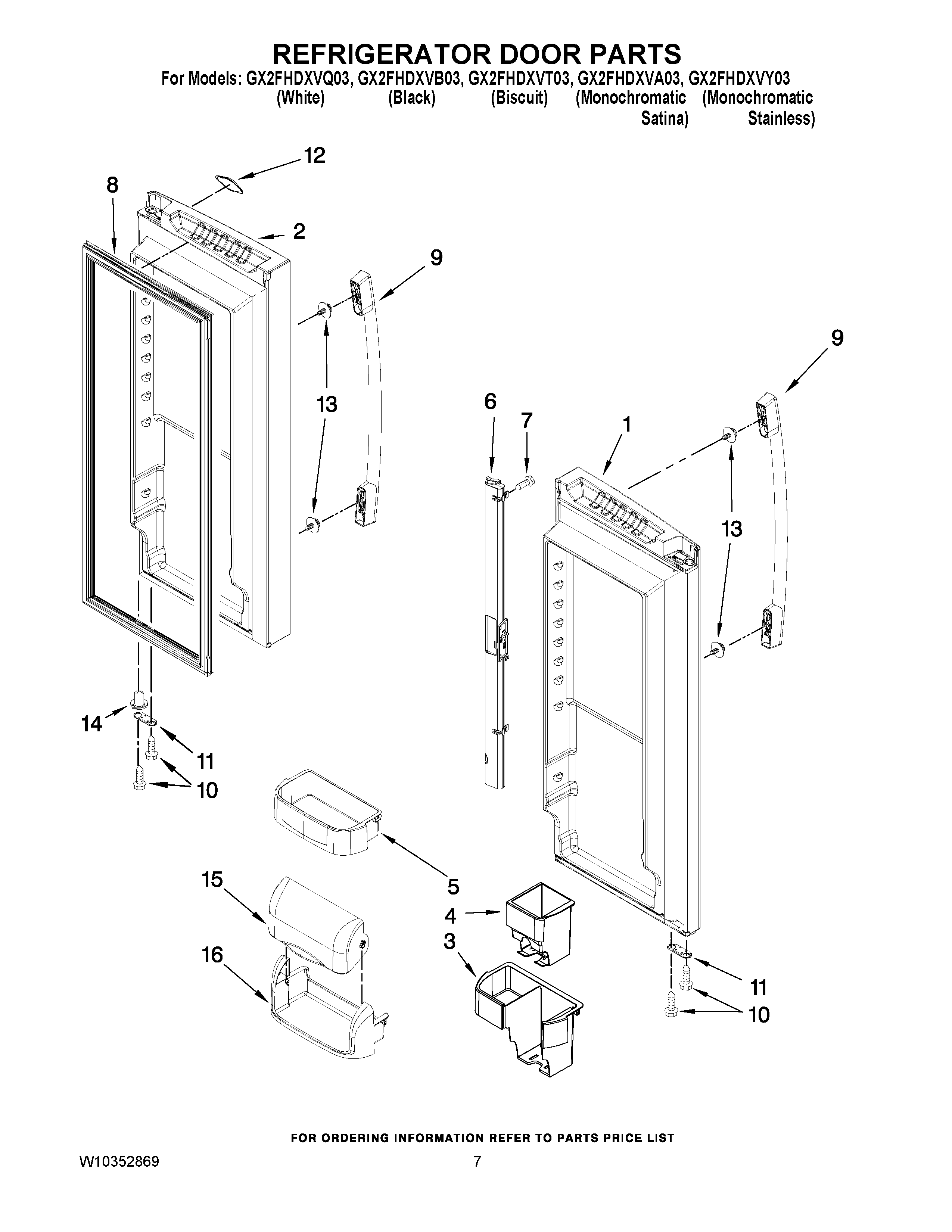

GX2FHDXVQ03 05 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	DOOR, LEFT (WHITE)
1	DOOR, LEFT (BLACK)
1	DOOR, LEFT (STAINLESS)
1	DOOR, LEFT (MONO SATINA)
1	DOOR, LEFT (BISCUIT)
2	DOOR, RIGHT (STAINLESS)
2	DOOR, RIGHT (WHITE)
2	DOOR, RIGHT (BLACK)
2	DOOR, RIGHT (BISCUIT)
2	DOOR, RIGHT (MONO SATINA)
3	BUCKET-CAN DISPNSR
4	WP13005401SP Whirlpool Can Rack
5	WPW10351081 Whirlpool Refrigerator Cantilever Bin
5	WPW10371194 Whirlpool Refrigerator Door Shelf Bin Basket Bucket
6	RAIL-MULLN WHITE
6	WP12722803B Whirlpool Door Guide
6	WP12722803AP Whirlpool Refrigerator Mullion Rail
7	W11311945 Whirlpool Refrigerator Screw
8	GASKET-FIP
8	GASKET-FIP
8	W10830189 Whirlpool Refrigerator Door Gasket
8	W10830283 Whirlpool Refrigerator Door Gasket
8	W10830287 Whirlpool Refrigerator FIP Gasket
8	W10830289 Whirlpool Refrigerator Gasket FIP
9	HANDLE, DOOR (BISCUIT)
9	WPW10222984K Whirlpool Refrigerator Handle Assembly
9	W11351147 Whirlpool Refrigerator Handle
9	W11351146 Whirlpool Refrigerator Handle
10	WP98165 Whirlpool Screw
11	Stop, Door (Bisque)
11	12968202W Whirlpool Refrigerator Door Stop
11	W11708403 Whirlpool Door Stop
11	W11703060 Whirlpool Door Stop
12	Nameplate
13	WP12992902 Whirlpool Refrigerator Screw
14	WP67003639 Whirlpool Refrigerator Closer
14	WP12028505AP Whirlpool Closing Cam
14	WP67003638 Whirlpool Closing Cam
15	WP67003637 Whirlpool Dairy Door
16	WP67001279 Whirlpool Refrigerator Dairy Tray
