GX2FHDXVQ04 05 – REFRIGERATOR DOOR PARTS

GX2FHDXVQ04 05 – REFRIGERATOR DOOR PARTS

Written by

in

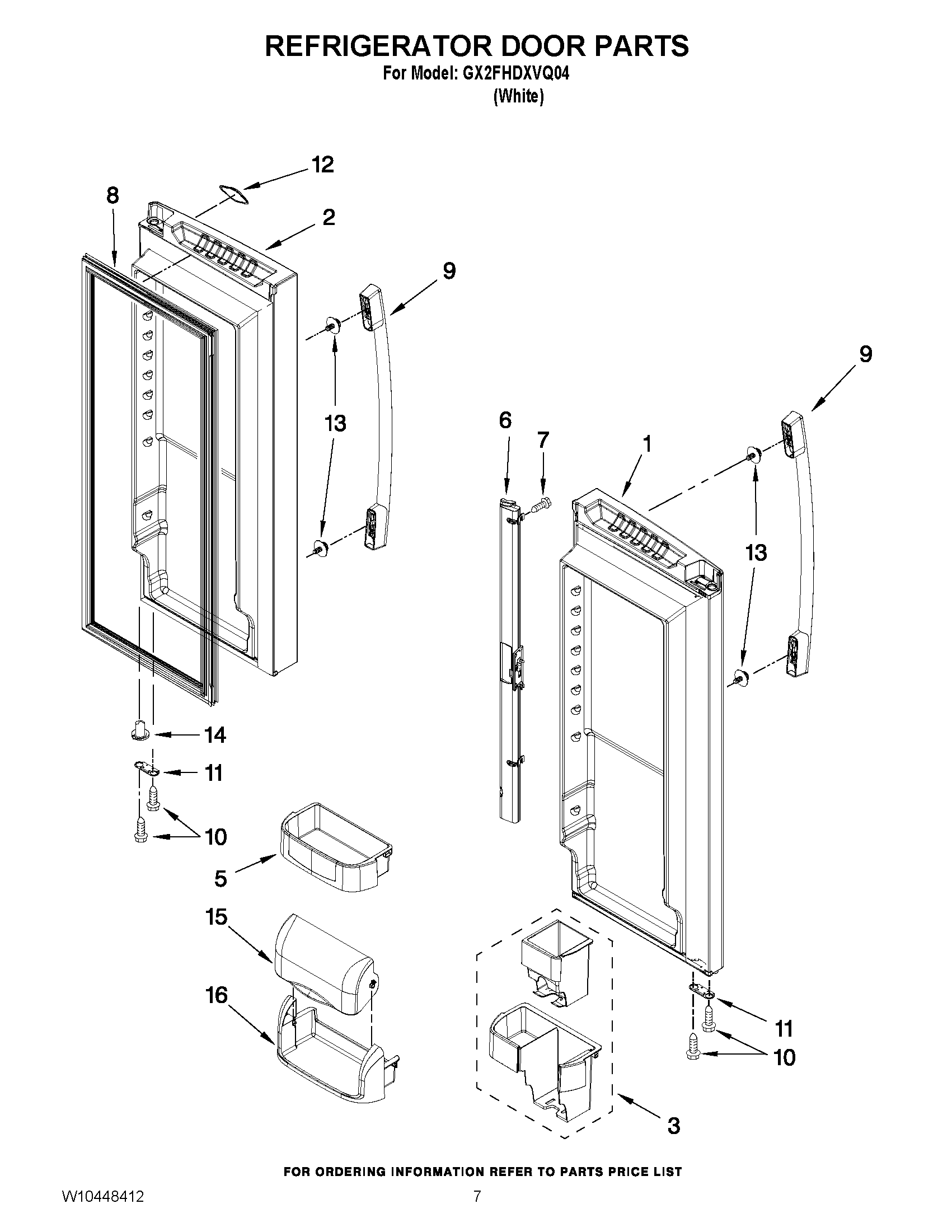

GX2FHDXVQ04 05 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1DOOR, LEFT (WHITE)
2DOOR, RIGHT (WHITE)
3Dispenser, Can
5WPW10351081 Whirlpool Refrigerator Cantilever Bin
5WPW10371194 Whirlpool Refrigerator Door Shelf Bin Basket Bucket
6RAIL-MULLN WHITE
7W11311945 Whirlpool Refrigerator Screw
8W10830189 Whirlpool Refrigerator Door Gasket
8W10830287 Whirlpool Refrigerator FIP Gasket
9WPW10222984K Whirlpool Refrigerator Handle Assembly
10WP98165 Whirlpool Screw
1112968202W Whirlpool Refrigerator Door Stop
12Nameplate
13WP12992902 Whirlpool Refrigerator Screw
14WP67003638 Whirlpool Closing Cam
15WP67003637 Whirlpool Dairy Door
16WP67001279 Whirlpool Refrigerator Dairy Tray
