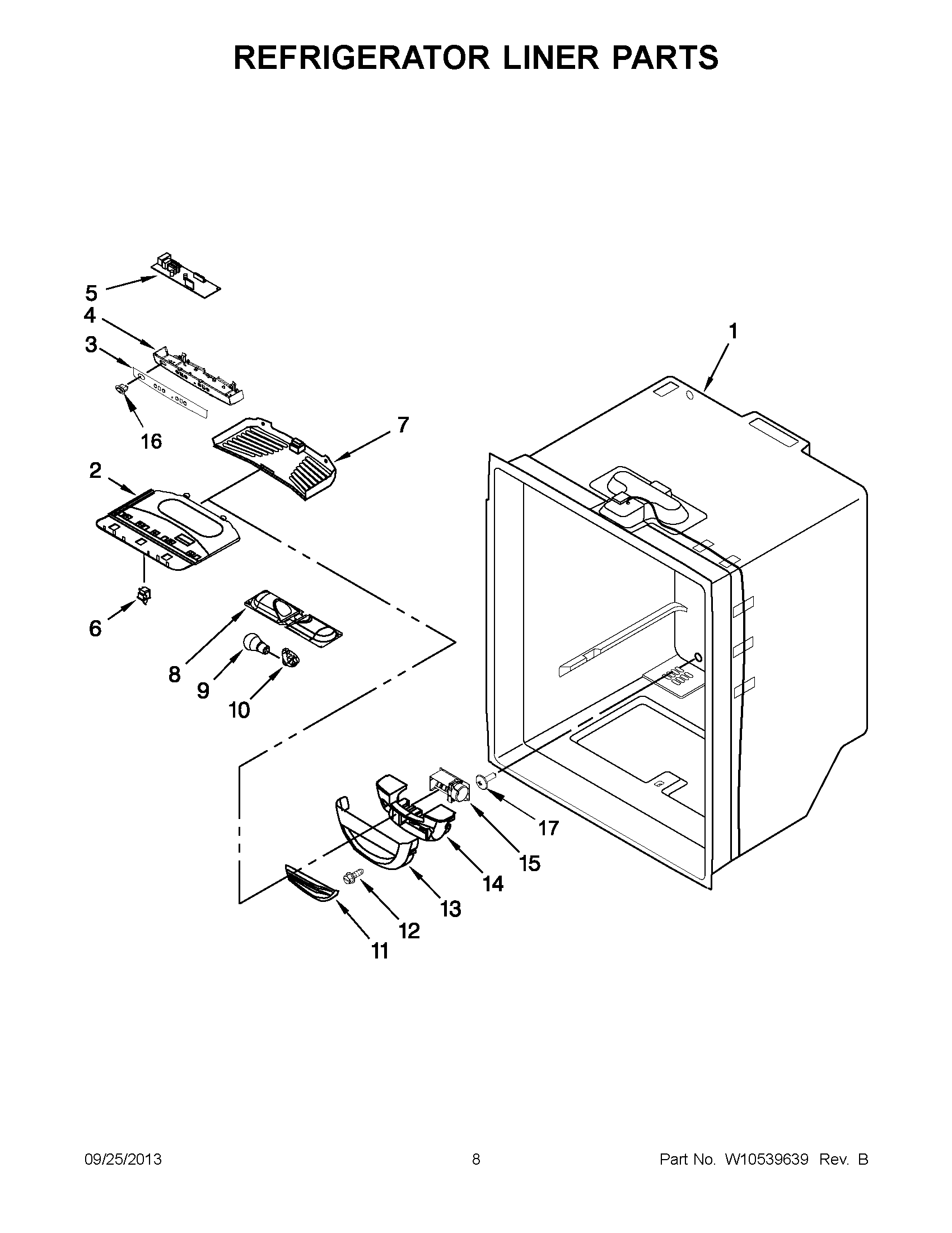

GX2FHDXVQ05 05 – REFRIGERATOR LINER PARTS

GX2FHDXVQ05 05 – REFRIGERATOR LINER PARTS

Written by

in

GX2FHDXVQ05 05 – REFRIGERATOR LINER PARTS

Products

PositionProduct
NICABINET (NOT A SERVICEABLE PART)
2W10464766 Whirlpool Refrigerator Housing Assembly
3OVERLAY
5WPW10503278 Whirlpool Refrigerator Electronic Control Board
6W11291138 Whirlpool Refrigerator Door Switch
7W11284721 Whirlpool Refrigerator Cover
8W10443023 Whirlpool Refrigerator Housing
9W11679940 Whirlpool Refrigerator Light Bulb Assembly
10W11447232 Whirlpool Refrigerator Socket
1167003900 Whirlpool Refrigerator Insert Damper Cover
12WP400021-1 Whirlpool Screw
13WP12806701 Whirlpool Refrigerator Box Cover
14INSULATION
15WPW10196393 Whirlpool Control Damper
16W11478401 Whirlpool Refrigerator Housing
17A3076901 Whirlpool Refrigerator Plug
