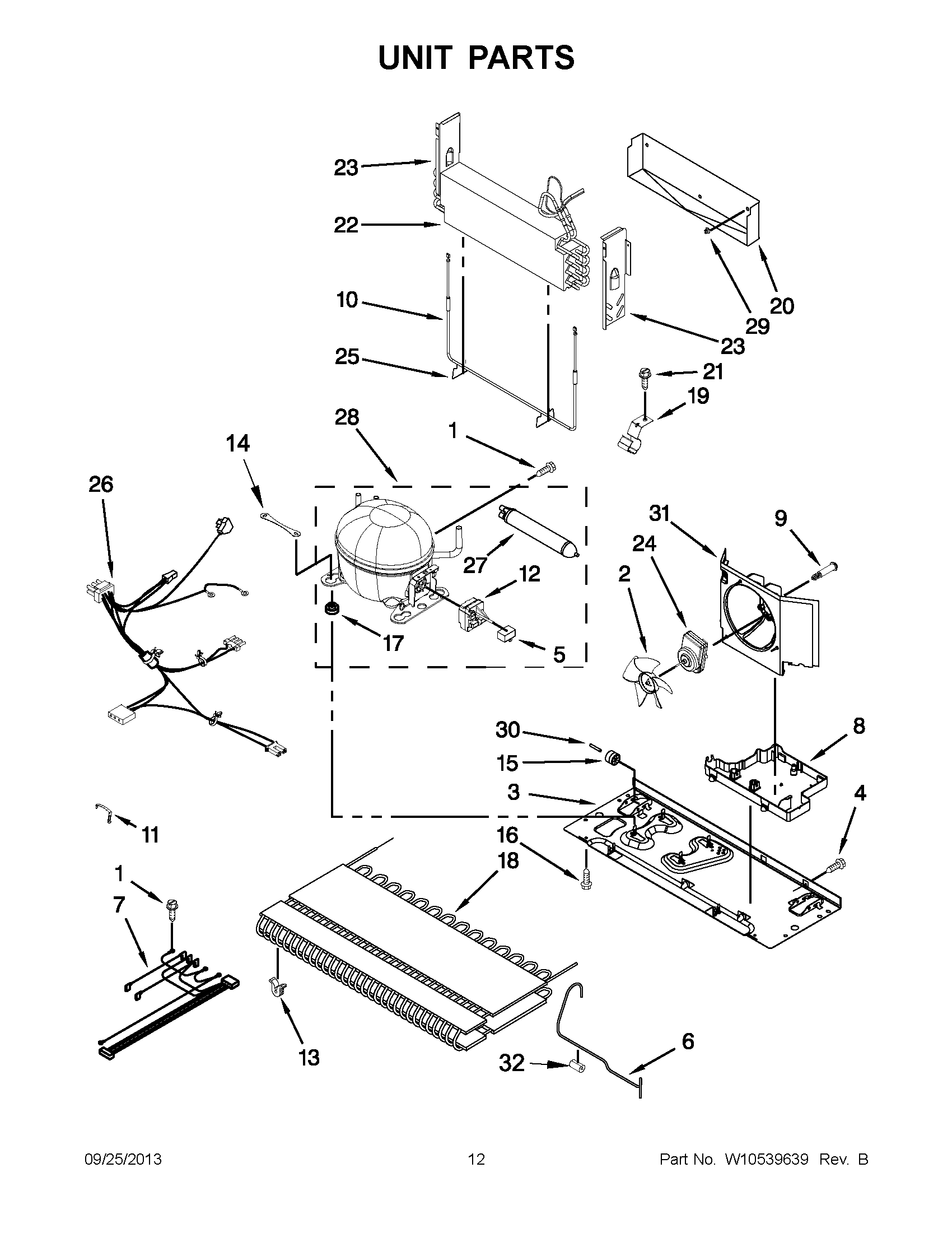

GX2FHDXVQ05 07 – UNIT PARTS

Products

Position	Product
NI	978030 Whirlpool Refrigerator Valve
NI	CABINET (NOT A SERVICEABLE PART)
NI	VALVE, ACCESS (1/2“)
NI	WP978025 Whirlpool Refrigerator Valve
NI	978027 Whirlpool Refrigerator Primary Valve
NI	978026 Whirlpool Refrigerator Primary Valve
NI	876764 Whirlpool Refrigerator Primary Valve
NI	VALVE, ACCESS (5/8“)
1	12992301 Whirlpool Refrigerator Screw
2	WP12825803 Whirlpool Refrigerator Fan Blade
3	W10480110 Whirlpool Refrigerator Plate
4	67006425 Whirlpool Refrigerator Screw
5	WPW10662129 Whirlpool Refrigerator Run Capacitor
6	WPW10233570 Whirlpool Refrigerator Tube
7	W11260592 Whirlpool Refrigerator Wire Harness
8	WPW10655367 Whirlpool Refrigerator Drip Pan
9	W10829281 Whirlpool Refrigerator Screw
10	HEATER
11	W11092534 Whirlpool Refrigerator Clip
12	WP2320150 Whirlpool Refrigerator Start Device
13	WPW10137529 Whirlpool Refrigerator Grommet
14	W10236396 Whirlpool Refrigerator Strap
15	WP67005149 Whirlpool Roller
16	Screw
17	WPW10169124 Whirlpool Refrigerator Grommet
18	WPW10346420 Whirlpool Refrigerator Condenser
19	W10281329 Whirlpool Clamp
20	WPW10292802 Whirlpool Refrigerator Drip Tray
21	WP33001882 Whirlpool Screw
22	W11459354 Whirlpool Refrigerator Evaporator
23	Dam (Left Side)
23	Dam (Right Side)
24	W11613295 Whirlpool Condenser Motor
25	W11673433 Whirlpool Clip
26	WPW10234024 Whirlpool Refrigerator Wire Harness
27	WPW10143759 Whirlpool Dryer Filter
28	W10233960 Whirlpool Refrigerator Compressor
29	CLIP, EVAP (2)
30	67006434 Whirlpool Axle Pin
31	W11556315 Whirlpool Shroud
32	W10852725 Whirlpool Refrigerator Grommet
