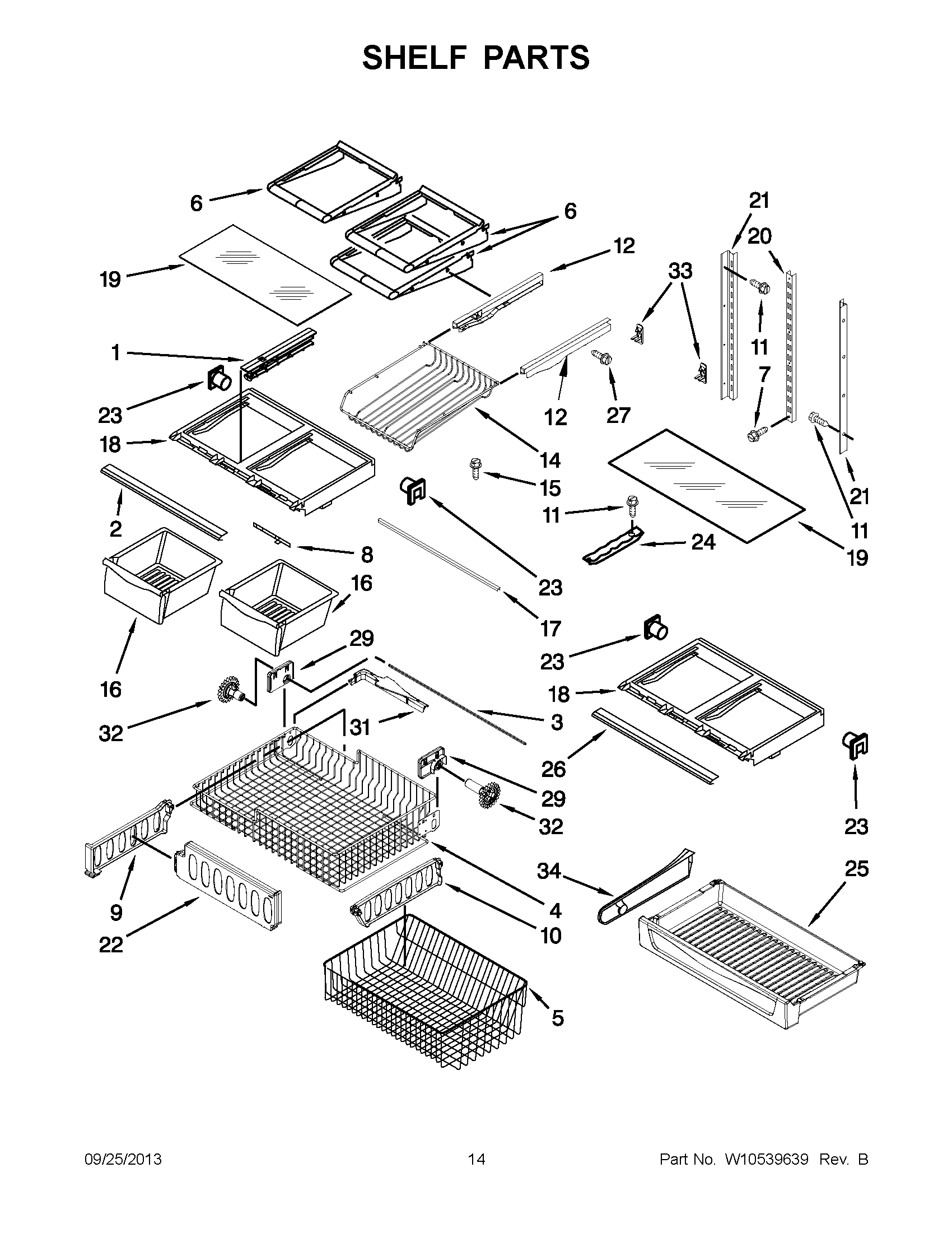

GX2FHDXVQ05 08 – SHELF PARTS

GX2FHDXVQ05 08 – SHELF PARTS

Written by

in

GX2FHDXVQ05 08 – SHELF PARTS

Products

PositionProduct
1RAIL-CENTR CRISPER
2WPW10231482 Whirlpool Refrigerator Shelf Trim
3W10802339 Whirlpool Refrigerator Shaft
4W10348238 Whirlpool Refrigerator Freezer Basket
5WPW10503183 Whirlpool Freezer Basket
6W11402523 Whirlpool Refrigerator Glass Shelf
7W10215666 Whirlpool Refrigerator Screw
8SLIDE
9W10241046 Whirlpool Refrigerator Divider
10W10847995 Whirlpool Divider Assembly
1167006425 Whirlpool Refrigerator Screw
12WP67001054 Whirlpool Left Glide
12WP67001053 Whirlpool Drawer Glide
14WP67001314 Whirlpool Snack Pan
16WP67002633 Whirlpool Crisper Pan
17WP12227303WD Whirlpool Refrigerator Crisper Brace
18WPW10568041 Whirlpool Refrigerator Crisper Shelf Drawer Cover
19WP67006878 Whirlpool Refrigerator Crisper Glass
20W10273463 Whirlpool Refrigerator Ladder
21W10251969 Whirlpool Refrigerator Ladder
22W10311695 Whirlpool Refrigerator Divider
23WP67001721 Whirlpool Refrigerator Support
23WP67001722 Whirlpool Refrigerator Support
24WP67001719 Whirlpool Refrigerator Track
25DRAWER, PANTRY
26W10656986 Whirlpool Refrigerator Shelf Trim
27SCREW
29W10348260 Whirlpool Refrigerator Bracket
29W10348259 Whirlpool Refrigerator Bracket Assembly
31W10149389 Whirlpool Refrigerator Handle
32WPW10474716 Whirlpool Refrigerator Gear
32WPW10474715 Whirlpool Refrigerator Gear
33WP67001716 Whirlpool Refrigerator Shelf Support Clip Ladder Hook
34DIVIDER-PANTRY
