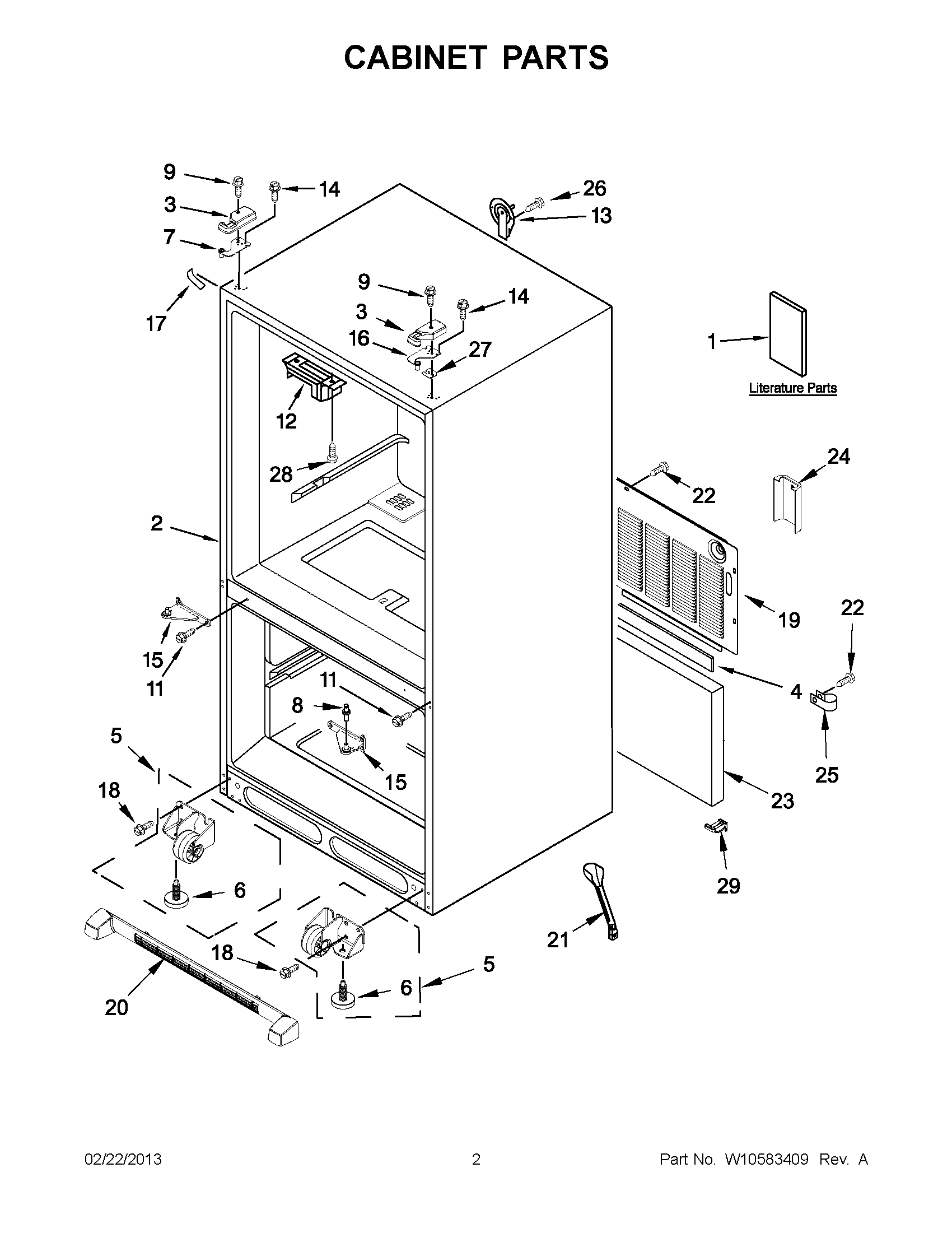

GX2FHDXVQ06 01 – CABINET PARTS

GX2FHDXVQ06 01 – CABINET PARTS

Written by

in

GX2FHDXVQ06 01 – CABINET PARTS

Products

PositionProduct
1ENERGY GUIDE
1USE & CARE GUIDE
1TECH SHEET
2CABINET (NOT A SERVICEABLE PART)
367005958 Whirlpool Refrigerator Top Hinge Cover (RT-WHT)
3WPW10337634 Whirlpool Refrigerator Cover
4B5759655 Whirlpool Refrigerator Gasket
5WPW10515762 Whirlpool Refrigerator Cabinet Roller
5WPW10515763 Whirlpool Refrigerator Cabinet Roller
6WPW10141622 Whirlpool Leveler
7W11592375 Whirlpool Door Hinge
8WP67006642 Whirlpool Refrigerator Pin
9WP8281196 Whirlpool Screw
11WP489349 Whirlpool Refrigerator Screw
12WP67003405 Whirlpool Pivot Block
1312726003 Whirlpool Refrigerator Water Cover
1513000002WD Whirlpool Refrigerator Door Hinge
15W10918113 Whirlpool Refrigerator Door Hinge
16W11592374 Whirlpool Refrigerator Top Door Hinge
1712587703W Whirlpool Refrigerator Cover
1867006564 Whirlpool Refrigerator Screw
19WPW10210979 Whirlpool Refrigerator Back Cover
20WPW10534161 Whirlpool Refrigerator Front Grille
21W10619951 Whirlpool Drain Tube with Grommet
2267006425 Whirlpool Refrigerator Screw
23INSULATION, SOUND
24W10208592 Whirlpool Refrigerator Valve Cover
25W11456069 Whirlpool Refrigerator Clamp
26WP98165 Whirlpool Screw
2712999502 Whirlpool Refrigerator Hinge Shim
28SCREW
29W10485986 Whirlpool Tube Clamp
