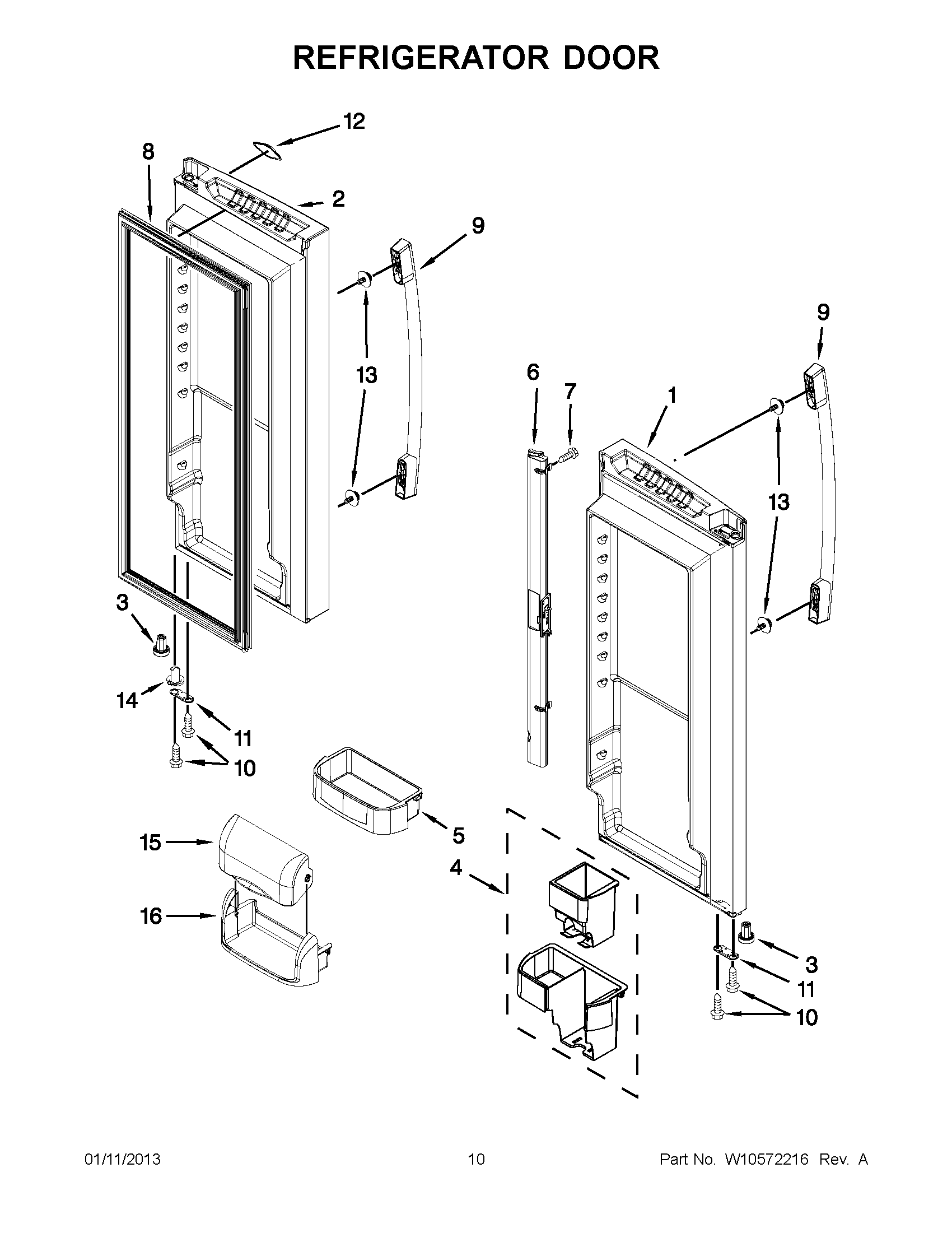

GX2FHDXVY010 05 – REFRIGERATOR DOOR

Products

Position	Product
1	13107883SQ Whirlpool Refrigerator Foam Assembly
2	13107856SQ Whirlpool Stainless Steel Door
3	BUSHING, DOOR (BOTTOM LEFT)
3	W10853652 Whirlpool Refrigerator Hinge Bushing
4	Dispenser, Can
5	WPW10371194 Whirlpool Refrigerator Door Shelf Bin Basket Bucket
5	WPW10351081 Whirlpool Refrigerator Cantilever Bin
5	WP12918704 Whirlpool Refrigerator Cantilever Bin
6	WP12722803AP Whirlpool Refrigerator Mullion Rail
7	W11311945 Whirlpool Refrigerator Screw
8	W10830283 Whirlpool Refrigerator Door Gasket
8	GASKET-FIP
9	W11351147 Whirlpool Refrigerator Handle
10	WP98165 Whirlpool Screw
11	W11703060 Whirlpool Door Stop
12	WPW10393265 Whirlpool Refrigerator Nameplate
13	WPW10288153 Whirlpool Refrigerator Screw
14	WP12028505AP Whirlpool Closing Cam
15	WP67003637 Whirlpool Dairy Door
16	WP67001279 Whirlpool Refrigerator Dairy Tray
