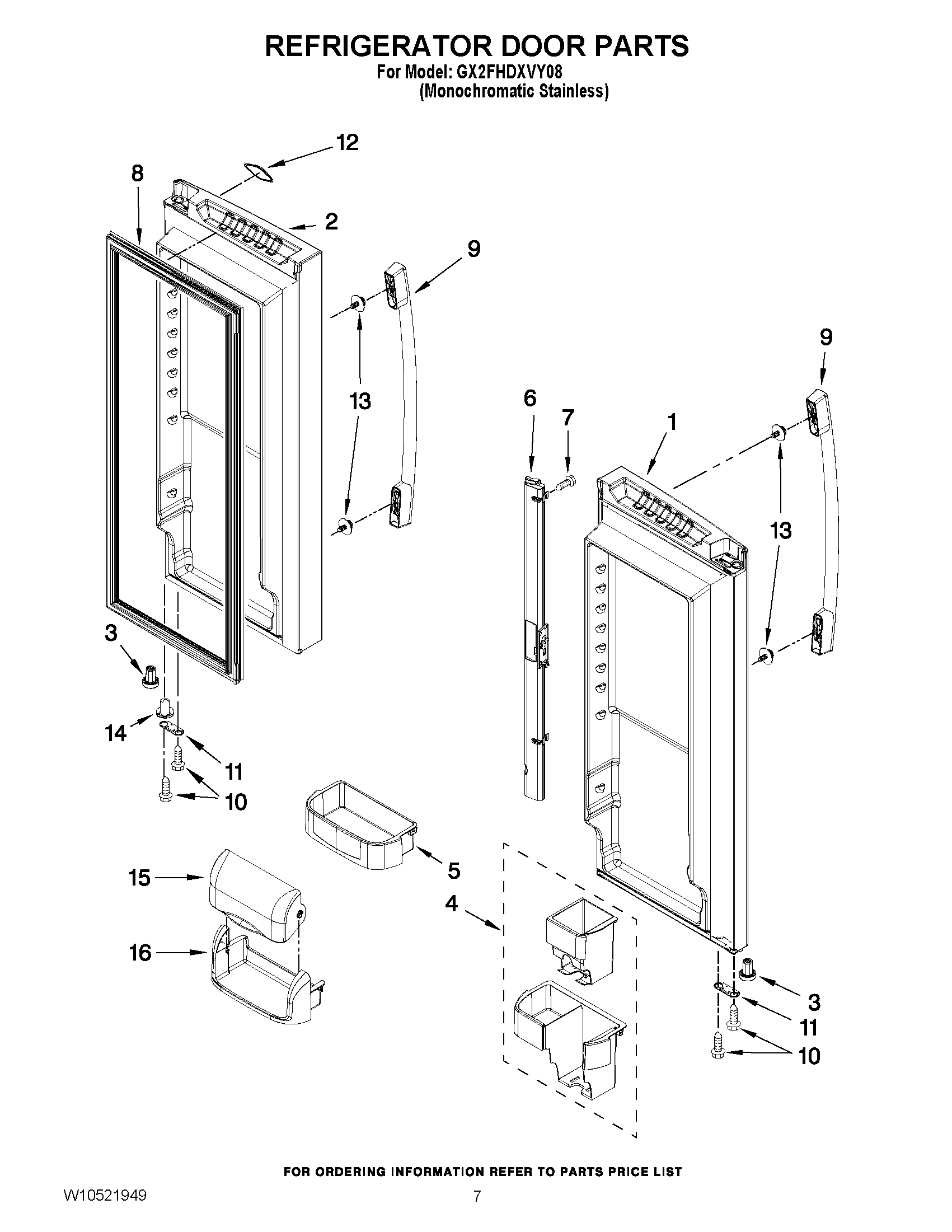

GX2FHDXVY08 05 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1DOOR, LEFT (STAINLESS)
213107856SQ Whirlpool Stainless Steel Door
3BUSHING, DOOR (BOTTOM LEFT)
3W10853652 Whirlpool Refrigerator Hinge Bushing
4Dispenser, Can
5WPW10371194 Whirlpool Refrigerator Door Shelf Bin Basket Bucket
5WPW10351081 Whirlpool Refrigerator Cantilever Bin
5WP12918704 Whirlpool Refrigerator Cantilever Bin
6WP12722803AP Whirlpool Refrigerator Mullion Rail
7W11311945 Whirlpool Refrigerator Screw
8W10830283 Whirlpool Refrigerator Door Gasket
8GASKET-FIP
9W11351147 Whirlpool Refrigerator Handle
10WP98165 Whirlpool Screw
11W11703060 Whirlpool Door Stop
12WPW10393265 Whirlpool Refrigerator Nameplate
13WPW10288153 Whirlpool Refrigerator Screw
14WP12028505AP Whirlpool Closing Cam
15WP67003637 Whirlpool Dairy Door
16WP67001279 Whirlpool Refrigerator Dairy Tray
