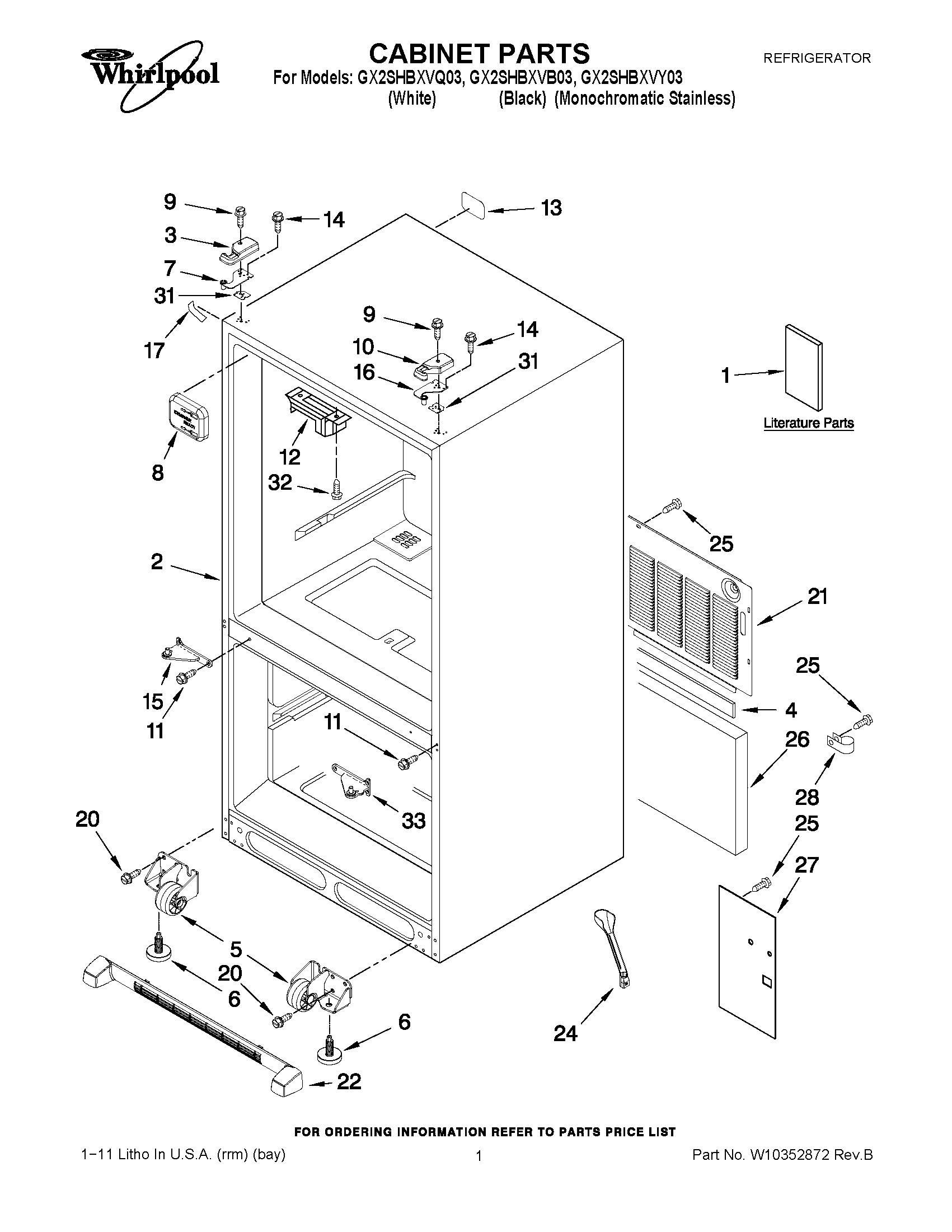

GX2SHBXVB03 01 – CABINET PARTS

GX2SHBXVB03 01 – CABINET PARTS

Written by

in

GX2SHBXVB03 01 – CABINET PARTS

Products

PositionProduct
1ENERGY GUIDE
1TECH SHEET
1Use & Care Guide
2CABINET (NOT A SERVICEABLE PART)
3W10337647 Whirlpool Refrigerator Cover
3WPW10337634 Whirlpool Refrigerator Cover
3WPW10337648 Whirlpool Refrigerator Cover
4B5759655 Whirlpool Refrigerator Gasket
5WPW10515762 Whirlpool Refrigerator Cabinet Roller
5WPW10515763 Whirlpool Refrigerator Cabinet Roller
6WPW10141622 Whirlpool Leveler
7W11592375 Whirlpool Door Hinge
8WP67001098 Whirlpool Refrigerator Tube Cover
9WP8281196 Whirlpool Screw
10WPW10191117 Whirlpool Refrigerator Cover
10WP67005956 Whirlpool Refrigerator Cover
1067005958 Whirlpool Refrigerator Top Hinge Cover (RT-WHT)
11WP489349 Whirlpool Refrigerator Screw
12WP67003405 Whirlpool Pivot Block
13W11685757 Whirlpool Label
15W10918164 Whirlpool Refrigerator Door Hinge
15W10918113 Whirlpool Refrigerator Door Hinge
15W10917988 Whirlpool Refrigerator Door Hinge
16W11592374 Whirlpool Refrigerator Top Door Hinge
17WP12587703AP Whirlpool Refrigerator Filler
1712587703W Whirlpool Refrigerator Cover
1767003485 Whirlpool Refrigerator Corner Cover (Black)
2067006564 Whirlpool Refrigerator Screw
21WPW10210979 Whirlpool Refrigerator Back Cover
22WPW10534160 Whirlpool Refrigerator Front Grille
22WPW10534162 Whirlpool Refrigerator Front Grille
22WPW10534161 Whirlpool Refrigerator Front Grille
24W10619951 Whirlpool Drain Tube with Grommet
2567006425 Whirlpool Refrigerator Screw
26INSULATION, SOUND
27W11684617 Whirlpool Valve Cover
28W10833902 Whirlpool Refrigerator Clamp
3112999501 Whirlpool Refrigerator Hinge Shim
3112999502 Whirlpool Refrigerator Hinge Shim
32W10854958 Whirlpool Refrigerator Screw
3313000002WD Whirlpool Refrigerator Door Hinge
33W10918168 Whirlpool Refrigerator Door Hinge
