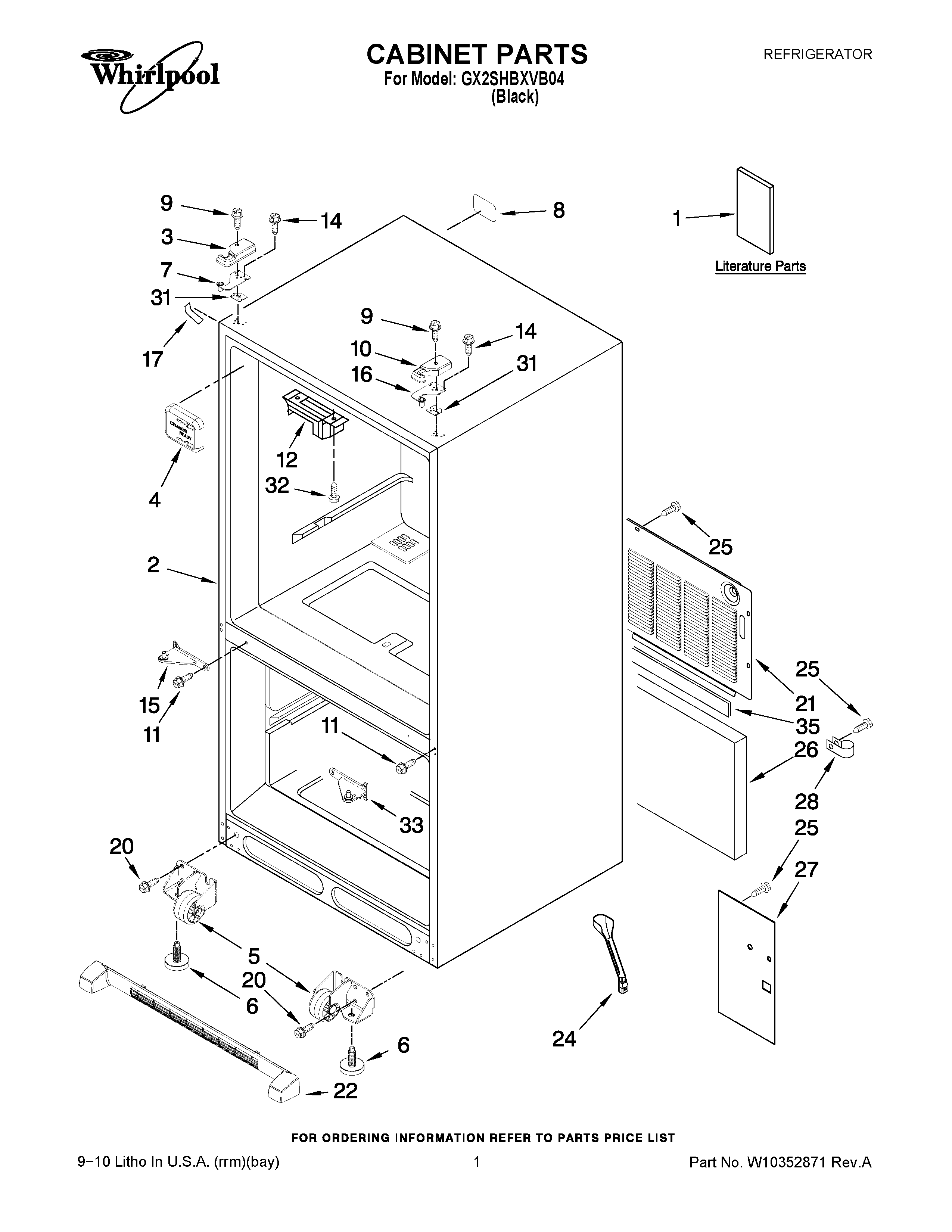

GX2SHBXVB04 01 – CABINET PARTS

Products

Position	Product
1	ENERGY GUIDE
1	Use & Care Guide
1	TECH SHEET
2	CABINET (NOT A SERVICEABLE PART)
3	W10337647 Whirlpool Refrigerator Cover
4	WP67001098 Whirlpool Refrigerator Tube Cover
5	WPW10515763 Whirlpool Refrigerator Cabinet Roller
5	WPW10515762 Whirlpool Refrigerator Cabinet Roller
6	WPW10141622 Whirlpool Leveler
7	W11592375 Whirlpool Door Hinge
8	W11685757 Whirlpool Label
9	WP8281196 Whirlpool Screw
10	WP67005956 Whirlpool Refrigerator Cover
11	WP489349 Whirlpool Refrigerator Screw
12	WP67003405 Whirlpool Pivot Block
15	W10918164 Whirlpool Refrigerator Door Hinge
16	W11592374 Whirlpool Refrigerator Top Door Hinge
17	67003485 Whirlpool Refrigerator Corner Cover (Black)
20	67006564 Whirlpool Refrigerator Screw
21	WPW10210979 Whirlpool Refrigerator Back Cover
22	WPW10534162 Whirlpool Refrigerator Front Grille
24	W10619951 Whirlpool Drain Tube with Grommet
25	67006425 Whirlpool Refrigerator Screw
26	INSULATION, SOUND
27	W11684617 Whirlpool Valve Cover
28	W10833902 Whirlpool Refrigerator Clamp
31	12999502 Whirlpool Refrigerator Hinge Shim
31	12999501 Whirlpool Refrigerator Hinge Shim
32	W10854958 Whirlpool Refrigerator Screw
33	W10918168 Whirlpool Refrigerator Door Hinge
35	B5759655 Whirlpool Refrigerator Gasket
