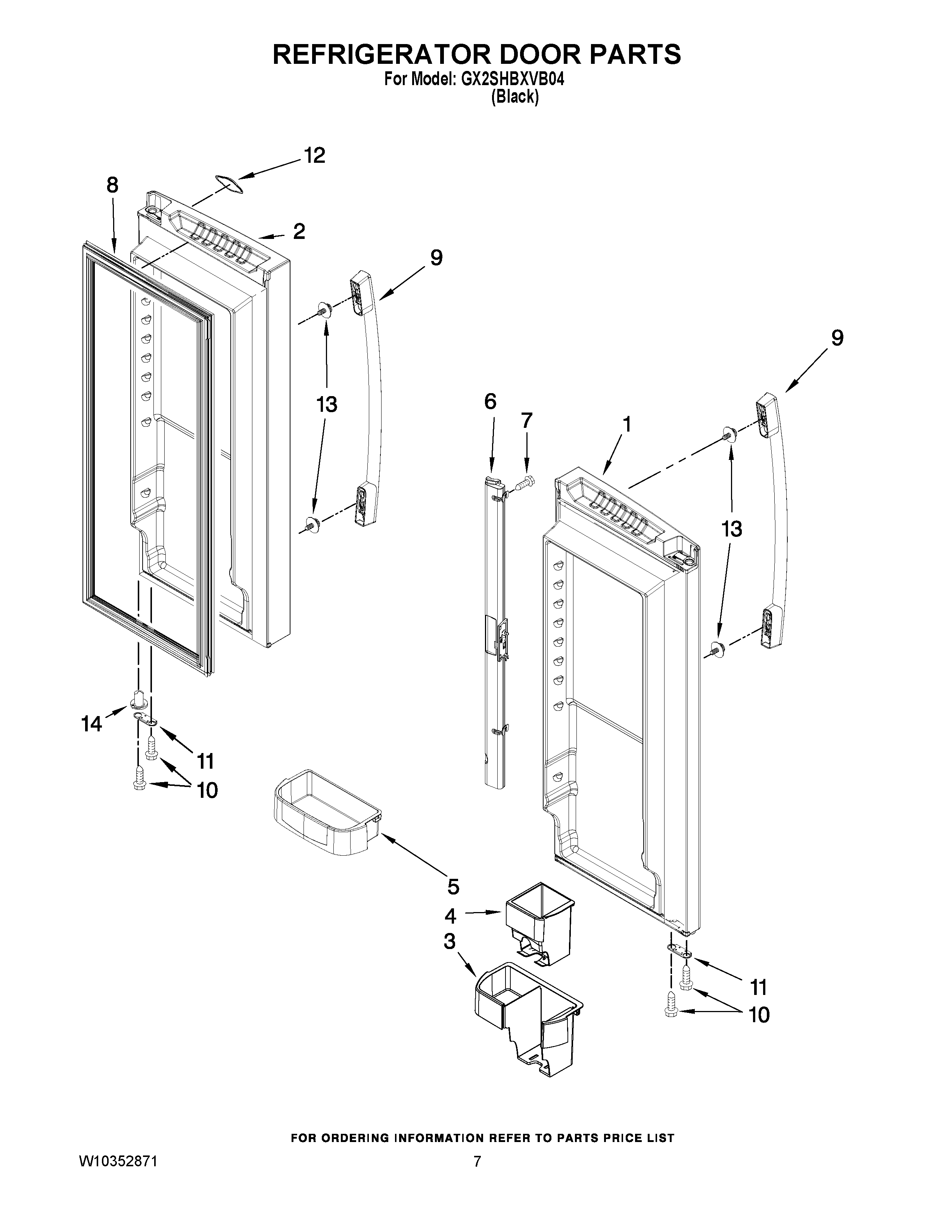

GX2SHBXVB04 05 – REFRIGERATOR DOOR PARTS

GX2SHBXVB04 05 – REFRIGERATOR DOOR PARTS

Written by

in

GX2SHBXVB04 05 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1DOOR, LEFT (BLACK)
2DOOR, RIGHT (BLACK)
3BUCKET-CAN DISPNSR
4WP13005401SP Whirlpool Can Rack
5WP12918704 Whirlpool Refrigerator Cantilever Bin
5WPW10351081 Whirlpool Refrigerator Cantilever Bin
5WPW10371194 Whirlpool Refrigerator Door Shelf Bin Basket Bucket
6WP12722803B Whirlpool Door Guide
7W11311945 Whirlpool Refrigerator Screw
8GASKET-FIP
8W10830289 Whirlpool Refrigerator Gasket FIP
9W11351146 Whirlpool Refrigerator Handle
10WP98165 Whirlpool Screw
11W11708403 Whirlpool Door Stop
12Nameplate
13WP12992902 Whirlpool Refrigerator Screw
14WP67003639 Whirlpool Refrigerator Closer
