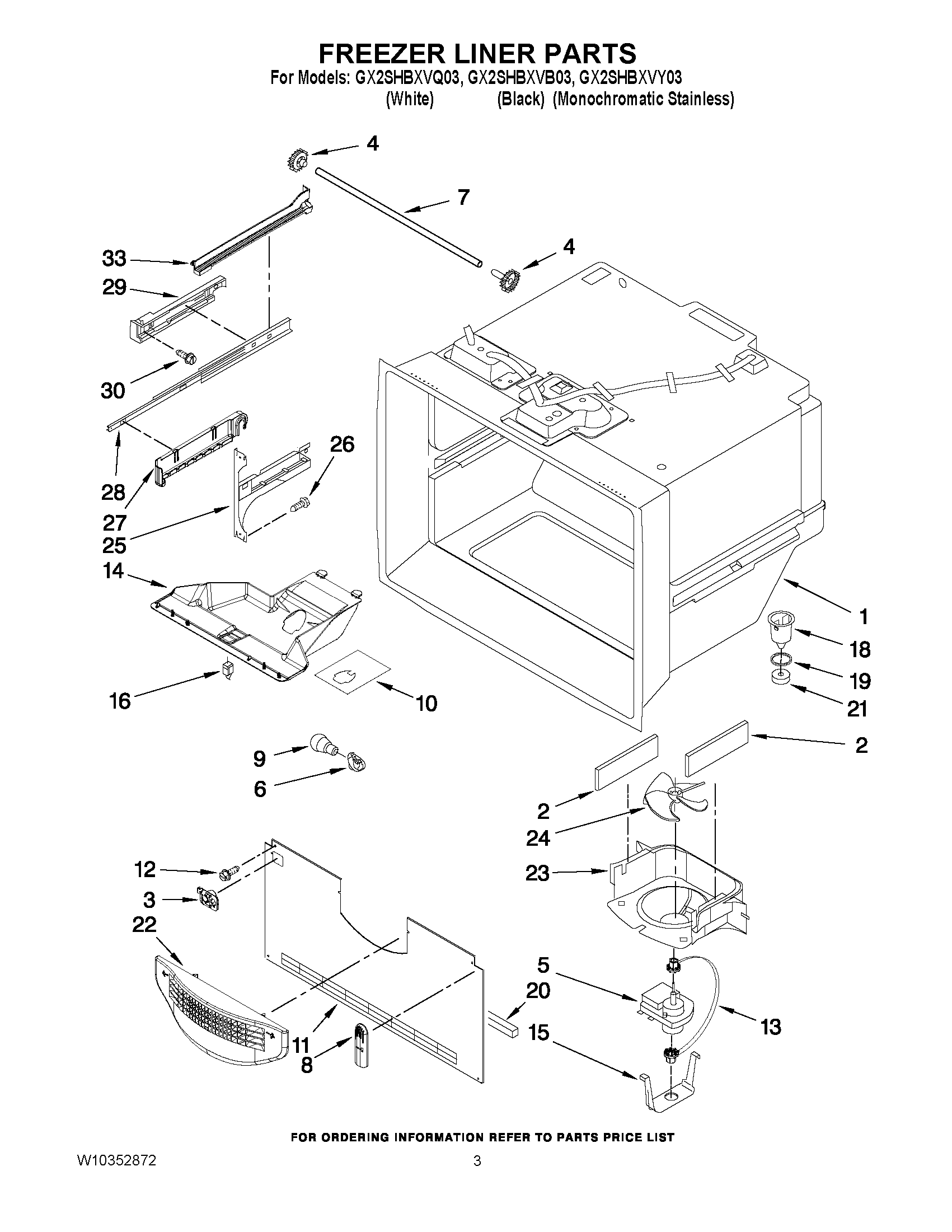

GX2SHBXVQ03 02 – FREEZER LINER PARTS

GX2SHBXVQ03 02 – FREEZER LINER PARTS

Written by

in

GX2SHBXVQ03 02 – FREEZER LINER PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
2W10856123 Whirlpool Refrigerator Gasket
3W11448709 Whirlpool Refrigerator Bracket
412002497 Whirlpool Refrigerator Drawer Gear Kit
5WPW10128551 Whirlpool Evaporator Fan Motor
6W11447232 Whirlpool Refrigerator Socket
7W11715937 Whirlpool Shaft
8WP67003924 Whirlpool Refrigerator Cover
9W11679940 Whirlpool Refrigerator Light Bulb Assembly
10W11469652 Whirlpool Refrigerator Shield
11W10308415 Whirlpool Refrigerator Evaporator Cover
1267006425 Whirlpool Refrigerator Screw
13W10121318 Whirlpool Refrigerator Grommet
14WPW10277025 Whirlpool Refrigerator Housing
15CLIP, EVAPORATOR MOTOR
16W11396033 Whirlpool Refrigerator Rocker Switch
18W10815413 Whirlpool Refrigerator Funnel
19WPM0500703 Whirlpool Refrigerator O-Ring Seal
20W11451451 Whirlpool Refrigerator Gasket
21WPB8381501 Whirlpool Refrigerator Door Gasket
22WPW10175909 Whirlpool Grille Assembly
23WPW10167023 Whirlpool Refrigerator Shroud
24WP2169142 Whirlpool Fan Blade
25WPW10330991 Whirlpool Refrigerator Bracket
25WPW10330993 Whirlpool Refrigerator Bracket
26WP98165 Whirlpool Screw
27WPW10280613 Whirlpool Refrigerator Bracket
27WPW10280608 Whirlpool Refrigerator Bracket
28W11658402 Whirlpool Drawer Slide Rail
29WPW10284685 Whirlpool Refrigerator Bracket
29WPW10284684 Whirlpool Refrigerator Bracket
30WP489474 Whirlpool Refrigerator Screw
33W11489993 Whirlpool Refrigerator Rail
33W11489994 Whirlpool Refrigerator Rail
