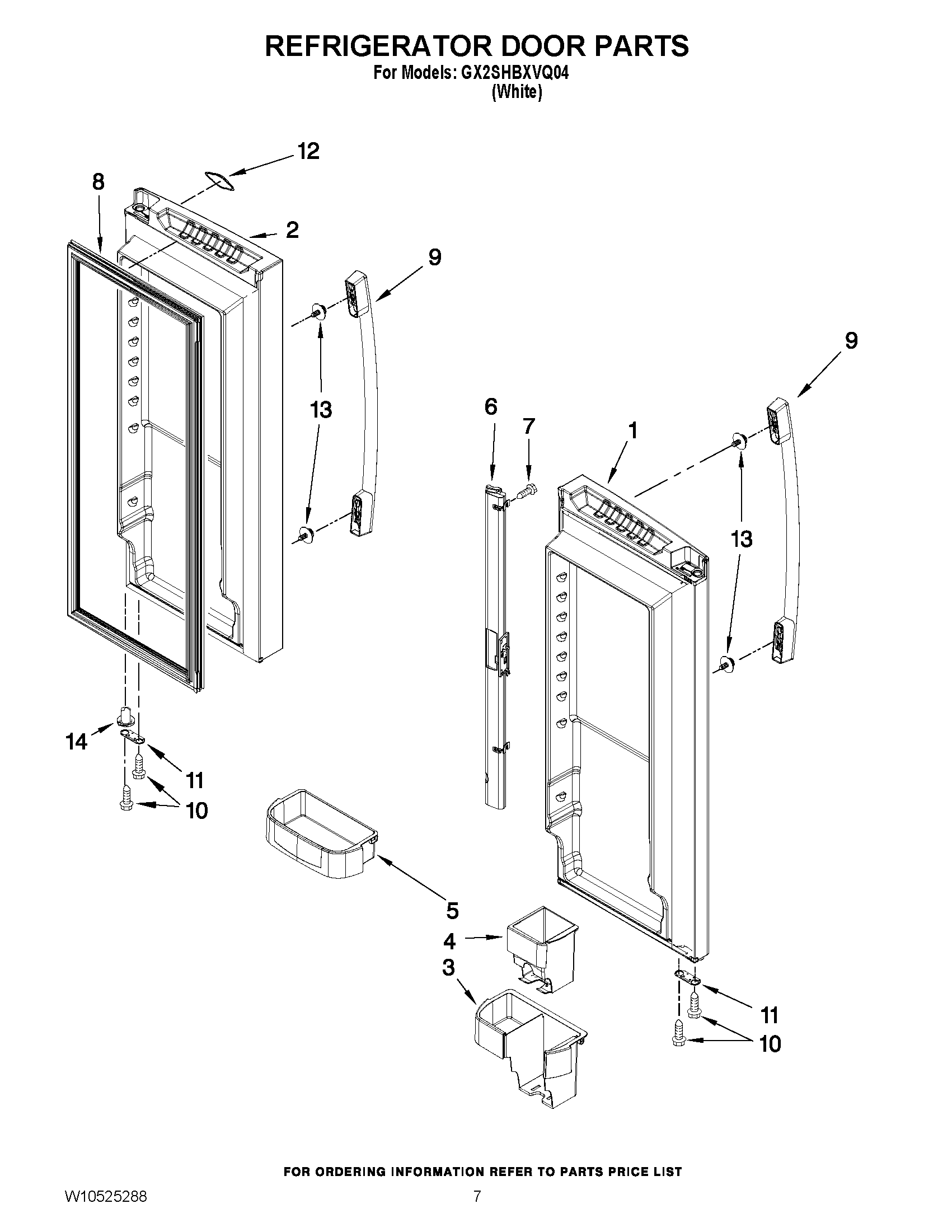

GX2SHBXVQ04 05 – REFRIGERATOR DOOR PARTS

GX2SHBXVQ04 05 – REFRIGERATOR DOOR PARTS

Written by

in

GX2SHBXVQ04 05 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1DOOR, LEFT (WHITE)
213107856WQ Whirlpool Refrigerator DOR-FIP White
3BUCKET-CAN DISPNSR
4WP13005401SP Whirlpool Can Rack
5WP12918704 Whirlpool Refrigerator Cantilever Bin
5WPW10371194 Whirlpool Refrigerator Door Shelf Bin Basket Bucket
5WPW10351081 Whirlpool Refrigerator Cantilever Bin
6RAIL-MULLN WHITE
7W11311945 Whirlpool Refrigerator Screw
8W10830189 Whirlpool Refrigerator Door Gasket
8W10830287 Whirlpool Refrigerator FIP Gasket
9WPW10222984K Whirlpool Refrigerator Handle Assembly
10WP98165 Whirlpool Screw
1112968202W Whirlpool Refrigerator Door Stop
12WPW10391355 Whirlpool Refrigerator Nameplate
13WPW10288153 Whirlpool Refrigerator Screw
14WP67003638 Whirlpool Closing Cam
