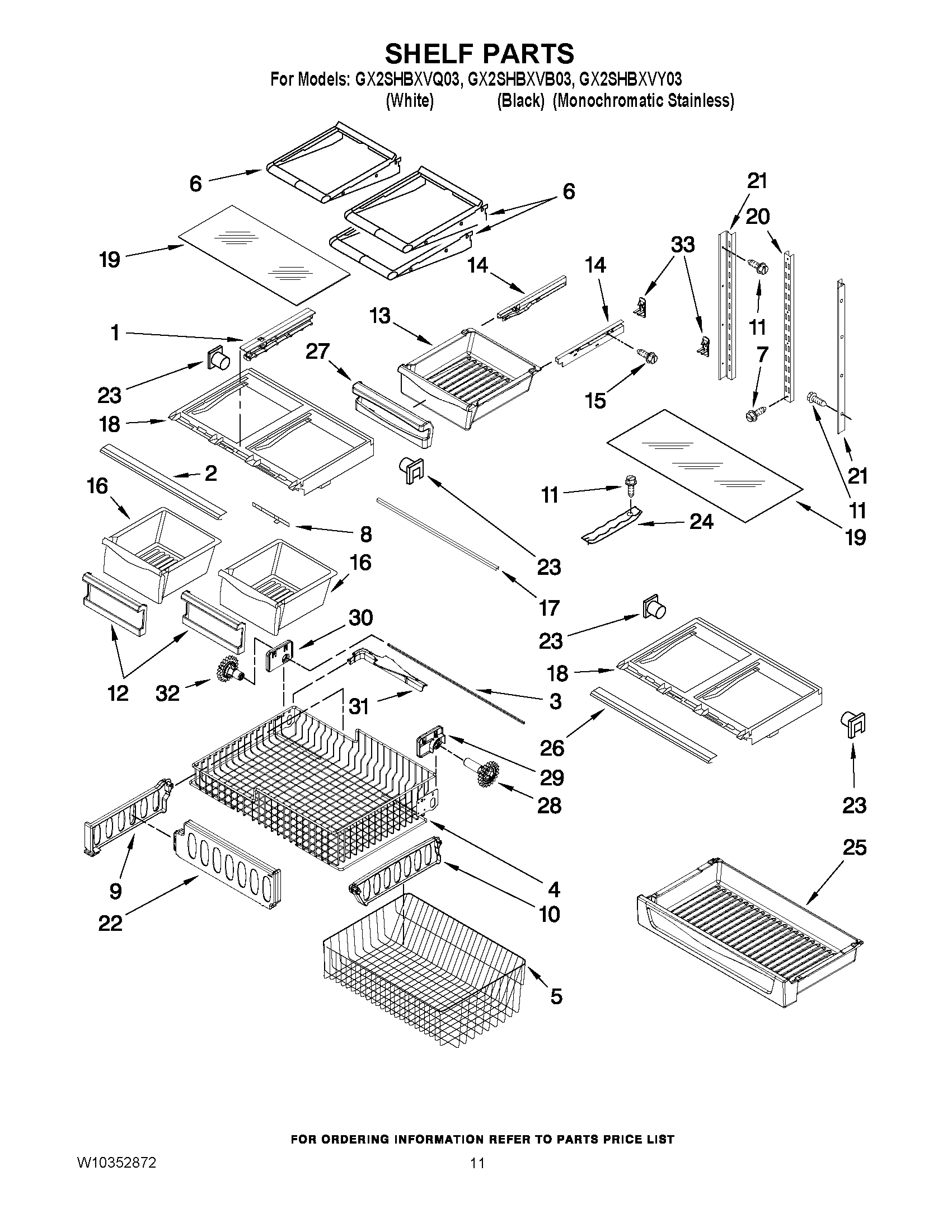

GX2SHBXVY03 07 – SHELF PARTS

Products

Position	Product
1	RAIL-CENTR CRISPER
2	WPW10231482 Whirlpool Refrigerator Shelf Trim
3	W10802339 Whirlpool Refrigerator Shaft
4	W10348238 Whirlpool Refrigerator Freezer Basket
5	WPW10503183 Whirlpool Freezer Basket
6	W11402523 Whirlpool Refrigerator Glass Shelf
7	W10215666 Whirlpool Refrigerator Screw
8	SLIDE
9	W10241046 Whirlpool Refrigerator Divider
10	Divider, Basket (Lower)
11	67006425 Whirlpool Refrigerator Screw
12	WP67005920 Whirlpool Refrigerator Crisper Drawer Front
13	WP67001314 Whirlpool Snack Pan
14	WP67001053 Whirlpool Drawer Glide
14	WP67001054 Whirlpool Left Glide
15	SCREW
16	WP67002633 Whirlpool Crisper Pan
17	WP12227303WD Whirlpool Refrigerator Crisper Brace
18	WPW10568041 Whirlpool Refrigerator Crisper Shelf Drawer Cover
19	WP67006878 Whirlpool Refrigerator Crisper Glass
20	W10273463 Whirlpool Refrigerator Ladder
21	W10251969 Whirlpool Refrigerator Ladder
22	W10311695 Whirlpool Refrigerator Divider
23	WP67001722 Whirlpool Refrigerator Support
23	WP67001721 Whirlpool Refrigerator Support
24	WP67001719 Whirlpool Refrigerator Track
25	DRAWER, PANTRY
26	W10656986 Whirlpool Refrigerator Shelf Trim
27	FRONT-DELI PAN
28	WPW10474715 Whirlpool Refrigerator Gear
29	W10348260 Whirlpool Refrigerator Bracket
30	W10348259 Whirlpool Refrigerator Bracket Assembly
31	W10149389 Whirlpool Refrigerator Handle
32	WPW10474716 Whirlpool Refrigerator Gear
33	WP67001716 Whirlpool Refrigerator Shelf Support Clip Ladder Hook
