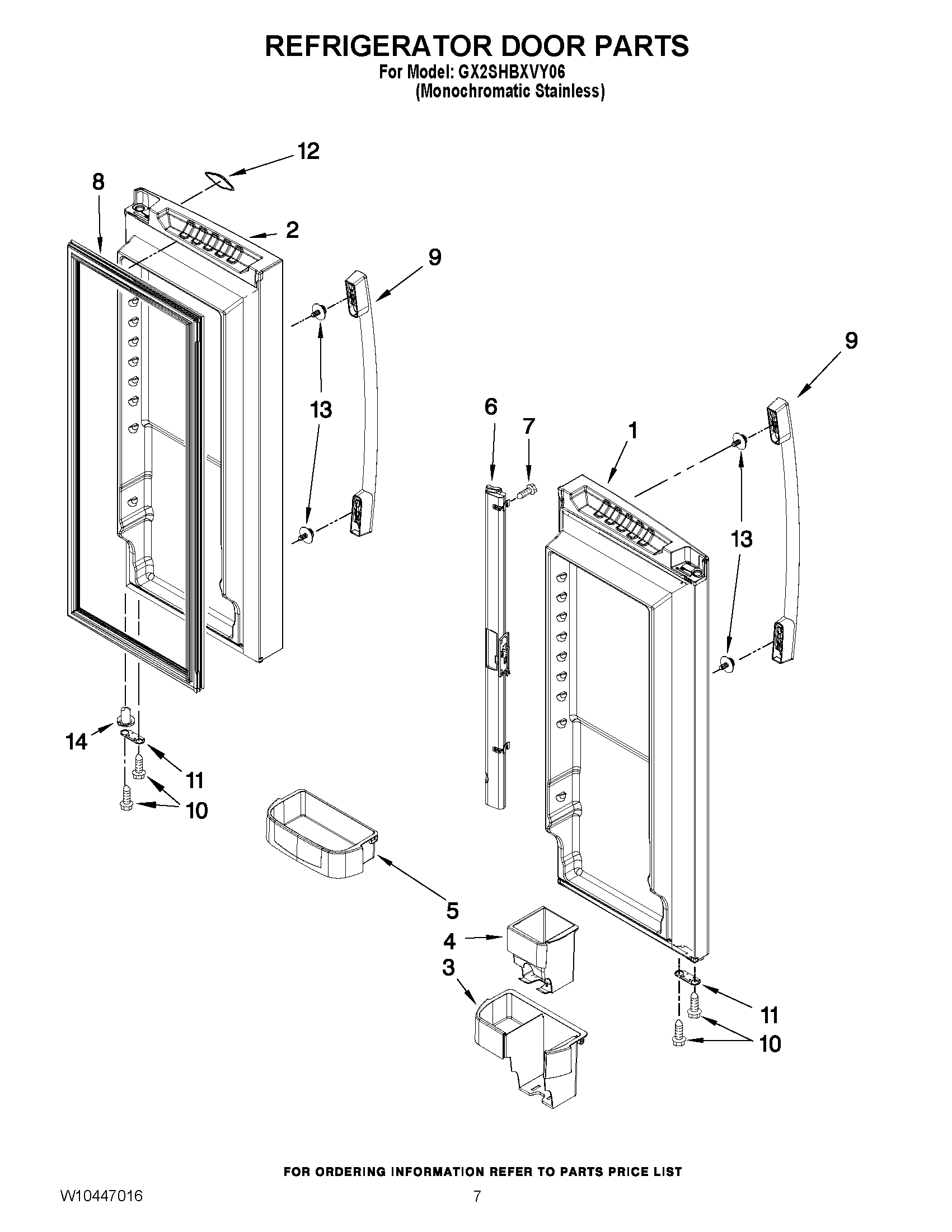

GX2SHBXVY06 05 – REFRIGERATOR DOOR PARTS

GX2SHBXVY06 05 – REFRIGERATOR DOOR PARTS

Written by

in

GX2SHBXVY06 05 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1DOOR, LEFT (STAINLESS)
2DOOR, RIGHT (STAINLESS)
3BUCKET-CAN DISPNSR
4WP13005401SP Whirlpool Can Rack
5WP12918704 Whirlpool Refrigerator Cantilever Bin
5WPW10371194 Whirlpool Refrigerator Door Shelf Bin Basket Bucket
5WPW10351081 Whirlpool Refrigerator Cantilever Bin
6WP12722803AP Whirlpool Refrigerator Mullion Rail
7W11311945 Whirlpool Refrigerator Screw
8GASKET-FIP
8W10830283 Whirlpool Refrigerator Door Gasket
9W11351147 Whirlpool Refrigerator Handle
10WP98165 Whirlpool Screw
11W11703060 Whirlpool Door Stop
12Nameplate
13WP12992902 Whirlpool Refrigerator Screw
14WP12028505AP Whirlpool Closing Cam
