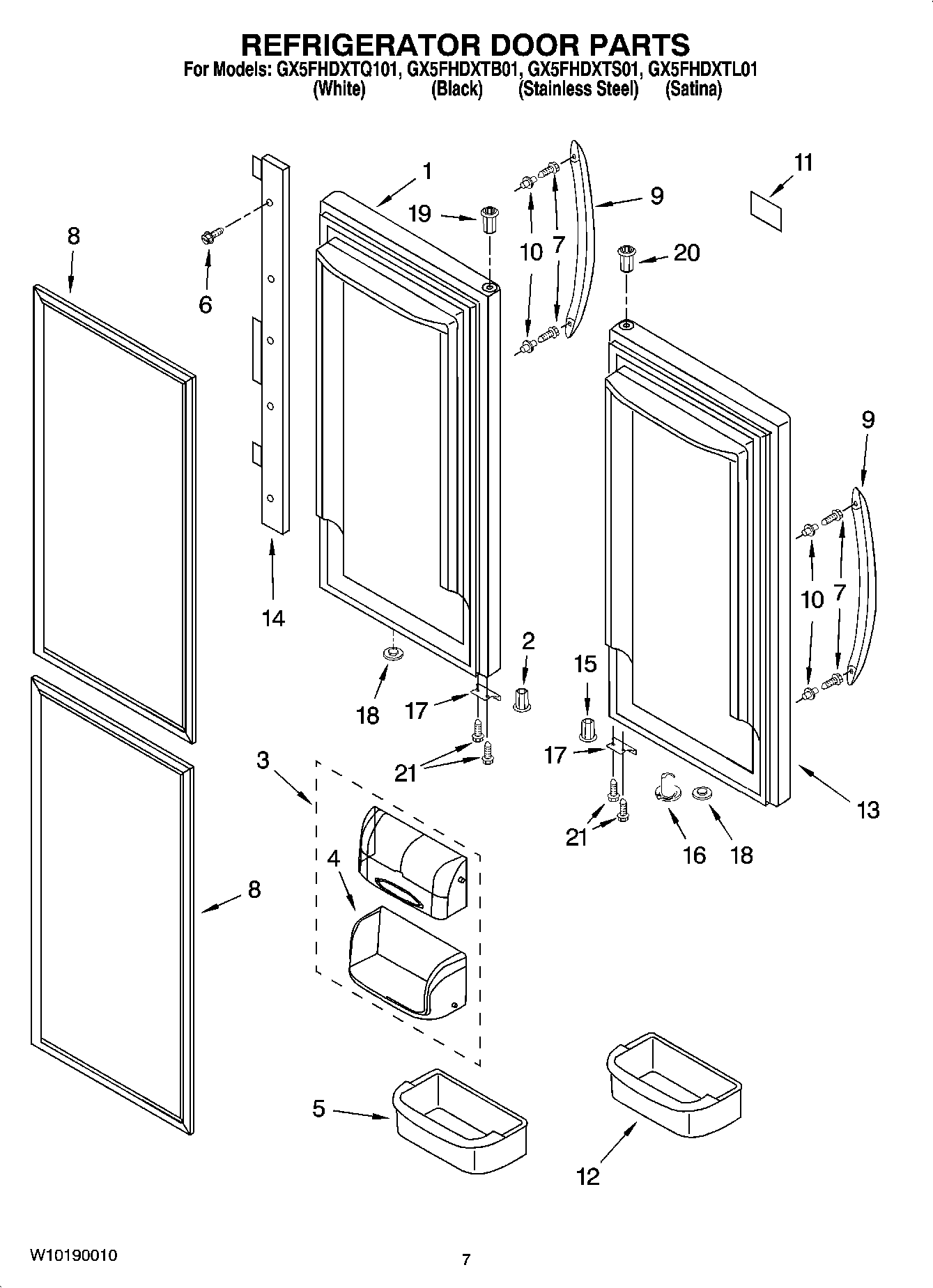

GX5FHDXTL01 04 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	Door, Left (White)
1	Door, Left (Stainless Steel)
1	Door, Left (Satina)
1	Door, Left (Black)
2	67002722 Whirlpool Refrigerator White Door Bushing
2	WP67002721 Whirlpool Refrigerator Door Bushing
3	WP12744905 Whirlpool Refrigerator Compressor Door
4	WP67001279 Whirlpool Refrigerator Dairy Tray
5	WPW10371194 Whirlpool Refrigerator Door Shelf Bin Basket Bucket
6	W11311945 Whirlpool Refrigerator Screw
7	67006901 Whirlpool Refrigerator Screw
8	W10830189 Whirlpool Refrigerator Door Gasket
8	GASKET-FIP
9	WP2254600B Whirlpool Refrigerator Handle
9	Handle (Stainless)
9	WP2254600W Whirlpool Refrigerator Handle
10	WP67006113 Whirlpool Stud Bolt
11	Nameplate
12	WPW10289497 Whirlpool Refrigerator Shelf Bin Basket Door
13	Door Right (Satina)
13	Door Right (Stainless Steel)
13	Door, Right (White)
13	Door, Right (Black)
14	RAIL-MULLN WHITE
14	WP12722803B Whirlpool Door Guide
15	WP67002731 Whirlpool Refrigerator Door Bushing
15	12028601W Whirlpool Refrigerator Hinge Bushing
16	WP67003638 Whirlpool Closing Cam
16	WP67003639 Whirlpool Refrigerator Closer
17	12968202W Whirlpool Refrigerator Door Stop
17	W11708403 Whirlpool Door Stop
18	67004838 Whirlpool Refrigerator Button Vent Plug
18	10712401 Whirlpool Refrigerator Vent Plug (White)
19	Bushing, Door (Upper Left) (White)
19	Bushing, Door (Upper Left) (Black)
20	67004978 Whirlpool Refrigerator Black Door Bushing
20	WP67004977 Whirlpool Refrigerator Door Hinge Bushing
21	WP98165 Whirlpool Screw
