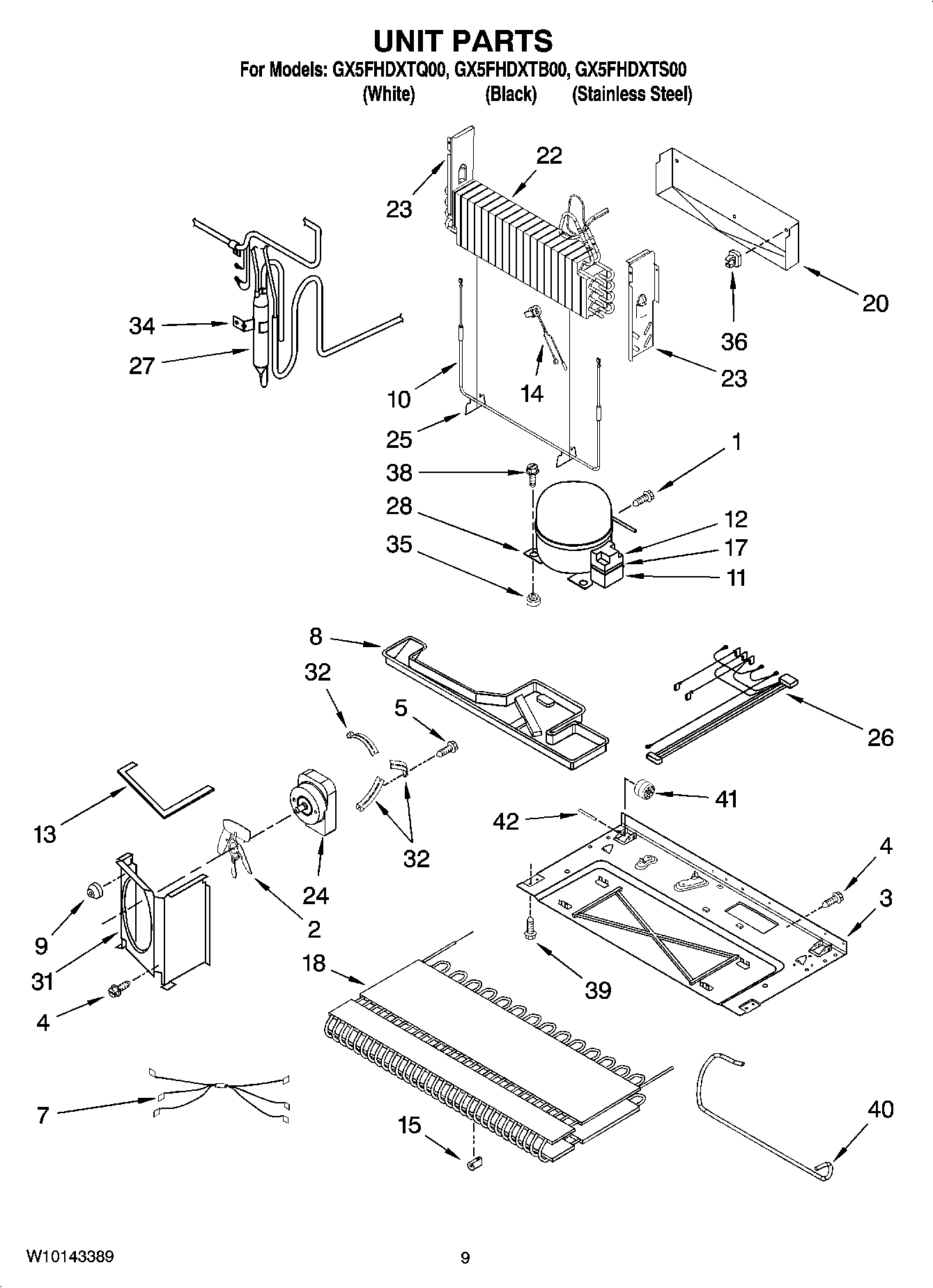

GX5FHDXTQ00 05 – UNIT PARTS

Products

Position	Product
1	12992301 Whirlpool Refrigerator Screw
2	W10156818 Whirlpool Refrigerator Fan Blade
3	Basepan
4	67006425 Whirlpool Refrigerator Screw
5	WP67004954 Whirlpool Refrigerator Screw
7	Harness, Evap Heater
8	WP12579803 Whirlpool Refrigerator Drain Pan
9	Grommet (3)
10	WP67002493 Whirlpool Refrigerator Defrost Heater
12	W10613606 Whirlpool Refrigerator Start Device Relay Overload
13	WP854334 Whirlpool Air Conditioner Sealing Strip
14	WP67003426 Whirlpool Refrigerator Thermostat
15	67005680 Whirlpool Refrigerator Condenser Grommet
17	Clip, Capacitor
18	WP67006131 Whirlpool Refrigerator Condenser
20	Tray, Drip
22	12002041 Whirlpool Refrigerator Evaporator Replacement Kit
23	Dam (Right Side)
23	Dam (Left Side)
24	W11613295 Whirlpool Condenser Motor
25	W11673433 Whirlpool Clip
26	Harness, Unit
27	WPW10143759 Whirlpool Dryer Filter
28	W10309989 Whirlpool Refrigerator Compressor
31	SHROUD
32	WP67004953 Whirlpool Refrigerator Bracket
34	10547003 Whirlpool Refrigerator Dryer Clip
35	WPL 4343845
36	Clip, Evap Motor
38	12846902 Whirlpool Refrigerator Screw
39	Screw (4)
40	WP12866903 Whirlpool Refrigerator Discharge Tube
41	WP67005149 Whirlpool Roller
42	Following Parts Not Illustrated and Optional Parts Not Included
42	VALVE, ACCESS (5/8“)
42	876764 Whirlpool Refrigerator Primary Valve
42	978026 Whirlpool Refrigerator Primary Valve
42	978030 Whirlpool Refrigerator Valve
42	WP978025 Whirlpool Refrigerator Valve
42	VALVE, ACCESS (1/2“)
42	67006434 Whirlpool Axle Pin
42	978027 Whirlpool Refrigerator Primary Valve
42	REFRIGERANT CHARGE 5.0 Ozs. (R-134A)
