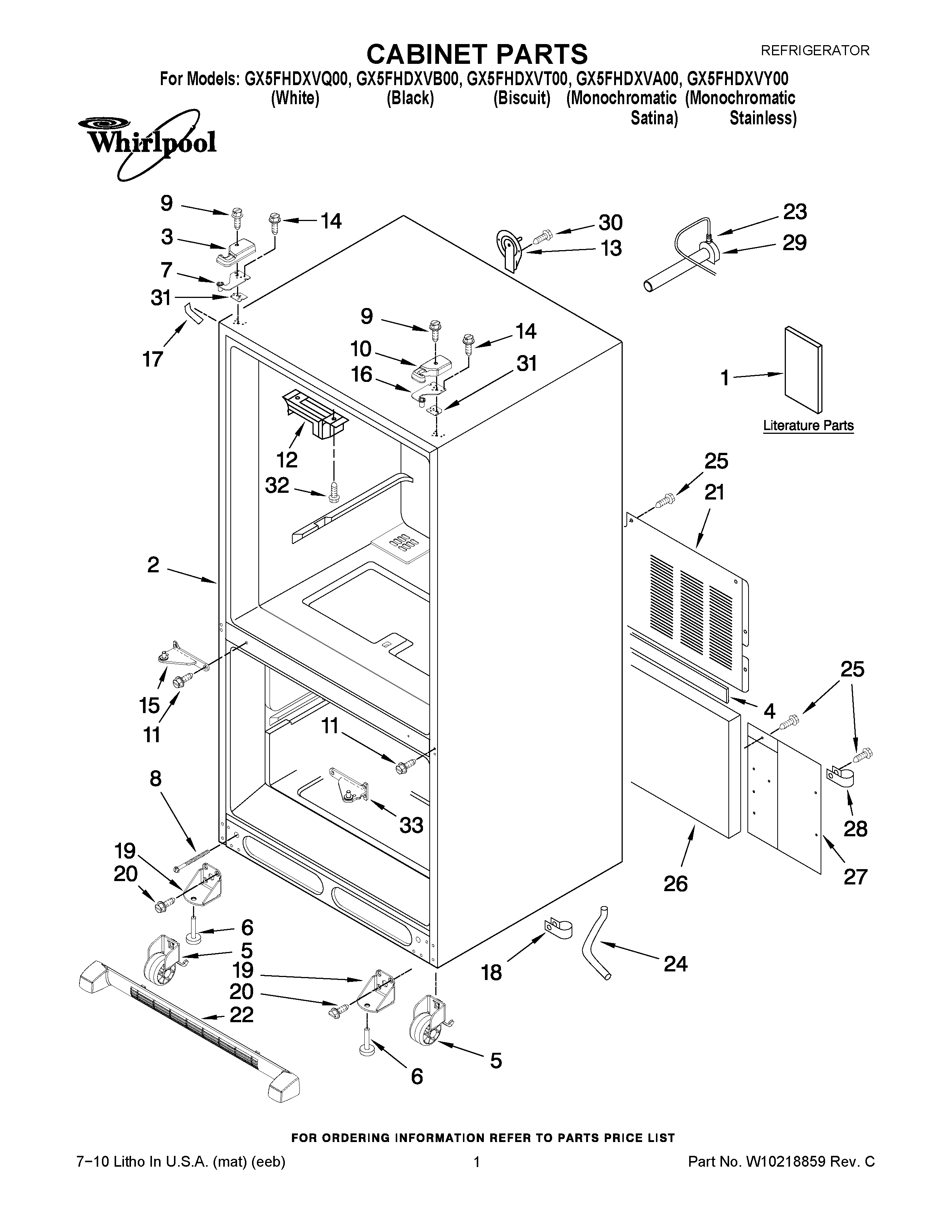

GX5FHDXVB00 01 – CABINET PARTS

Products

PositionProduct
1Energy Guide
1Tech Sheet
1Use & Care Guide
2CABINET (NOT A SERVICEABLE PART)
3W10337647 Whirlpool Refrigerator Cover
3WPW10337634 Whirlpool Refrigerator Cover
3WPW10337648 Whirlpool Refrigerator Cover
3Cover, Left Hinge (Bisque)
4Gasket
5Roller Assy.(Rear)
6W11177593 Whirlpool Leveling Feet
7W11592375 Whirlpool Door Hinge
871003131 Whirlpool Oven Screw
9WP8281196 Whirlpool Screw
10WP67005956 Whirlpool Refrigerator Cover
10WPW10191117 Whirlpool Refrigerator Cover
10Cover, Right Hinge (Bisque)
1067005958 Whirlpool Refrigerator Top Hinge Cover (RT-WHT)
11WP489349 Whirlpool Refrigerator Screw
12WP67003405 Whirlpool Pivot Block
1312726003 Whirlpool Refrigerator Water Cover
15W10918113 Whirlpool Refrigerator Door Hinge
1567006442 Whirlpool Refrigerator Center Hinge (LT-BLK)
15W10917988 Whirlpool Refrigerator Door Hinge
16W11592374 Whirlpool Refrigerator Top Door Hinge
17Cover, Corner (Bisque)
17WP12587703AP Whirlpool Refrigerator Filler
1767003484 Whirlpool Refrigerator White Corner Cover
1767003485 Whirlpool Refrigerator Corner Cover (Black)
18Clip, Drain Tube
19Bracket, Foot
2067006564 Whirlpool Refrigerator Screw
21Cover, Unit
22Grille, Toe (Bisque)
22WPW10534155 Whirlpool Refrigerator Kickplate Grille Gray
22WPW10534154 Whirlpool Refrigerator Front Grille
22WPW10534153 Whirlpool Refrigerator Black Kickplate Grille
23WPM0114003 Whirlpool Microwave Speed Clip Clamp
24W10164397 Whirlpool Refrigerator Drain Tube
2567006425 Whirlpool Refrigerator Screw
2667003796 Whirlpool Refrigerator Fiber Acoustic
27Cover, Water Valve
28W10833902 Whirlpool Refrigerator Clamp
29W11176463 Whirlpool Refrigerator Water Tube
30WP98165 Whirlpool Screw
3112999502 Whirlpool Refrigerator Hinge Shim
3112999501 Whirlpool Refrigerator Hinge Shim
32WP7101P126-60 Whirlpool Screw
33W10918164 Whirlpool Refrigerator Door Hinge
33HINGE, CENTER RIGHT HAND (WHITE)
