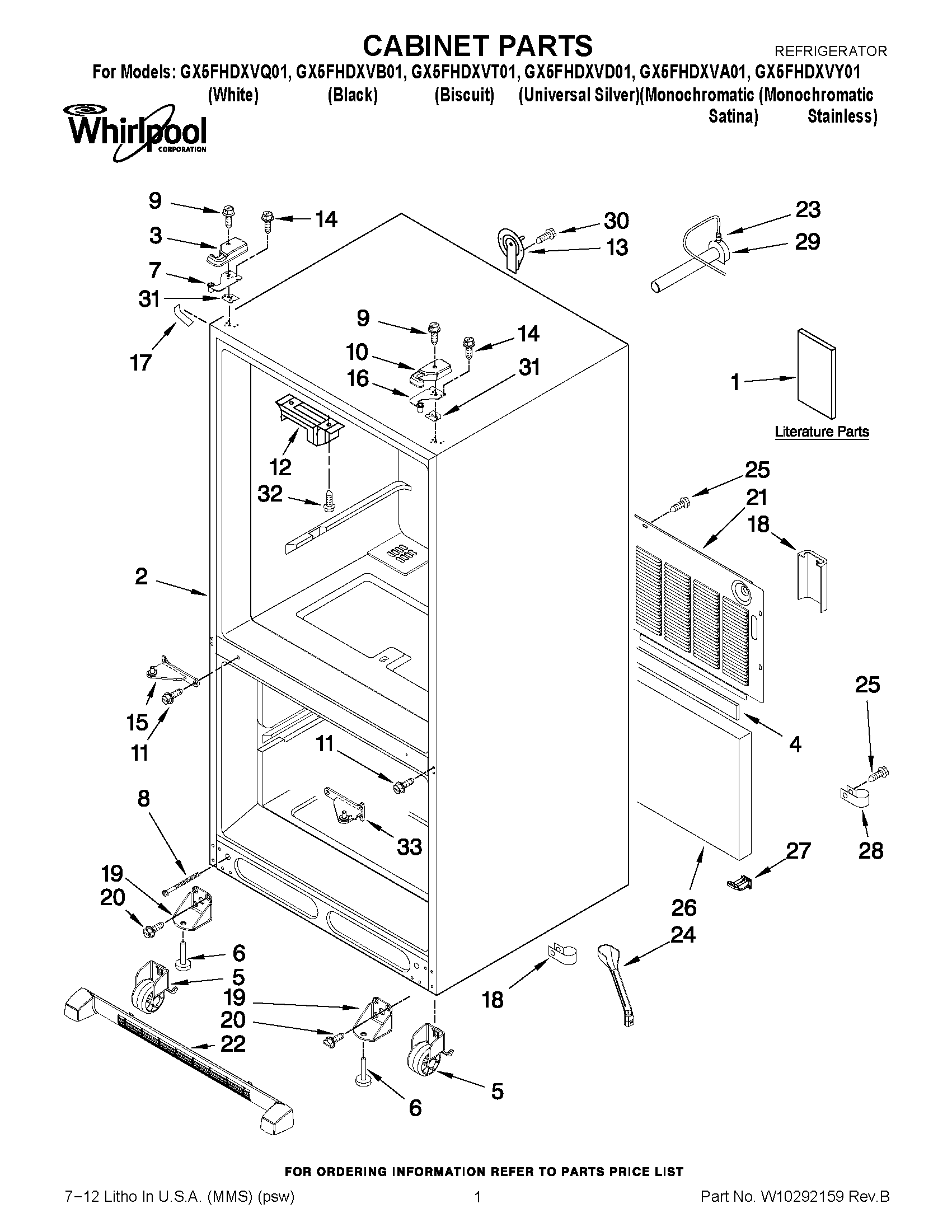

GX5FHDXVB01 01 – CABINET PARTS

Products

PositionProduct
1Energy Guide
1Tech Sheet
1Use & Care Guide
2CABINET (NOT A SERVICEABLE PART)
3W10337647 Whirlpool Refrigerator Cover
3WPW10337634 Whirlpool Refrigerator Cover
3COVER, LEFT HINGE (BISCUIT)
3WPW10337648 Whirlpool Refrigerator Cover
4Gasket
5ROLLER ASSY.(REAR)
6W11177593 Whirlpool Leveling Feet
7W11592375 Whirlpool Door Hinge
871003131 Whirlpool Oven Screw
9WP8281196 Whirlpool Screw
10WP67005956 Whirlpool Refrigerator Cover
10WPW10191117 Whirlpool Refrigerator Cover
10COVER, RIGHT HINGE (BISCUIT)
1067005958 Whirlpool Refrigerator Top Hinge Cover (RT-WHT)
11WP489349 Whirlpool Refrigerator Screw
12WP67003405 Whirlpool Pivot Block
1312726003 Whirlpool Refrigerator Water Cover
15W10917988 Whirlpool Refrigerator Door Hinge
15W10918164 Whirlpool Refrigerator Door Hinge
15W10918113 Whirlpool Refrigerator Door Hinge
16W11592374 Whirlpool Refrigerator Top Door Hinge
1712587703W Whirlpool Refrigerator Cover
17FILLER, WRAPPER (BISCUIT)
1767003485 Whirlpool Refrigerator Corner Cover (Black)
18W10208592 Whirlpool Refrigerator Valve Cover
1912906303WD Whirlpool Refrigerator Bracket
2067006564 Whirlpool Refrigerator Screw
21W10211854 Whirlpool Refrigerator Back Cover
22GRILLE, TOE (BISQUE)
22WPW10534153 Whirlpool Refrigerator Black Kickplate Grille
22WPW10534155 Whirlpool Refrigerator Kickplate Grille Gray
22WPW10534154 Whirlpool Refrigerator Front Grille
23WPM0114003 Whirlpool Microwave Speed Clip Clamp
24W10619951 Whirlpool Drain Tube with Grommet
2567006425 Whirlpool Refrigerator Screw
26INSULATION, SOUND
27SWEEP, WATER VALVE
28W10833902 Whirlpool Refrigerator Clamp
29W11176463 Whirlpool Refrigerator Water Tube
30WP98165 Whirlpool Screw
3112999502 Whirlpool Refrigerator Hinge Shim
3112999501 Whirlpool Refrigerator Hinge Shim
32WP7101P126-60 Whirlpool Screw
3313000002WD Whirlpool Refrigerator Door Hinge
33W10918168 Whirlpool Refrigerator Door Hinge
