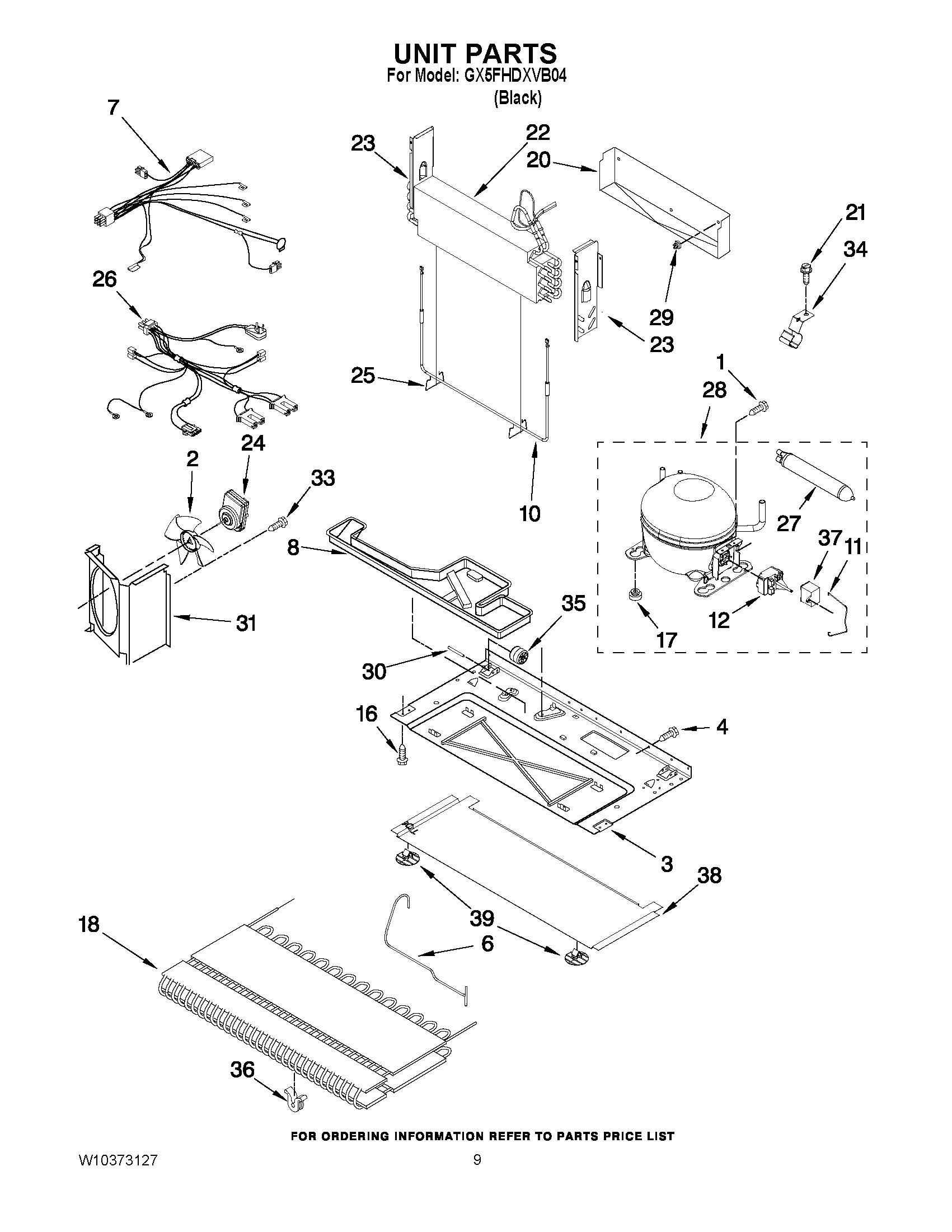

GX5FHDXVB04 06 – UNIT PARTS

Products

Position	Product
NI	978030 Whirlpool Refrigerator Valve
NI	CABINET (NOT A SERVICEABLE PART)
NI	VALVE, ACCESS (1/2“)
NI	WP978025 Whirlpool Refrigerator Valve
NI	978027 Whirlpool Refrigerator Primary Valve
NI	978026 Whirlpool Refrigerator Primary Valve
NI	876764 Whirlpool Refrigerator Primary Valve
NI	VALVE, ACCESS (5/8“)
1	12992301 Whirlpool Refrigerator Screw
2	WP12825803 Whirlpool Refrigerator Fan Blade
3	W11727651 Whirlpool Plate Assembly
4	67006425 Whirlpool Refrigerator Screw
6	WPW10233569 Whirlpool Refrigerator Tube
7	W11260592 Whirlpool Refrigerator Wire Harness
8	WPW10655368 Whirlpool Refrigerator Drip Pan
10	W10825088 Whirlpool Refrigerator Defrost Heater W10836434
11	W11661170 Whirlpool Clip
12	WPW10194431 Whirlpool Start Device
16	Screw
17	WPW10169124 Whirlpool Refrigerator Grommet
18	WPW10346415 Whirlpool Refrigerator Condenser
20	W11547653 Whirlpool Refrigerator Drip Tray
21	WP33001882 Whirlpool Screw
22	W11256565 Whirlpool Refrigerator Evaporator
23	Dam (Left Side)
23	Dam (Right Side)
24	W11613295 Whirlpool Condenser Motor
25	W11673433 Whirlpool Clip
26	WPW10234024 Whirlpool Refrigerator Wire Harness
27	WPW10143759 Whirlpool Dryer Filter
28	W10233960 Whirlpool Refrigerator Compressor
29	CLIP, EVAP (2)
30	67006434 Whirlpool Axle Pin
31	W11556315 Whirlpool Shroud
33	W10829281 Whirlpool Refrigerator Screw
34	W10281329 Whirlpool Clamp
35	WP67005149 Whirlpool Roller
36	WPW10137529 Whirlpool Refrigerator Grommet
37	WPW10662129 Whirlpool Refrigerator Run Capacitor
38	EXTENSION-BASEPAN
39	W10206339 Whirlpool Fastener
