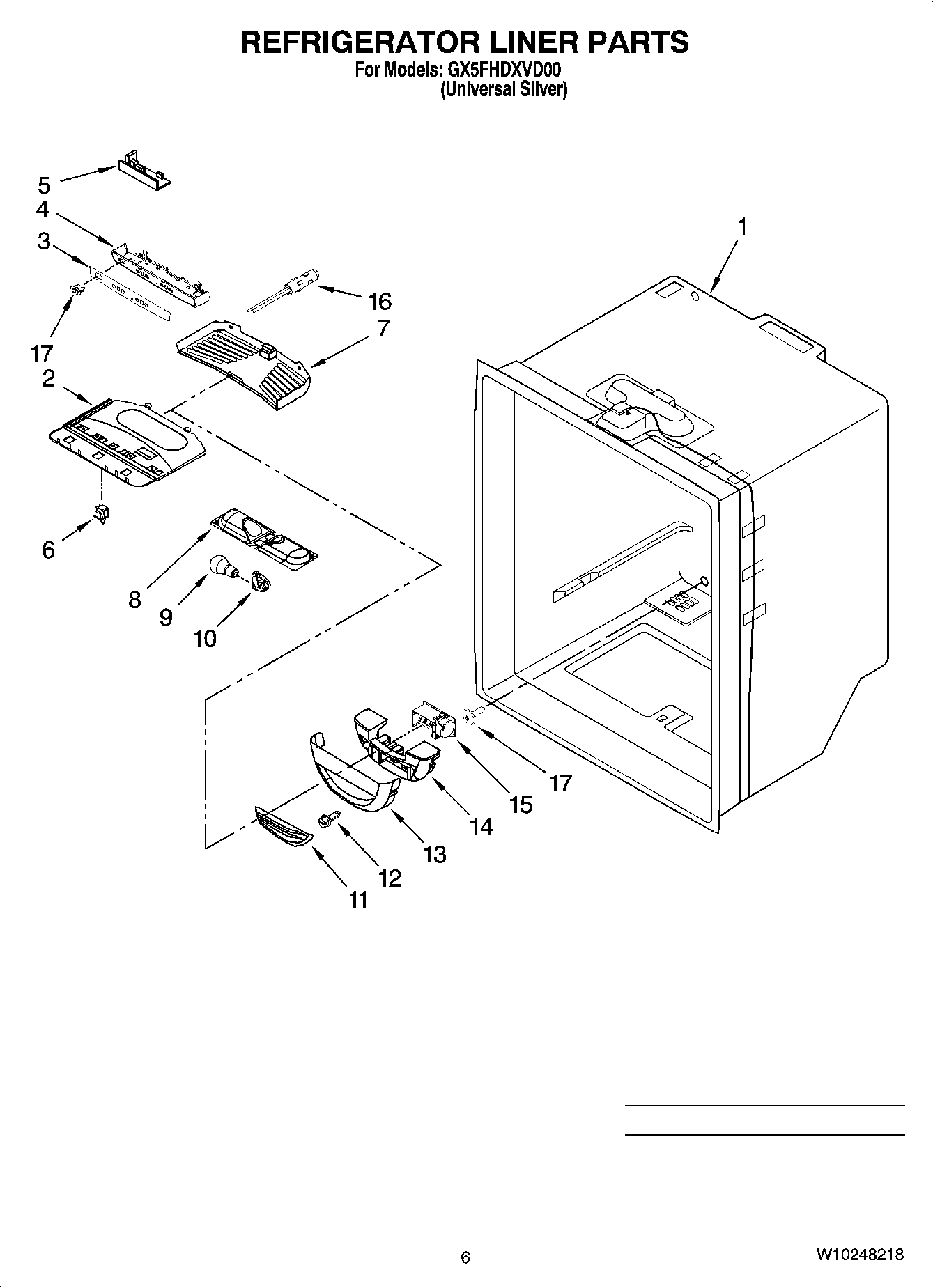

GX5FHDXVD00 04 – REFRIGERATOR LINER PARTS

GX5FHDXVD00 04 – REFRIGERATOR LINER PARTS

Written by

in

GX5FHDXVD00 04 – REFRIGERATOR LINER PARTS

Products

PositionProduct
Following Parts Not Illustrated
WP12868601 Whirlpool Refrigerator Wire Harness
1Liner (Not A Serviceable Part)
2Module, Light
3WPW10180451 Whirlpool Refrigerator Overlay
4WP12806407 Whirlpool Refrigerator Housing
5WPW10503278 Whirlpool Refrigerator Electronic Control Board
6W11384469 Whirlpool Door Switch
7W11284721 Whirlpool Refrigerator Cover
812806601 Whirlpool Refrigerator Light Housing
9RANGE ONLY 40W 120V APPL BULB
10W11447232 Whirlpool Refrigerator Socket
1167003900 Whirlpool Refrigerator Insert Damper Cover
12WP400021-1 Whirlpool Screw
13WP12806701 Whirlpool Refrigerator Box Cover
14INSULATION
15WPW10196393 Whirlpool Control Damper
1612002355 Whirlpool Refrigerator Thermistor Kit
17W11478401 Whirlpool Refrigerator Housing
