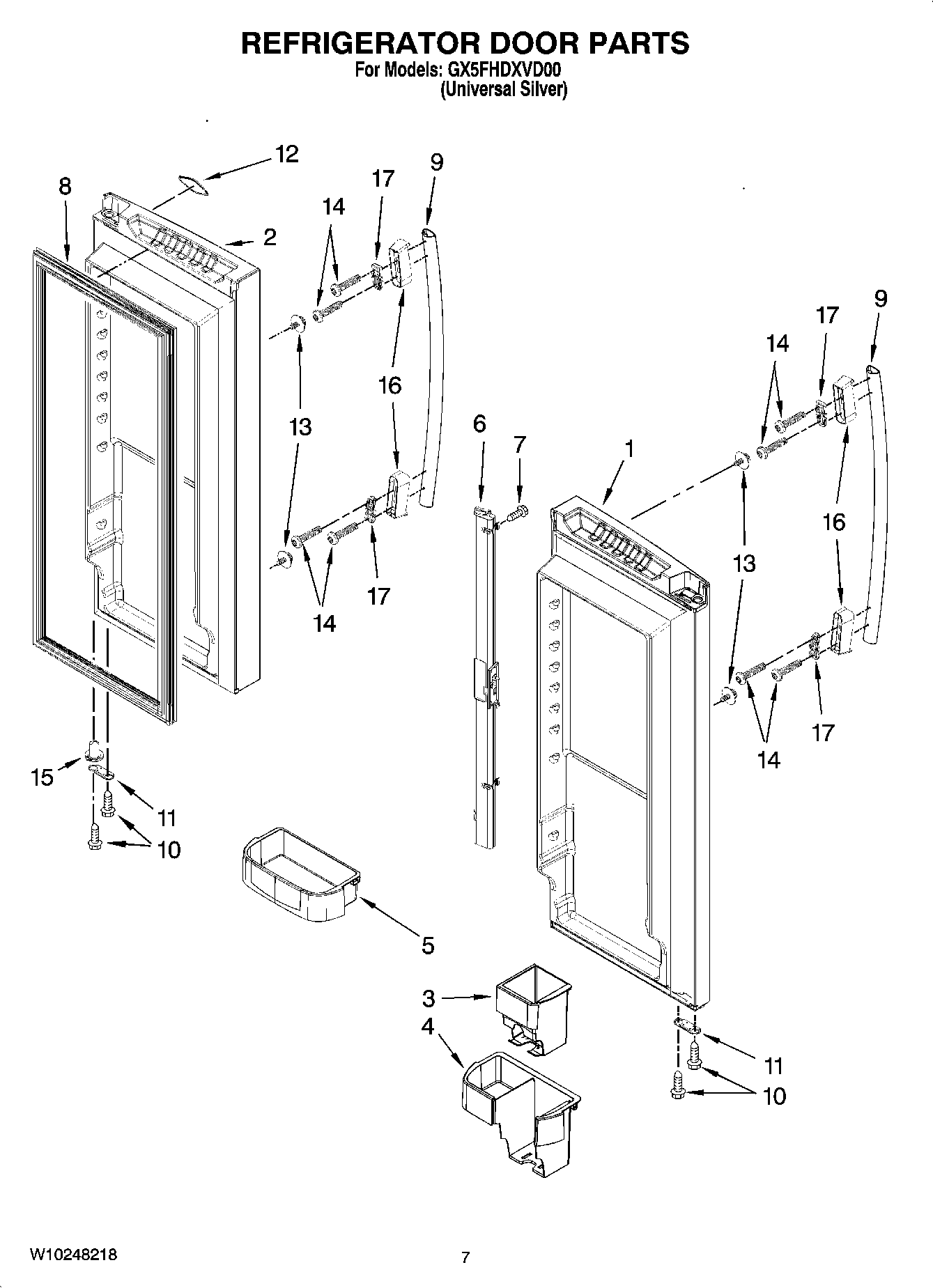

GX5FHDXVD00 05 – REFRIGERATOR DOOR PARTS

GX5FHDXVD00 05 – REFRIGERATOR DOOR PARTS

Written by

in

GX5FHDXVD00 05 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1Door, Left (Universal Silver)
2Door, Right (Universal Silver)
3WPW10169346 Whirlpool Refrigerator Beverage Holder
4WP13005401SP Whirlpool Can Rack
5WPW10371194 Whirlpool Refrigerator Door Shelf Bin Basket Bucket
5WPW10289497 Whirlpool Refrigerator Shelf Bin Basket Door
6WP12722803B Whirlpool Door Guide
7W11311945 Whirlpool Refrigerator Screw
8GASKET-FIP
9W11351147 Whirlpool Refrigerator Handle
10WP98165 Whirlpool Screw
11W11708403 Whirlpool Door Stop
12Nameplate
13WP12992902 Whirlpool Refrigerator Screw
14W10267047 Whirlpool Screw
15WP67003639 Whirlpool Refrigerator Closer
16Endcap, Handle
17Clip, Handle
