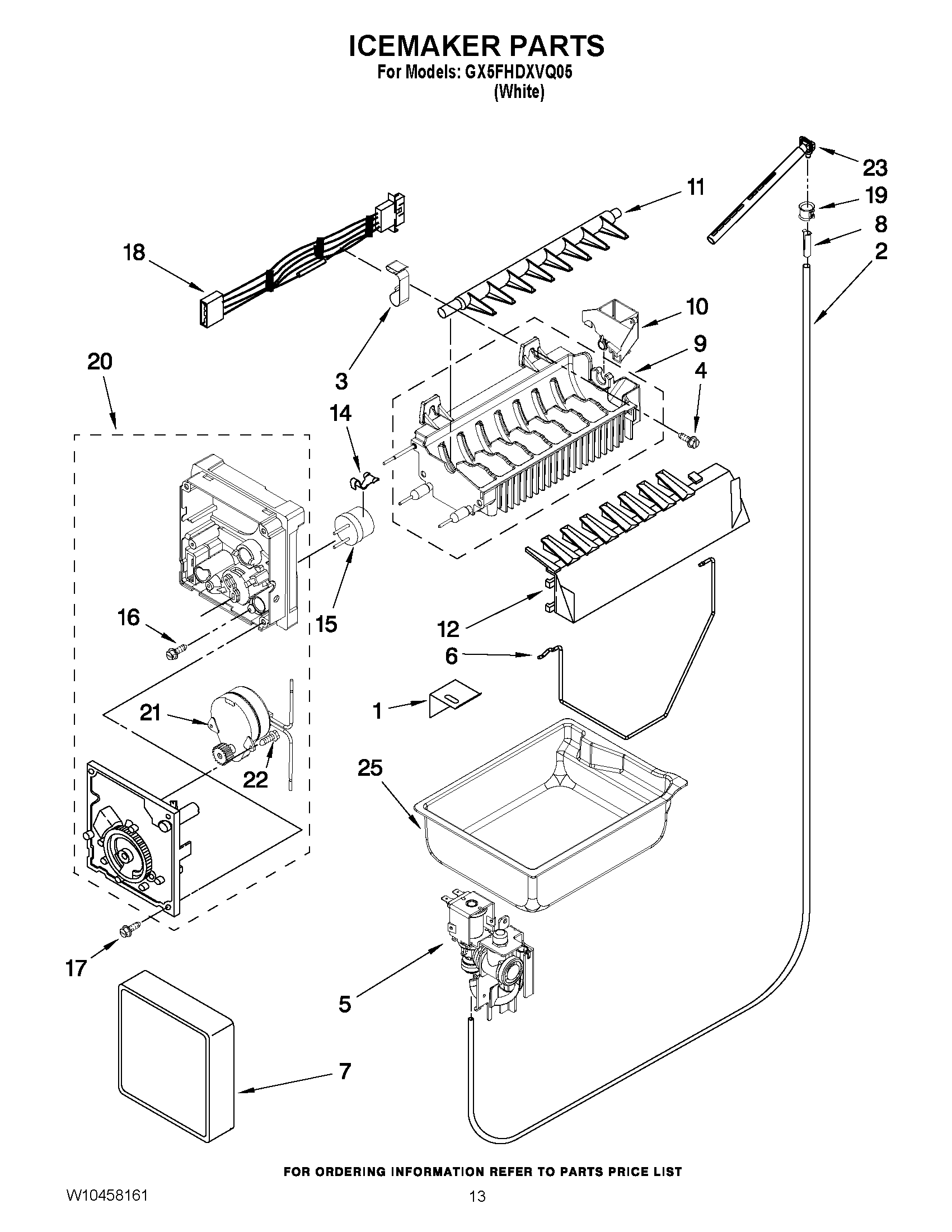

GX5FHDXVQ05 08 – ICEMAKER PARTS

Products

Position	Product
1	WP2256087 Whirlpool Refrigerator Bracket
2	W11120581 Whirlpool Refrigerator Water Tube
3	Clamp
5	VALVE-REFR INLET
6	WPW10378255 Whirlpool Refrigerator Shut Off Arm
7	W10377174 Whirlpool Refrigerator Front Cover
8	WPA3223101 Whirlpool Refrigerator Insert PL
9	WPW10300025 Whirlpool Refrigerator Ice Mold
10	WPW10372171 Whirlpool Cup Fill
11	W10318914 Whirlpool Refrigerator Ejector Arm
12	WPW10122563 Whirlpool Refrigerator Stripper Arm
14	WP628379 Whirlpool Refrigerator Clip
15	WP627985 Whirlpool Icemaker Cycling Thermostat
16	8533917 Whirlpool Refrigerator Screw
17	WP489464 Whirlpool Refrigerator Screw
18	WPW10458985 Whirlpool Wire Harness
19	WPM0114003 Whirlpool Microwave Speed Clip Clamp
20	WPW10281342 Whirlpool Refrigerator Motor Module
21	CABINET (NOT A SERVICEABLE PART)
22	W10001240 Whirlpool Refrigerator Screw
23	W11176463 Whirlpool Refrigerator Water Tube
25	WPW10171529 Whirlpool Refrigerator Ice Pan
100	W10884390 Whirlpool Refrigerator Ice Maker Assembly
