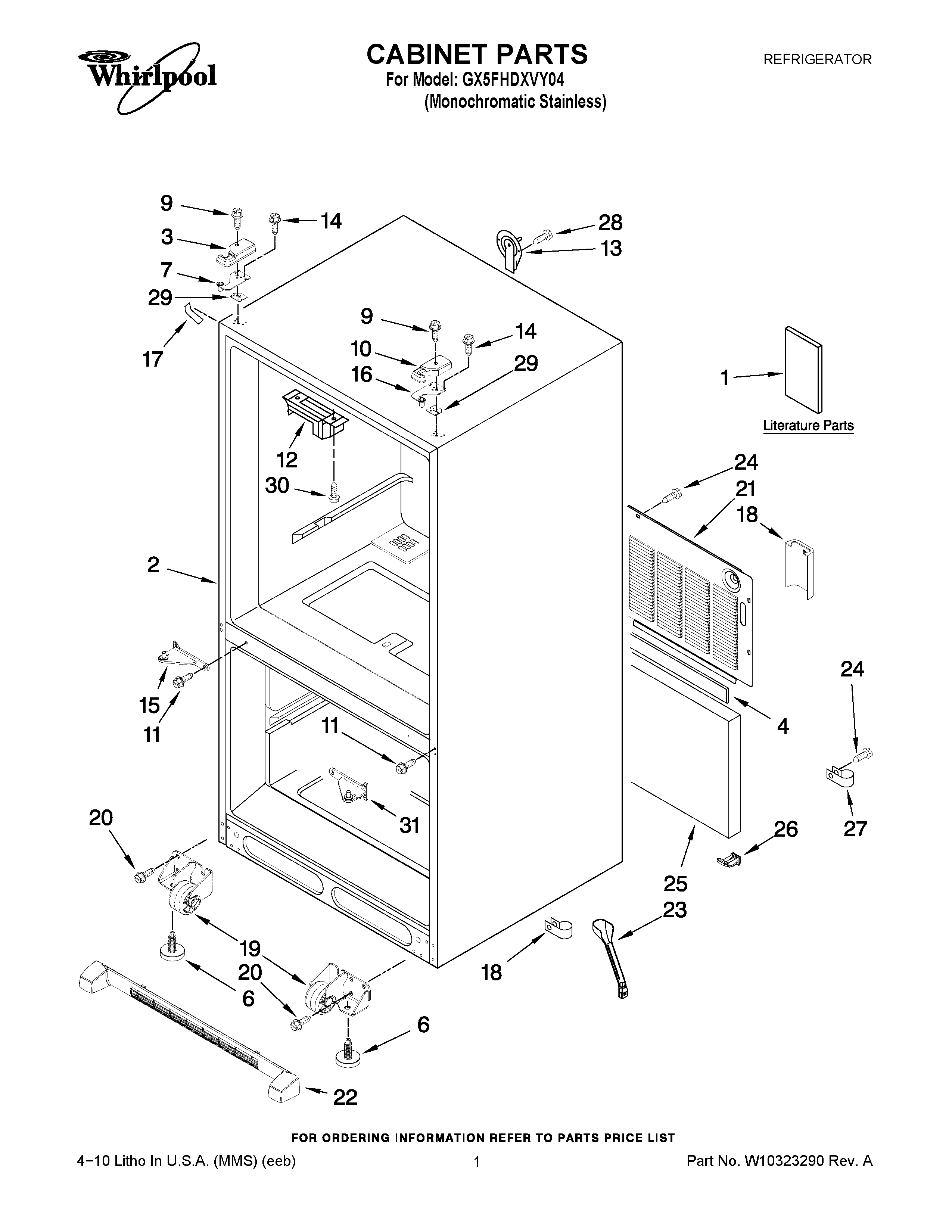

GX5FHDXVY04 01 – CABINET PARTS

GX5FHDXVY04 01 – CABINET PARTS

Written by

in

GX5FHDXVY04 01 – CABINET PARTS

Products

PositionProduct
1ENERGY GUIDE
1Energy Guide
1Use & Care Guide
2CABINET (NOT A SERVICEABLE PART)
3WPW10337648 Whirlpool Refrigerator Cover
4B5759655 Whirlpool Refrigerator Gasket
6WPW10141622 Whirlpool Leveler
7W11592375 Whirlpool Door Hinge
9WP8281196 Whirlpool Screw
10WPW10191117 Whirlpool Refrigerator Cover
11WP489349 Whirlpool Refrigerator Screw
12WP67003405 Whirlpool Pivot Block
1312726003 Whirlpool Refrigerator Water Cover
15W10917988 Whirlpool Refrigerator Door Hinge
16W11592374 Whirlpool Refrigerator Top Door Hinge
17WP12587703AP Whirlpool Refrigerator Filler
18W10208592 Whirlpool Refrigerator Valve Cover
19WPW10515763 Whirlpool Refrigerator Cabinet Roller
19WPW10515762 Whirlpool Refrigerator Cabinet Roller
2067006564 Whirlpool Refrigerator Screw
21W10211854 Whirlpool Refrigerator Back Cover
22WPW10534155 Whirlpool Refrigerator Kickplate Grille Gray
23W10619951 Whirlpool Drain Tube with Grommet
2467006425 Whirlpool Refrigerator Screw
25INSULATION, SOUND
26SWEEP, WATER VALVE
27W11456069 Whirlpool Refrigerator Clamp
28WP98165 Whirlpool Screw
2912999502 Whirlpool Refrigerator Hinge Shim
2912999501 Whirlpool Refrigerator Hinge Shim
30WP7101P126-60 Whirlpool Screw
