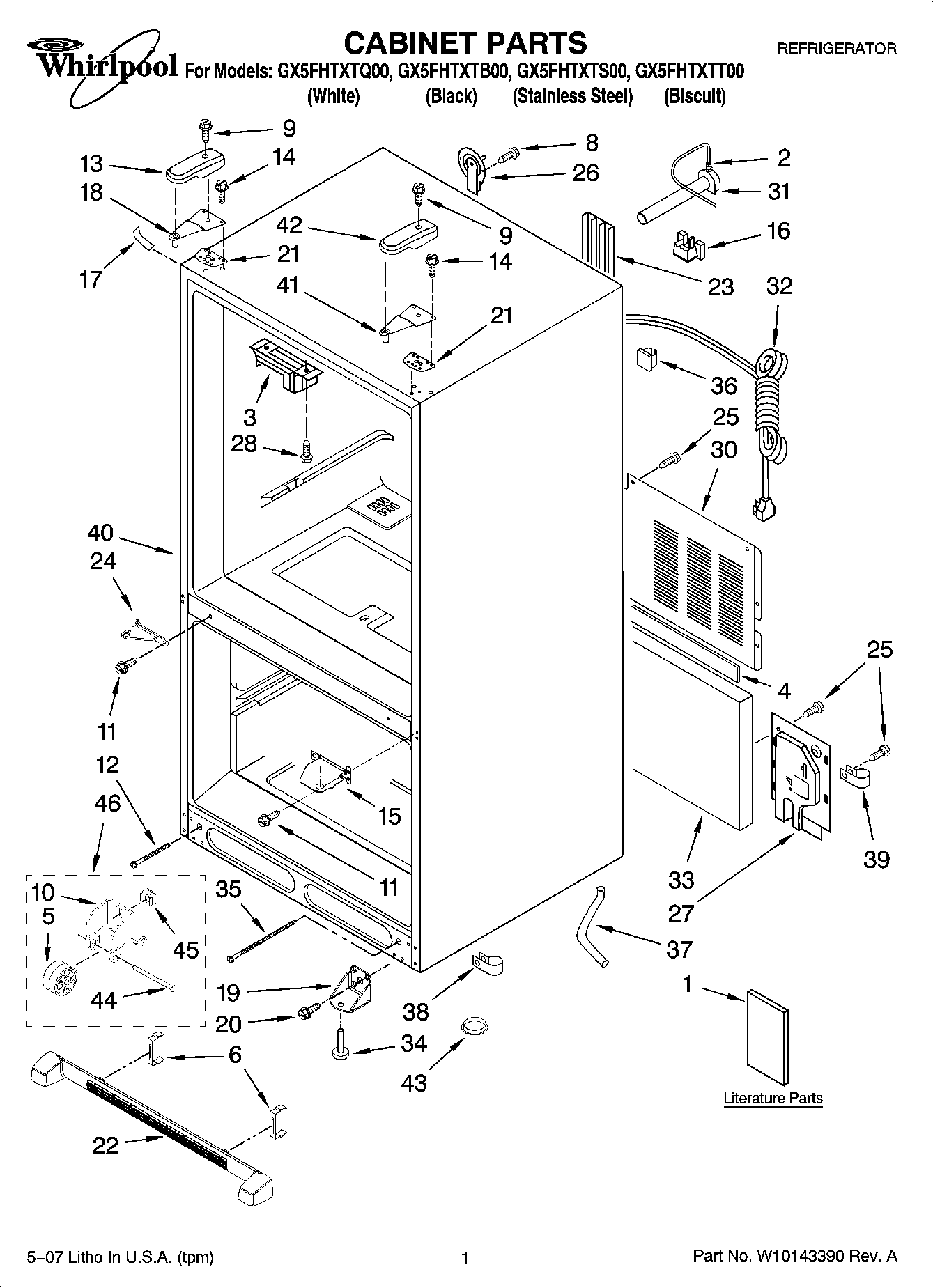

GX5FHTXTB00 01 – CABINET PARTS

Products

PositionProduct
1Tech Sheet
1Tag, Energy
1Owners Manual
2W11176463 Whirlpool Refrigerator Water Tube
3WP67003405 Whirlpool Pivot Block
4GASKET
5WP10450603 Whirlpool Refrigerator Roller
6WPL 4344155
8WP98165 Whirlpool Screw
9WP8281196 Whirlpool Screw
1012456801V Whirlpool Refrigerator Bracket
11WP67006380 Whirlpool Screw
1271003131 Whirlpool Oven Screw
13Cover, Left Hinge (Black)
13Cover, Left Hinge (White)
13Cover, Left Hinge (Biscuit)
14WP489349 Whirlpool Refrigerator Screw
15HINGE, CENTER RIGHT HAND (WHITE)
15W10918164 Whirlpool Refrigerator Door Hinge
16WP12777701 Whirlpool Refrigerator Filler Block
17Cover, Corner (Biscuit)
1767003485 Whirlpool Refrigerator Corner Cover (Black)
1767003484 Whirlpool Refrigerator White Corner Cover
18WP12566607ED Whirlpool Refrigerator Door Hinge
19Bracket, Foot
2067006564 Whirlpool Refrigerator Screw
21Shim, Hinge
22Grille, Toe (Bisque)
22WPW10534154 Whirlpool Refrigerator Front Grille
22WPW10534153 Whirlpool Refrigerator Black Kickplate Grille
23WPL 8208152
2467006442 Whirlpool Refrigerator Center Hinge (LT-BLK)
24W10918113 Whirlpool Refrigerator Door Hinge
2567006425 Whirlpool Refrigerator Screw
2612726003 Whirlpool Refrigerator Water Cover
27Cover, Water Valve
28SCREW
30Cover, Unit
31W11181718 Whirlpool Refrigerator Water Tube
32Power Cord
3367003796 Whirlpool Refrigerator Fiber Acoustic
34W11177593 Whirlpool Leveling Feet
35Bolt, Adjusting (Rear)
36Clip, Cord
37Tube, Drain
3867001067 Whirlpool Refrigerator Drain Tube Clip
3967002816 Whirlpool Refrigerator Waterline Clip
40Cabinet (Not A Servicable Part)
41WP12566606ED Whirlpool Refrigerator Door Hinge
42Cover, Right Hinge (Black)
42Cover, Right Hinge (White)
42Cover, Right Hinge (Biscuit)
43A3076901 Whirlpool Refrigerator Plug
44Pin
45M0286708 Whirlpool Refrigerator Holder Nut Assembly
46Roller Assembly
