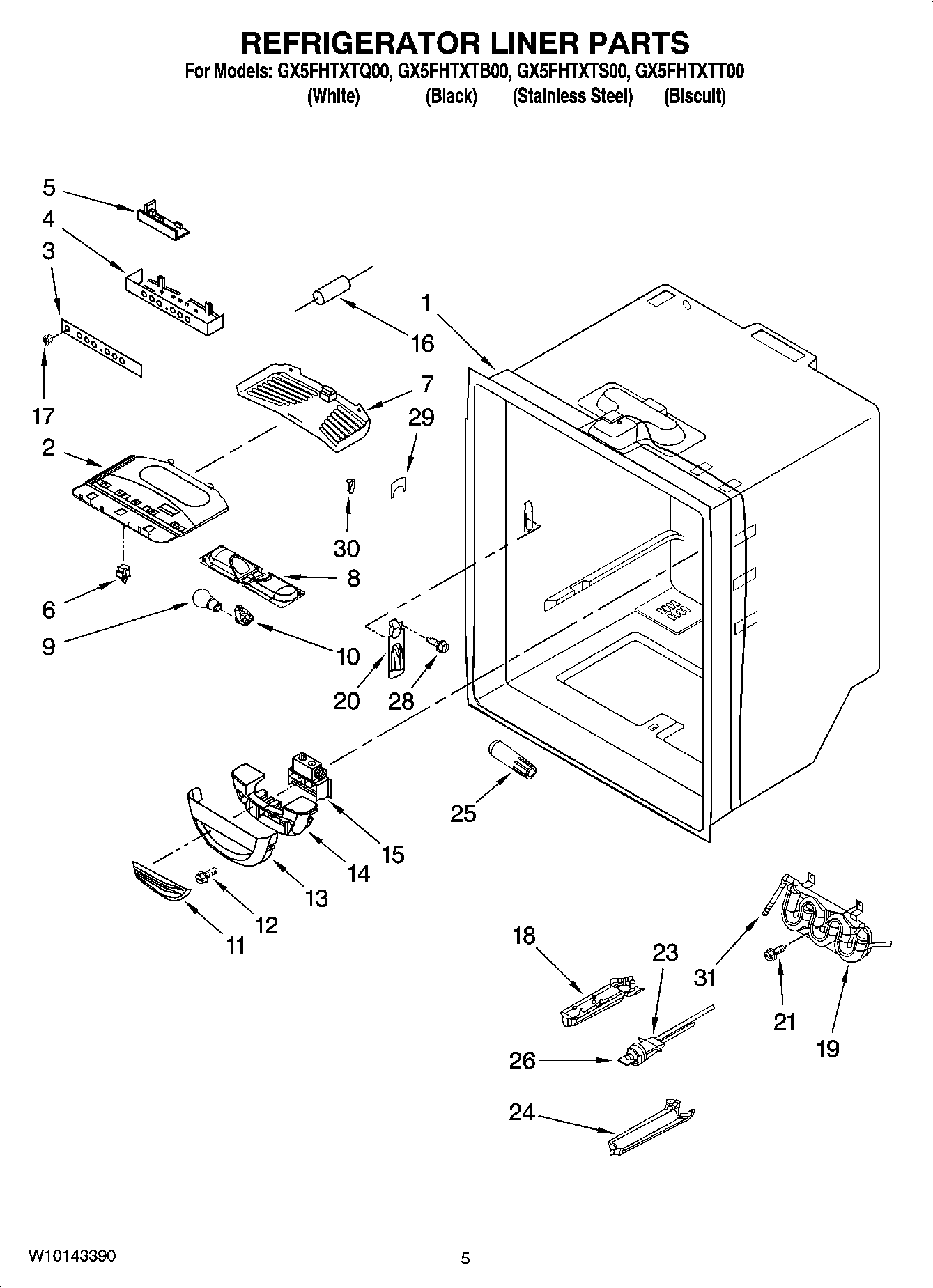

GX5FHTXTB00 03 – REFRIGERATOR LINER PARTS

Products

Position	Product
1	Liner (Not A Serviceable Part)
2	Bracket, Control and Lights
3	Overlay
4	Housing Electronic Control
5	WPW10503278 Whirlpool Refrigerator Electronic Control Board
6	W11384469 Whirlpool Door Switch
7	W11284721 Whirlpool Refrigerator Cover
8	12806601 Whirlpool Refrigerator Light Housing
9	W11679940 Whirlpool Refrigerator Light Bulb Assembly
10	W11447232 Whirlpool Refrigerator Socket
11	67003900 Whirlpool Refrigerator Insert Damper Cover
12	WP400021-1 Whirlpool Screw
13	WP12806701 Whirlpool Refrigerator Box Cover
14	WP67003904 Whirlpool Refrigerator Insulation
15	WP67003903 Whirlpool Refrigerator Damper Control
16	12002355 Whirlpool Refrigerator Thermistor Kit
17	W11478401 Whirlpool Refrigerator Housing
18	PLATE-FIL
19	Tank, Water
20	Dispenser
21	WP98165 Whirlpool Screw
23	WP67006524 Whirlpool Refrigerator Housing
24	WP12568001 Whirlpool Filter Cover
25	everydropÂ® Filter 4 EDR4RXD1 Whirlpool Refrigerator Water
26	Head, Filter Bypass
28	67006425 Whirlpool Refrigerator Screw
29	W11519867 Whirlpool Refrigerator Cover
30	WP12575501 Whirlpool Refrigerator Micro Switch
31	WP2300868 Whirlpool Refrigerator Fitting
31	Following Parts Not Illustrated
31	WP12868601 Whirlpool Refrigerator Wire Harness
