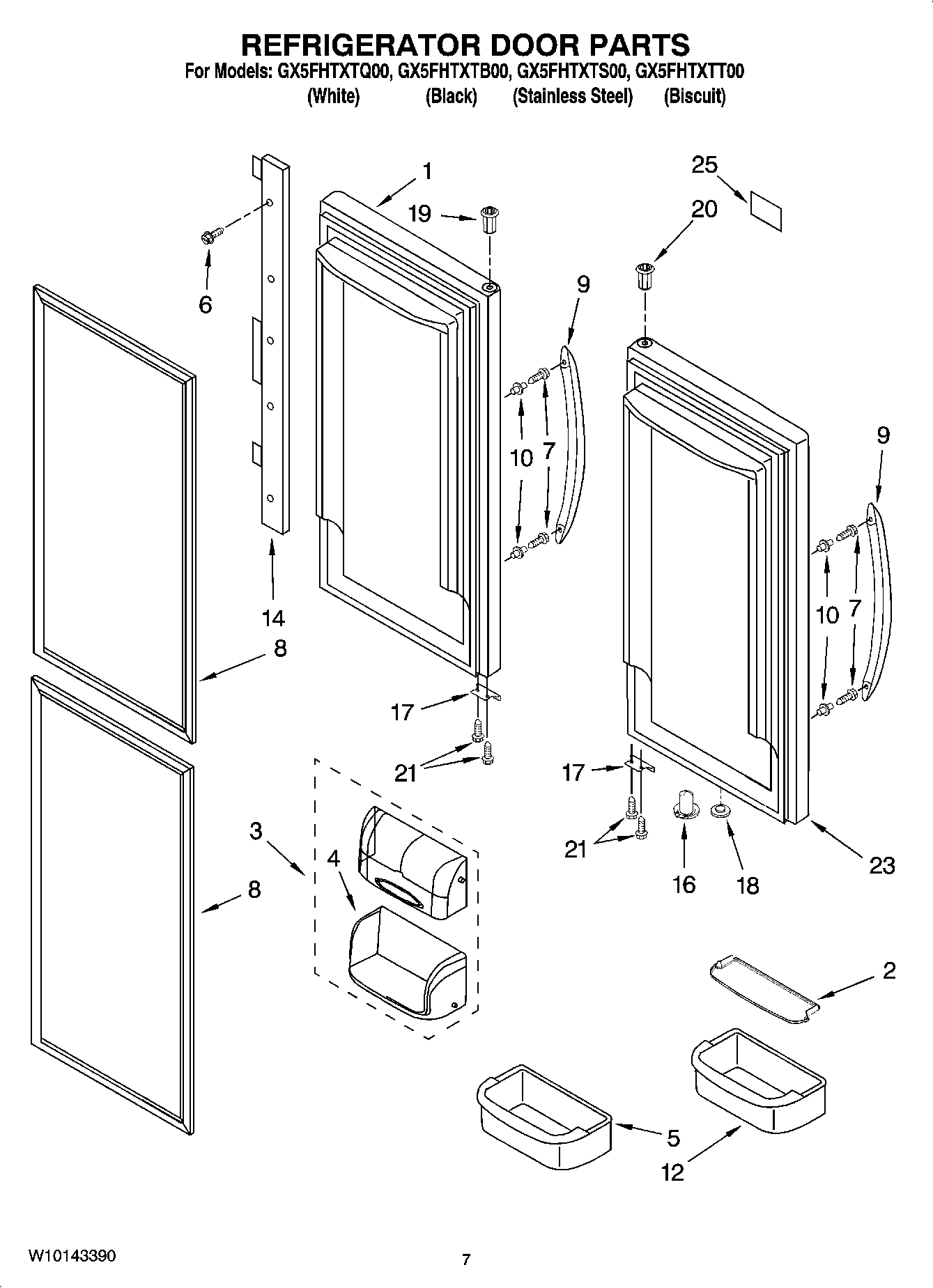

GX5FHTXTB00 04 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	Door, Left (Biscuit)
1	Door, Left (Stainless Steel)
1	Door, Left (White)
1	Door, Left (Black)
2	Mat (Gallon)
3	WP12744905 Whirlpool Refrigerator Compressor Door
4	WP67001279 Whirlpool Refrigerator Dairy Tray
5	WPW10371194 Whirlpool Refrigerator Door Shelf Bin Basket Bucket
6	WP9740848 Whirlpool Dishwasher Screw
7	WP3387230 Whirlpool Screw
8	W10830189 Whirlpool Refrigerator Door Gasket
8	GASKET-FIP
9	WP2254600W Whirlpool Refrigerator Handle
9	WP2254600B Whirlpool Refrigerator Handle
9	Handle (Biscuit)
9	Handle (Stainless)
10	Stud, Handle
12	WPW10289497 Whirlpool Refrigerator Shelf Bin Basket Door
14	WP12722803B Whirlpool Door Guide
14	RAIL-MULLN WHITE
16	WP67003639 Whirlpool Refrigerator Closer
16	WP67003638 Whirlpool Closing Cam
17	W11708403 Whirlpool Door Stop
17	12968202W Whirlpool Refrigerator Door Stop
17	Stop, Door (Bisque)
18	10712401 Whirlpool Refrigerator Vent Plug (White)
18	67004838 Whirlpool Refrigerator Button Vent Plug
19	WP67002721 Whirlpool Refrigerator Door Bushing
19	67002722 Whirlpool Refrigerator White Door Bushing
20	WP67002731 Whirlpool Refrigerator Door Bushing
20	12028601W Whirlpool Refrigerator Hinge Bushing
21	WP98165 Whirlpool Screw
23	Door, Right (Black)
23	Door, Right (White)
23	Door, Right (Stainless Steel)
23	Door, Right (Biscuit)
25	NAMEPLATE
