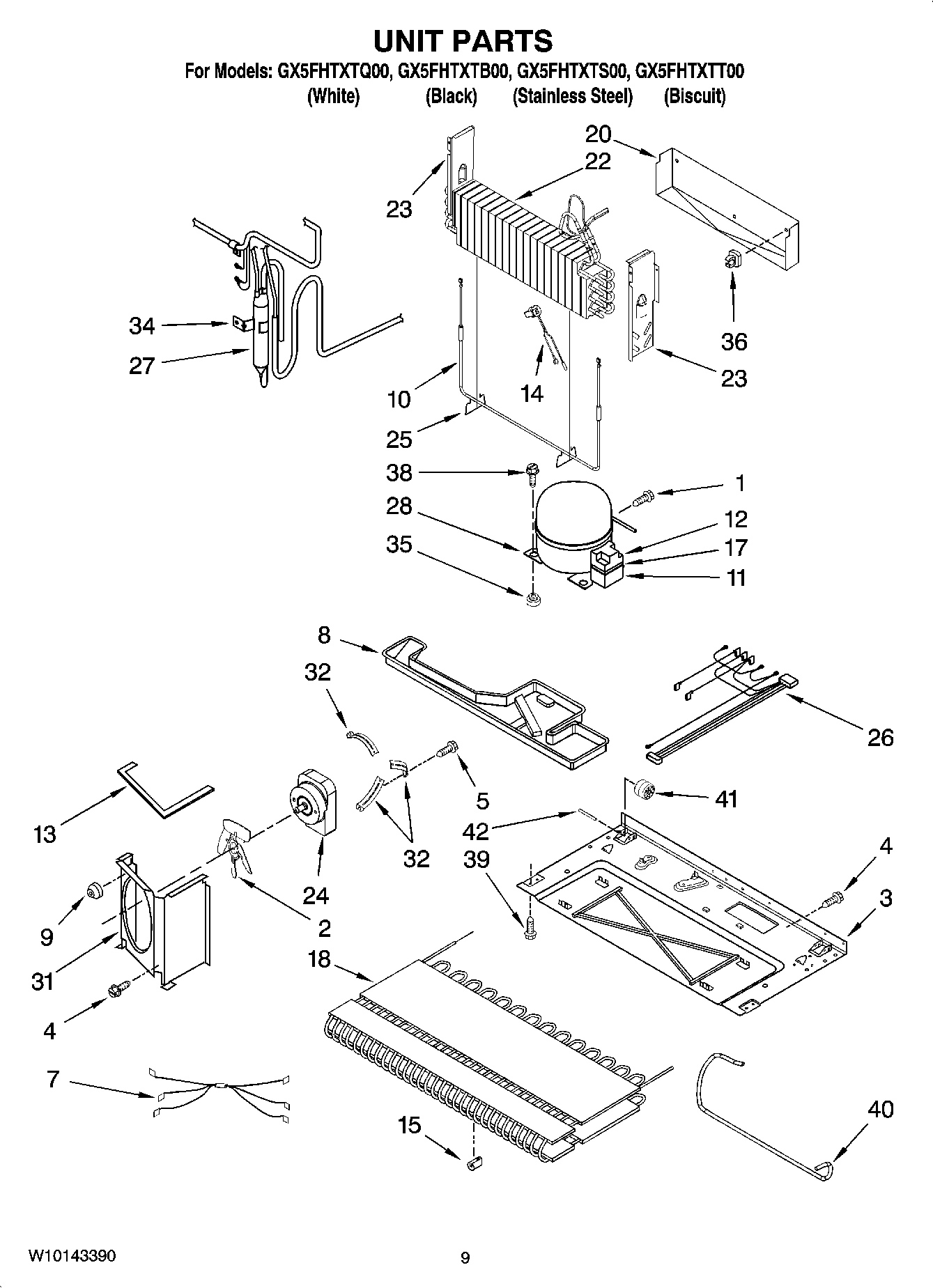

GX5FHTXTB00 05 – UNIT PARTS

GX5FHTXTB00 05 – UNIT PARTS

Written by

in

GX5FHTXTB00 05 – UNIT PARTS

Products

PositionProduct
112992301 Whirlpool Refrigerator Screw
2W10156818 Whirlpool Refrigerator Fan Blade
3Basepan
467006425 Whirlpool Refrigerator Screw
5WP67004954 Whirlpool Refrigerator Screw
7Harness, Evap Heater
8WP12579803 Whirlpool Refrigerator Drain Pan
9Grommet (3)
10WP67002493 Whirlpool Refrigerator Defrost Heater
12W10613606 Whirlpool Refrigerator Start Device Relay Overload
13WP854334 Whirlpool Air Conditioner Sealing Strip
14WP67003426 Whirlpool Refrigerator Thermostat
1567005680 Whirlpool Refrigerator Condenser Grommet
17Clip, Capacitor
18WP67006131 Whirlpool Refrigerator Condenser
20Tray, Drip
2212002041 Whirlpool Refrigerator Evaporator Replacement Kit
23Dam (Right Side)
23Dam (Left Side)
24W11613295 Whirlpool Condenser Motor
25W11673433 Whirlpool Clip
2667004955 Whirlpool Refrigerator MC Harness
26Harness, Wiring (Evap. Heater)
27WPW10143759 Whirlpool Dryer Filter
28W10309989 Whirlpool Refrigerator Compressor
31SHROUD
32WP67004953 Whirlpool Refrigerator Bracket
3410547003 Whirlpool Refrigerator Dryer Clip
35WPL 4343845
36Clip, Evap Motor
3812846902 Whirlpool Refrigerator Screw
39Screw (4)
40WP12866903 Whirlpool Refrigerator Discharge Tube
41WP67005149 Whirlpool Roller
42Following Parts Not Illustrated and Optional Parts Not Included
42VALVE, ACCESS (5/8“)
42876764 Whirlpool Refrigerator Primary Valve
42978026 Whirlpool Refrigerator Primary Valve
42978030 Whirlpool Refrigerator Valve
42WP978025 Whirlpool Refrigerator Valve
42VALVE, ACCESS (1/2“)
42978027 Whirlpool Refrigerator Primary Valve
4267006434 Whirlpool Axle Pin
42REFRIGERANT CHARGE 5.0 Ozs. (R-134A)
